Page 34
3.3 Combi Wiring Details

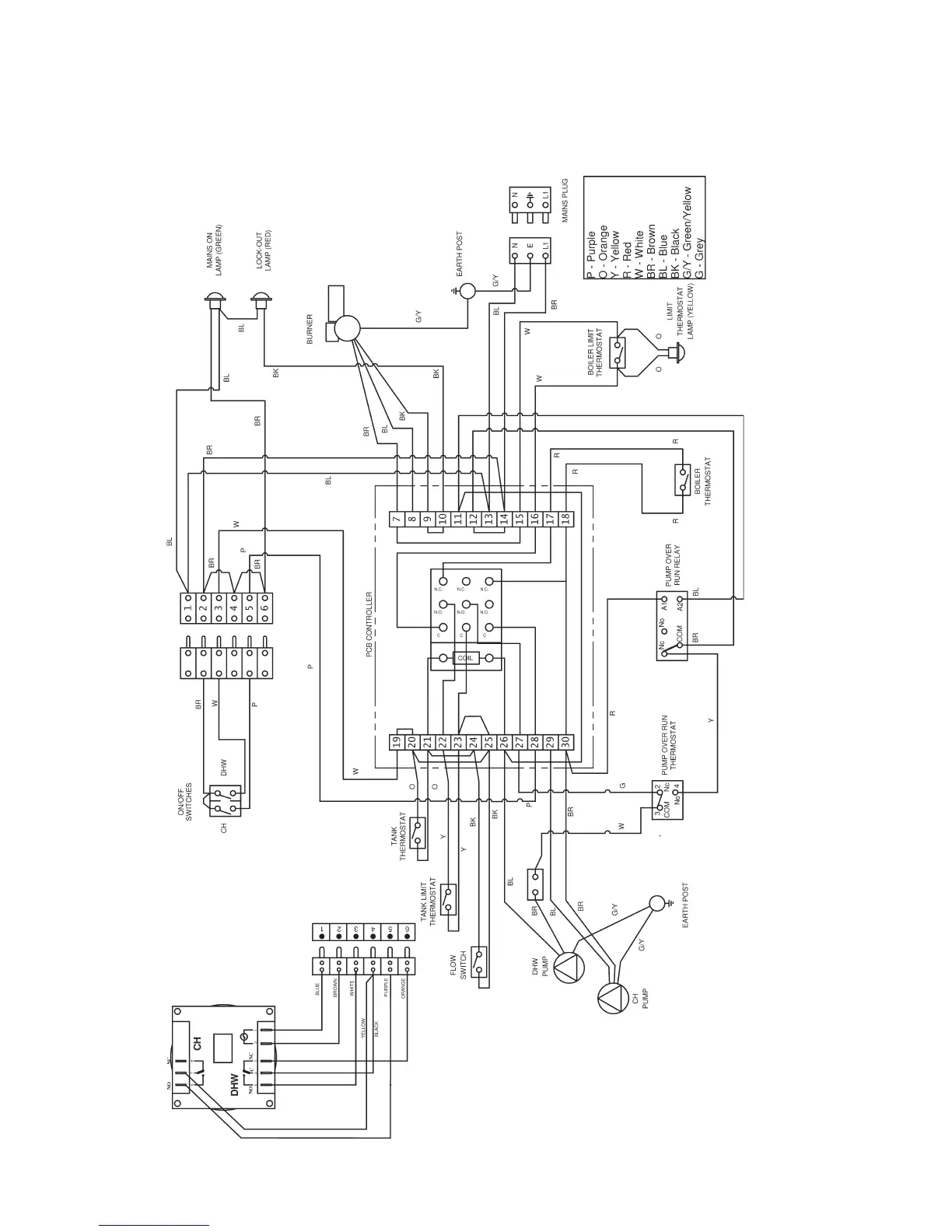

3.3.1 Wiring Diagram
The 3 pin mains plug must be supplied with a permanent live to allow the pump overrun stat and relay to operate correctly.
