6.11.4 Supplementary Temperature Sensors
Supplementary temperature sensors should be located in the pocket(s) behind the cylinder
thermostat(s). Remove the thermostat cover and base. Pass the sensor through the base
then insert into the pocket as shown in Figure 9. Anchor the cable using the clamp
provided.

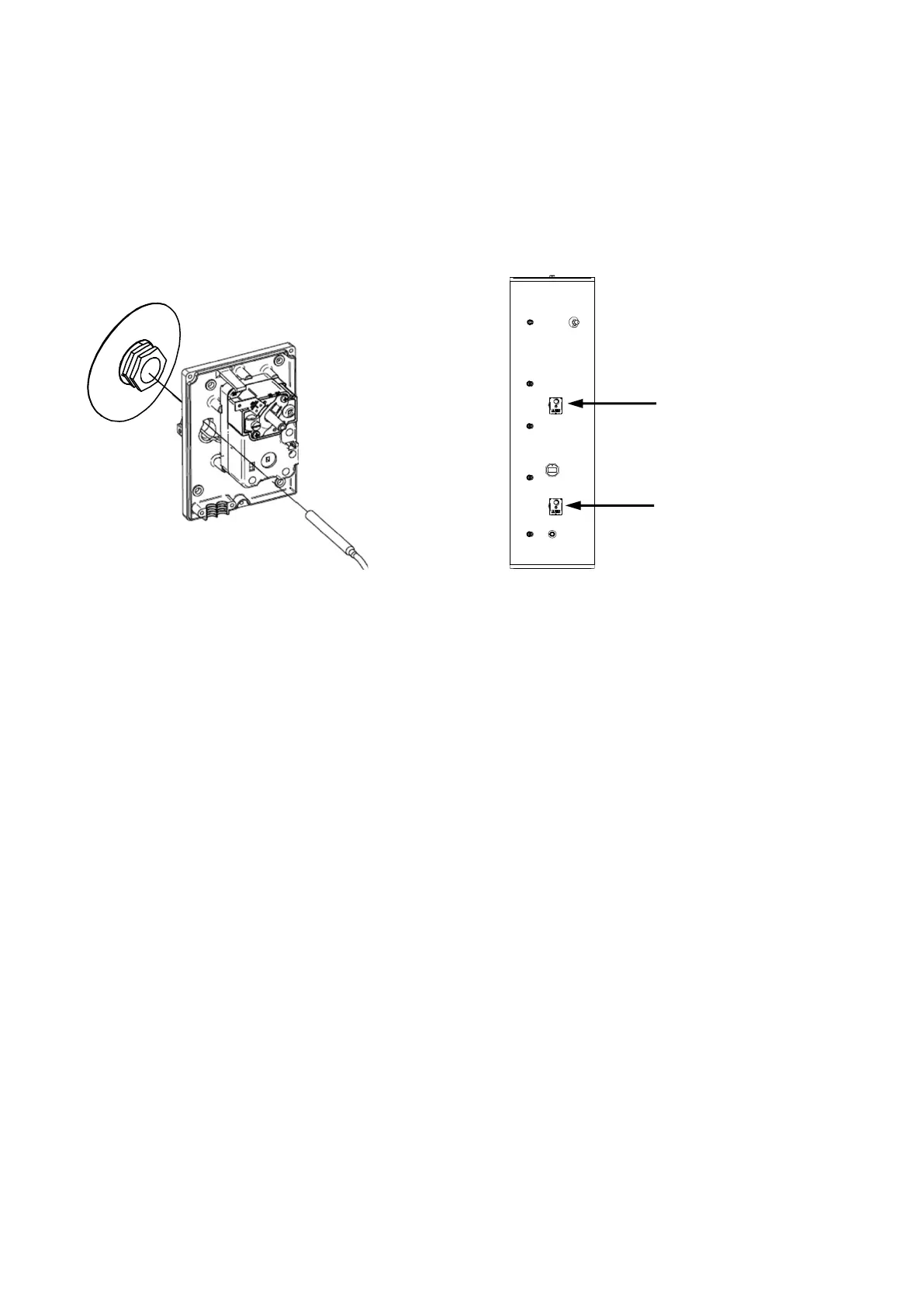

Figure 9: Supplementary temperature sensor installation
Lower sensor location
Twin Coil
Upper sensor location
(if applicable)
