Step 2 - Wiring Connections
WARNING!
The6iEmustbeinstalledbyaqualiedelectricianin accordance with
National Electrical Code.

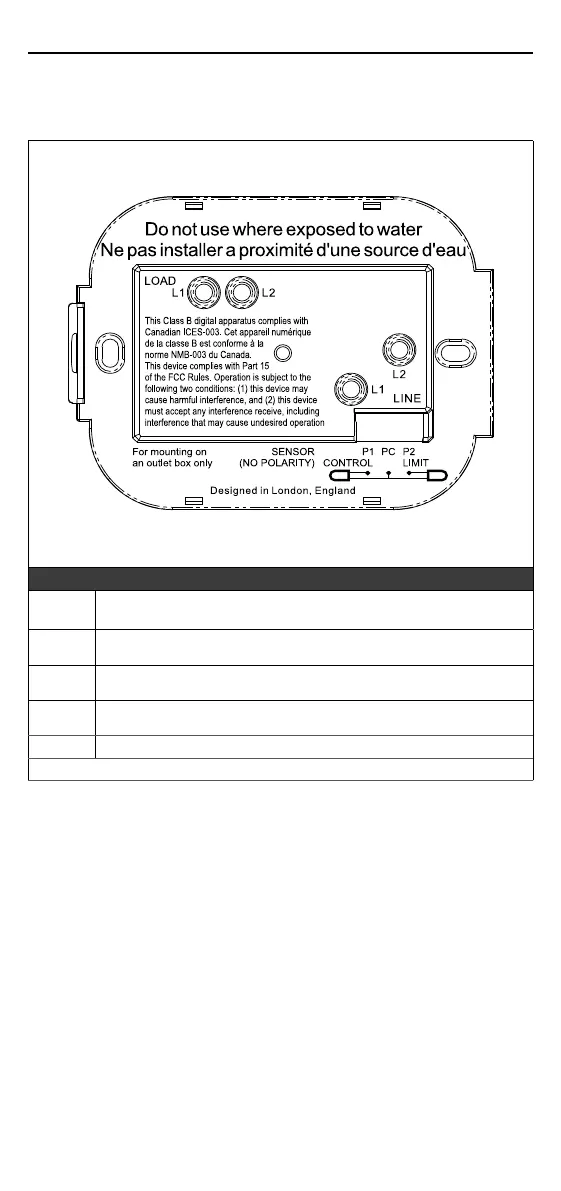

Wiring Connections
LOAD
L1 & L2
Heater Load Max.15A (1800W - 120V, 3600W - 240V)
LINE
L1
Supply Live (120 V)
LINE
L2
Supply Neutral (120 V) / Supply Live (240 V)
P1 & PC
Probe 1 - Floor/Air Control Sensor (No Polarity)
Floor or air temperature reading for scheduled control
P2 & PC Probe 2 - Limit Sensor (No Polarity)
See Table 1.0 for thermostat use cases
NOTE: The function of Probe 1, Probe 2 from Control/Limit Sensor can be
swapped in Advanced Settings; Sensors & Application.
