Warmup 6iE - Wiring Diagrams

6
Wiring Diagrams

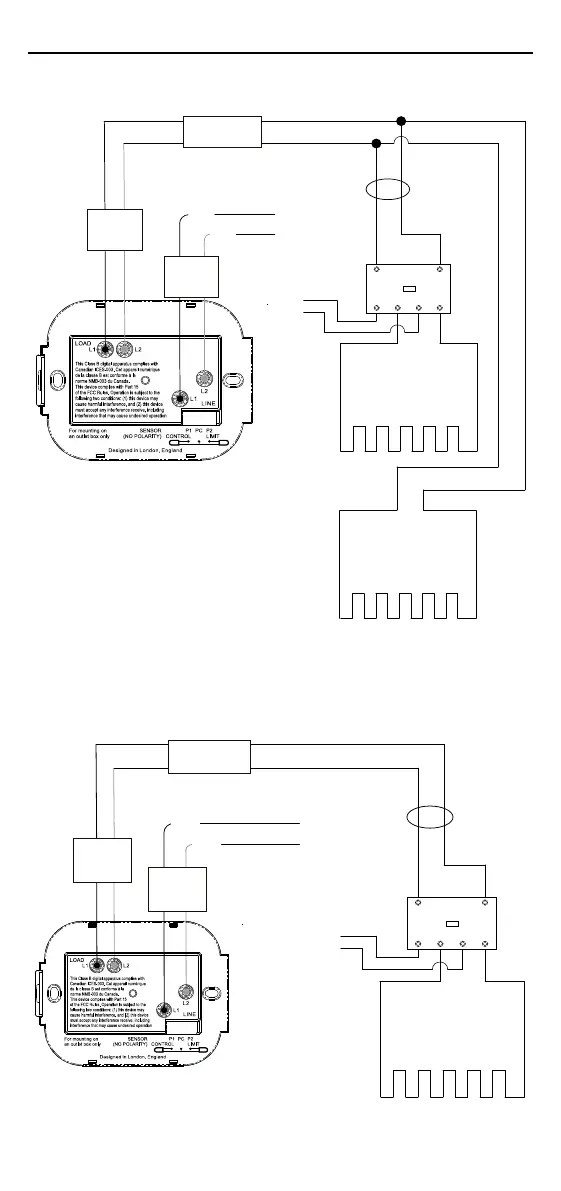

Heating Load connected to 6iE and Relay 25 - Max. 40 Amps
240V SUPPLY WITHOUT GFCI
PROTECTION
L2-LINE
Hot (240V)
Hot (240V)
L1-LINE
240V GFCI
PROTECTED SUPPLY
Hot (240V)
Hot (240V)
L1-LOAD-L2
HEATING
(MAX 3600W/
15 Amps)
L1-LINE-L2
POWER
SUPPLY
0 1
8642
Heater(s)
Max 25A
Heater(s)
Max 15A
240V
COIL SUPPLY
N.B. Heating loads connect to Relay-25
N.B. and 6iE:
Relay-25 Max load 25A
6iE Max load 15A
Total Max load 40A
Snubber
(contact suppressor)
Heating Load connected to Relay 25 - Max. 25 Amps
240V SUPPLY WITHOUT GFCI
PROTECTION
L2-LINE
Hot (240V)
Hot (240V)
L1-LINE
240V GFCI
PROTECTED
SUPPLY
240V
COIL SUPPLY
N.B. All heating loads connect to Relay-25
only, controlled by 6iE
L1-LINE-L2
POWER
SUPPLY
Hot (240V)
Hot (240V)
0 1
8642
Heater(s)
Max 25A
L1-LOAD-L2
HEATING
(MAX 3600W/
15 Amps)
Snubber
(contact suppressor)
