Warn 80360 - Parts and Tools; Parts List; Tools Required

WARN INDUSTRIES PAGE 3 80361A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
II. Tools Required
• Ratchet and Extension
• Sockets: 10mm, 14mm, 1/2”
• Wrenches: 1/2”
• Flat Blade Screwdriver

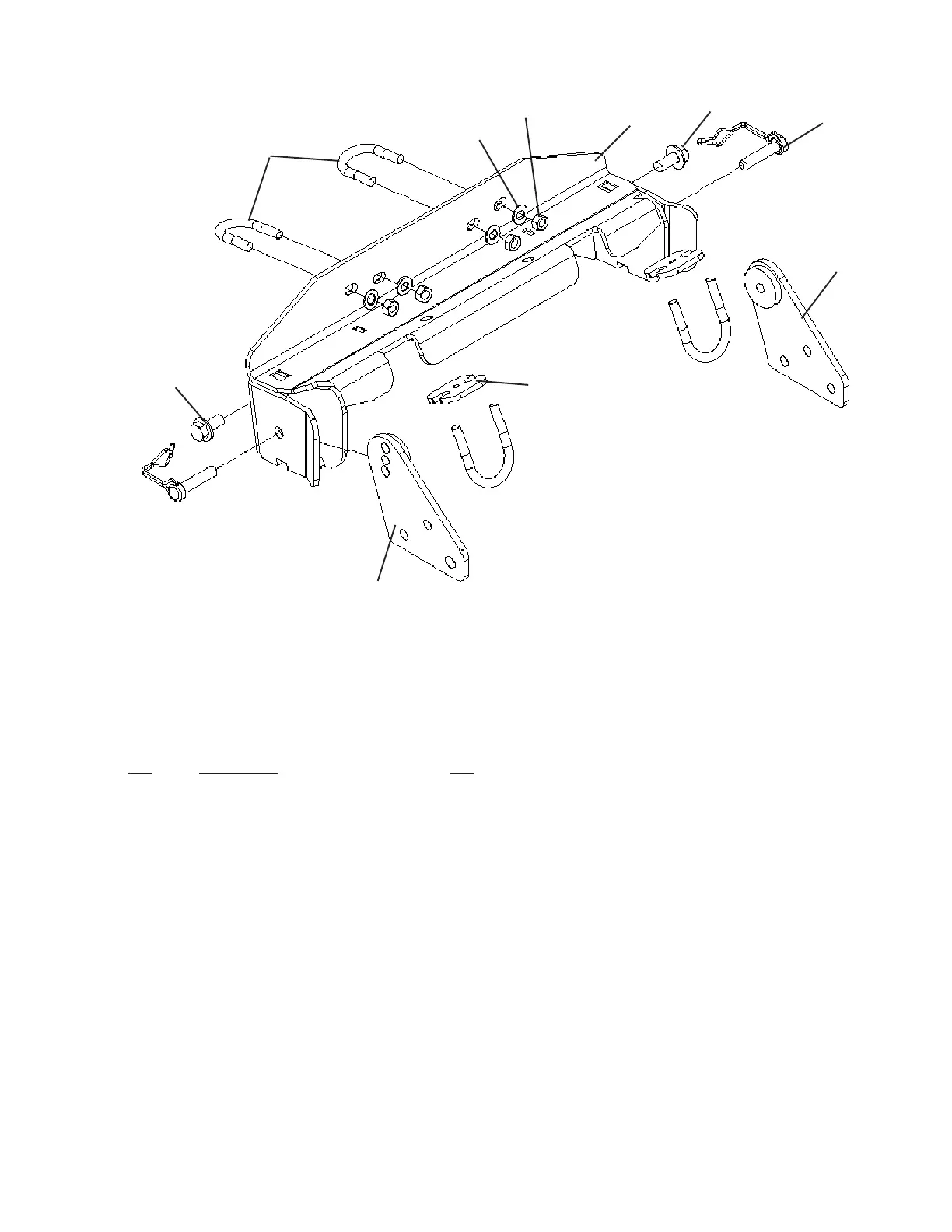

I. Parts List
Ref Description Qty
A1 Plow Mounting Plate 1
B1 5/16-18 x 1 1/8” x 1 3/4” U-bolt 2
B2 5/16” Flat Washer 4
B3 5/16-18 Lock Nut 4
B4 M10-1.25 x 20mm Flange Head 2
C1 Plow Mount Bracket, Right 1
C2 Plow Mount Bracket, Left 1
C3 Plate winch spacer 2
C4 Pin, Plow Retainer 2
C4
C3
B2
C2
B4
B3
B4
C1
A1
B1
