WARN INDUSTRIES PAGE 15 84855A2
WARNING
Avoid all moving and potentially hot components
of ATV when routing electrical cables. Avoid
areas where the wiring could be pinched when
components are reinstalled. Failure to do so can
result in product failure which can lead to vehicle
damage and operator injury or death.
3. Wiring Installation - Step Five in the Installation
and Specication Guide:
a. Route the yellow and blue electrical cables from the
winch up the left side frame tubes of the ATV, gure
15 and gure 32. Secure the cables with supplied
plastic tie straps. Avoid all moving and potentially
hot components of the ATV when routing the
electrical cables.
b. Route the winch wires (yellow and blue) from the left
side of the ATV across to the right passing in front of
the steering column and following the existing wiring
harnesses. Complete the cable routing by following
the switch lead path along the right side of the ATV
to the contactor, gure 31, gure 33, and gure 34.

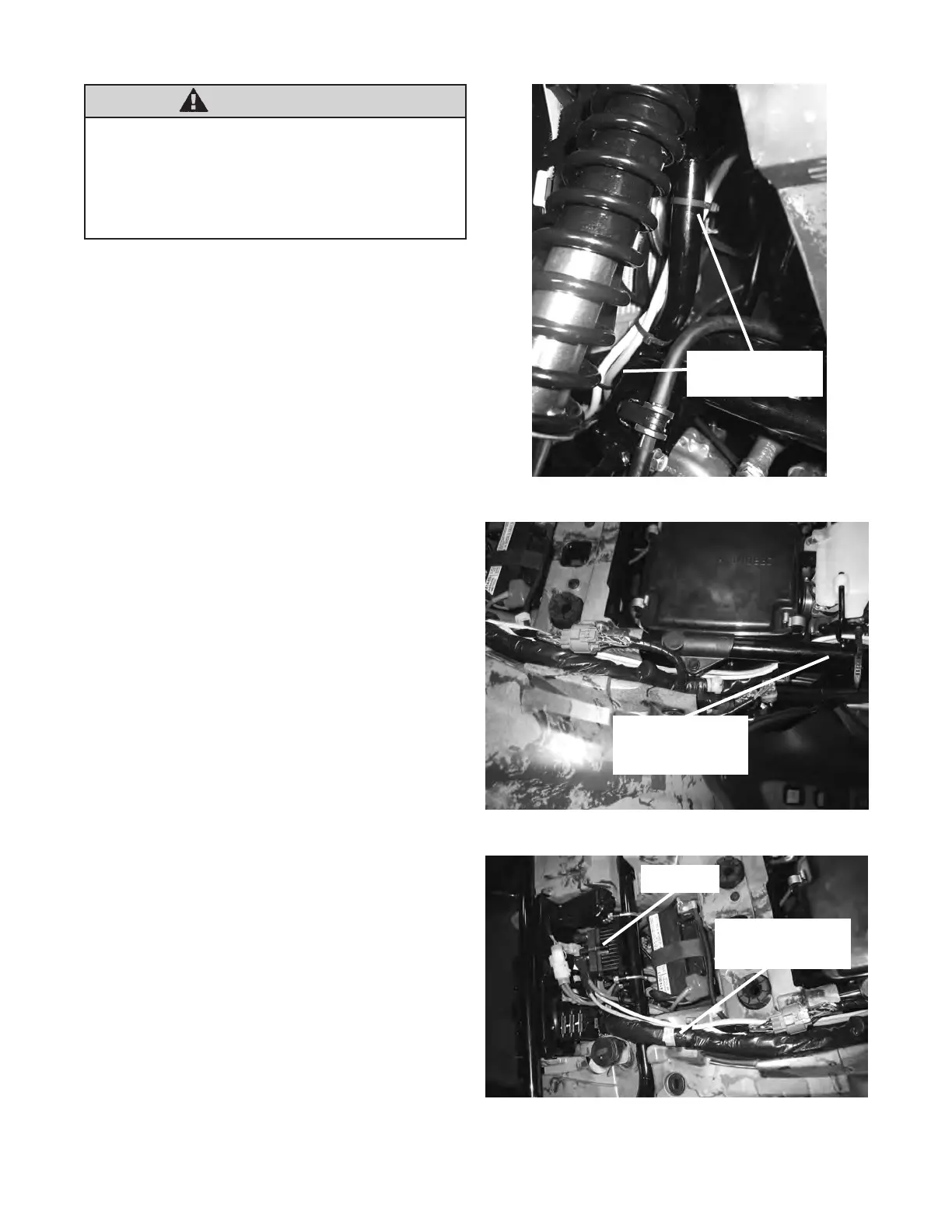

Figure 32 Winch Cables Routing
Figure 33 Routing Electrical Cables
Route Winch Cables
Along Frame Tubes
Route Cables Along
Frame Tube and Exist-
ing Wire Harness
Route Cables Along
Existing Wire Harness
Contactor
Figure 34 Electrical Cables Routing at Contactor
