©2012 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc. 5 90326A0

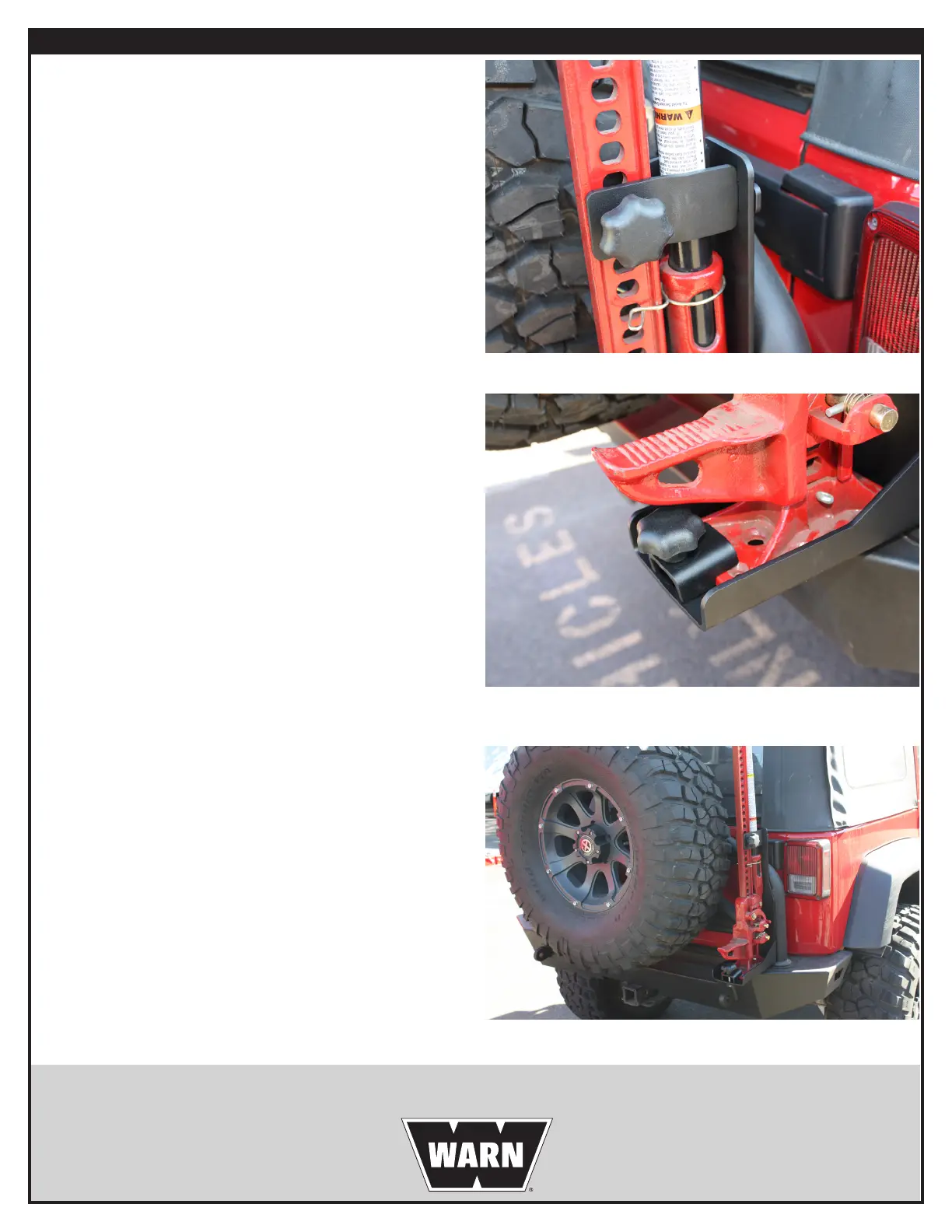

4. Figure 4 shows the bracket attached from the previous step
with the threaded knob inserted.
5. Remove the threaded knob and place the jack in the mount
as shown in Figure 5. Insert the bracket and the other
threaded knob. You will note that the bracket has a recess
notch in on one end that gets positioned over the foot of
the jack.
6. Step 6 shows nal assembly of the jack attached to the
mount.
INSTALLATION INSTRUCTIONS
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR EQUIPMENT DAMAGE. READ AND UNDERSTAND ALL
SAFETY PRECAUTIONS AND OPERATING INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS PRODUCT.
Figure 4
Figure 5
Figure 6
