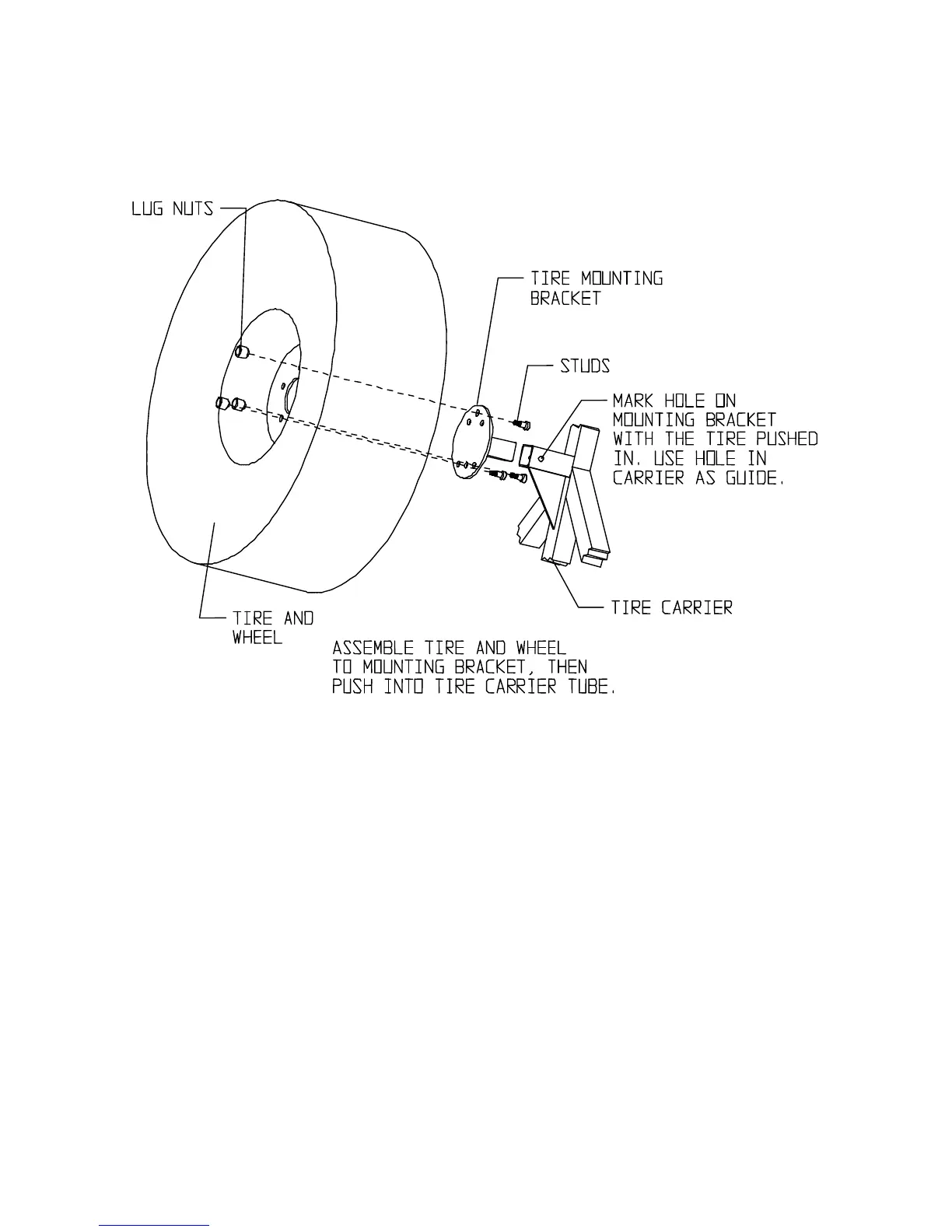

Figure 5
15. Remove the tire and wheel from the mounting bracket. Using the marked location
on the tire mounting bracket in the previous step, measure ¼” back toward the wheel
mounting surface. This will give the tire pre-load when mounted. Using a ½” drill bit,
drill a hole through both sides of the tire mounting bracket at the marked location.
Be sure to re-mark the hole ¼” closer to the tire mounting surface for pre-load. See
Figure 6.
