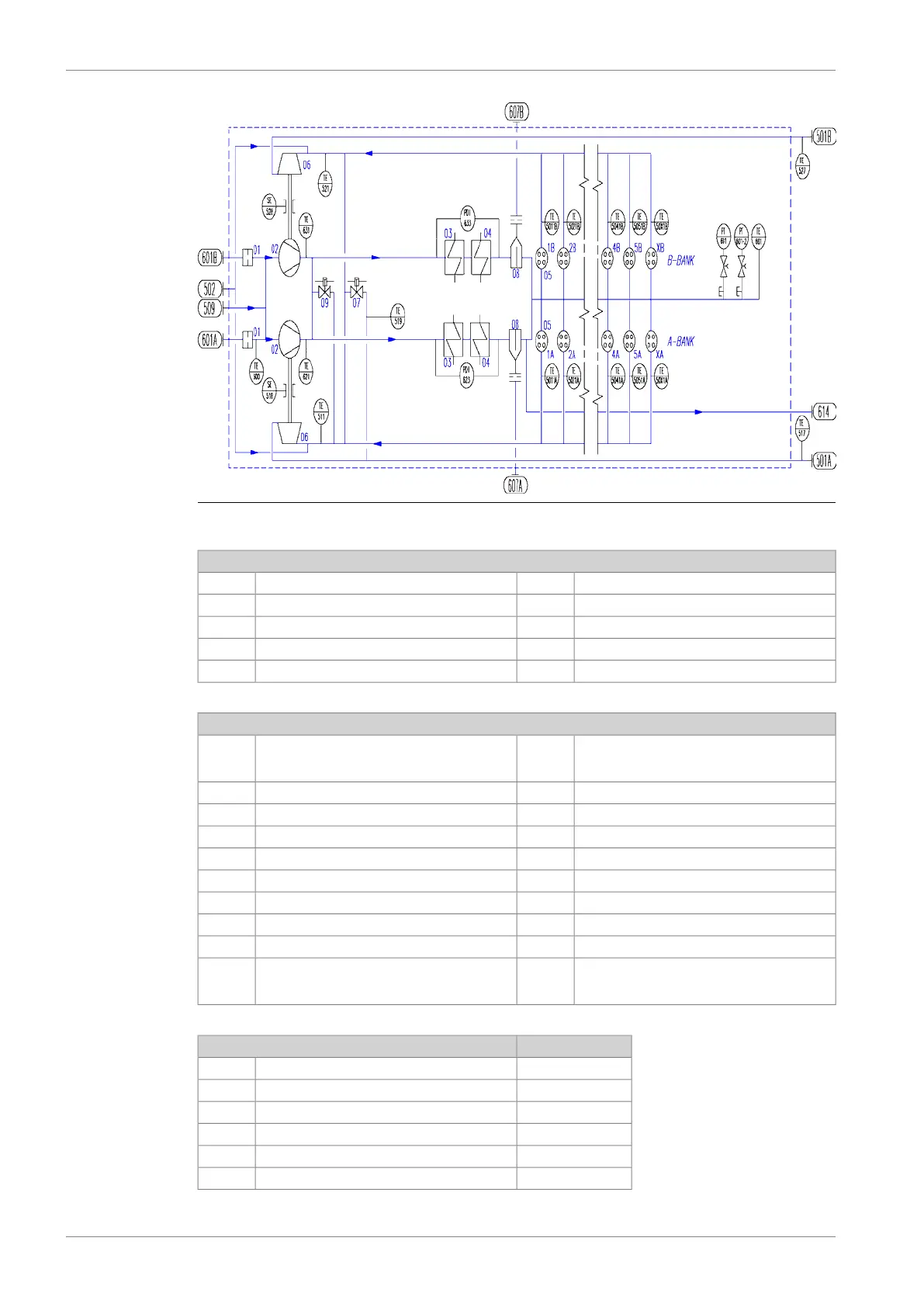

Fig 11-2 Charge air and exhaust gas system, V-engines (DAAR011167)
System components
Turbine06Air filter01
Wastegate valve (CV519)07Compressor02
Water mist catcher08Charge air cooler (HT)03
By-pass valve (CV643)09Charge air cooler (LT)04
Cylinders05
Sensors and indicators
Exhaust gas temperature after cylinder head (B-bank)TE5011B
/
TE50X1B
Exhaust gas temperature, TC inlet (A-bank)TE511
Charge air pressure, engine inletPT601Charge air pressure, engine inletPT601-2
Charge air temperature, engine inletTE601Exhaust gas temperature, TC outlet (A-bank)TE517
Pressure difference over CAC (transportable) (A-bank)PDI623Turbocharger A speedSE518
Charge air temperature, CAC inlet (A-bank)TE621Exhaust gas temperature after wastegateTE519
CAC pressure difference, A-bankPDI623Exhaust gas temperature, TC inlet (B-bank)TE521
Charge air temperature, CAC inlet (B-bank)TE631Air temperature, TC inletTE600
Pressure difference over CAC (transportable) (B-bank)PDI633Exhaust gas temperature, TC outlet (B-bank)TE527
x = cylinder numberTurbocharger B speedSE528
Exhaust gas temperature after cylinder head (A-bank)TE5011A
/
TE50X1A
SizePipe connections
DN600Exhaust gas outlet, A-bank501A
DN600Exhaust gas outlet, B-bank501B
DN32Cleaning water to turbine502
OD18Cleaning water to compressor509
Air inlet to turbocharger, A-bank601A
Air inlet to turbocharger, B-bank601B
11-2 DAAB605814
Wärtsilä 46F Product Guide11. Exhaust Gas System
