Wartsila 46F - Engine Room Layout; Crankshaft distances

18. Engine Room Layout
18.1 Crankshaft distances
Minimum crankshaft distances are to be arranged in order to provide sufficient space between
engines for maintenance and operation.
18.1.1 In-line engines

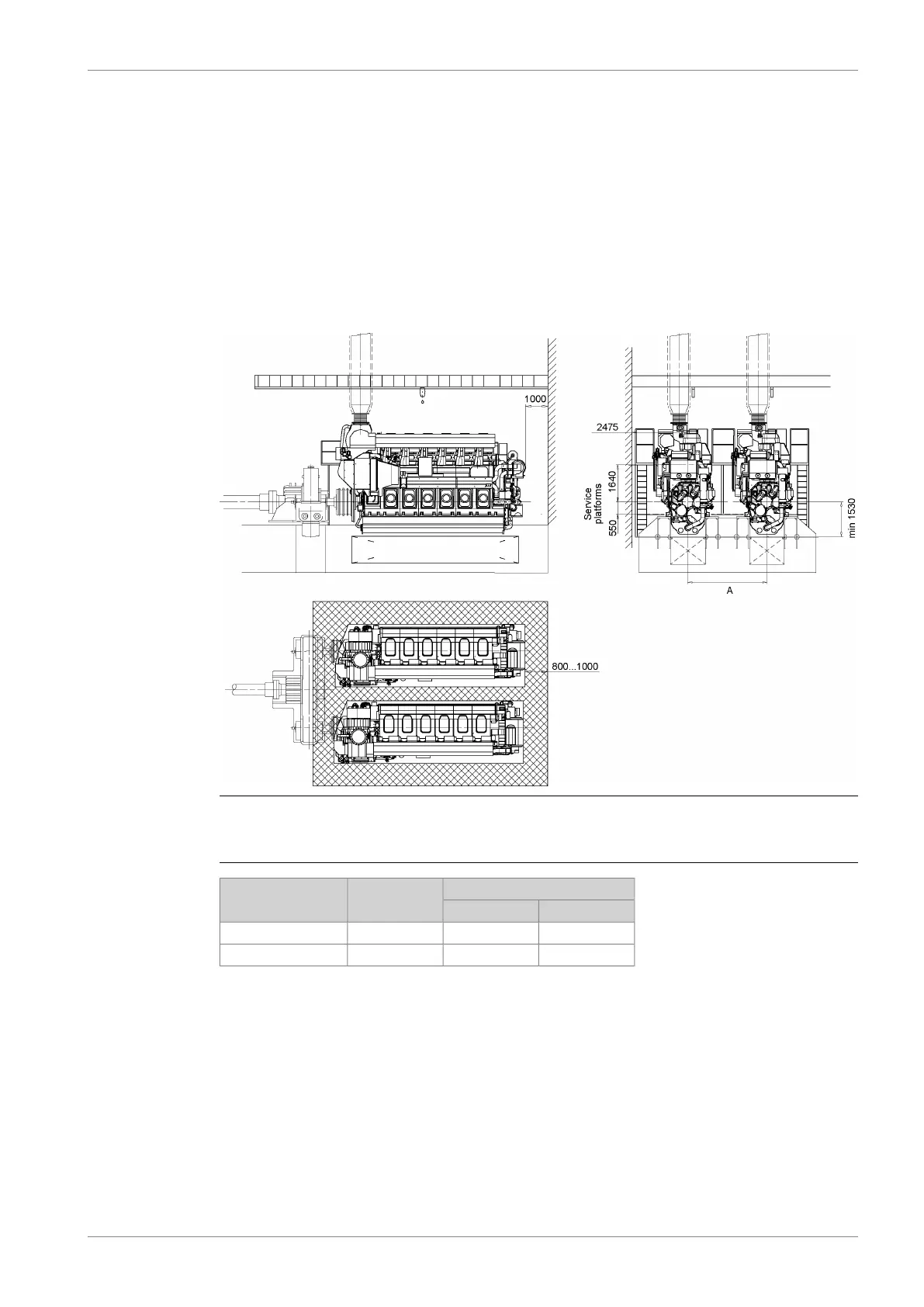

Fig 18-1 Engine room arrangement, in-line engines (DAAE044913B)
Table 18-1 Min. crankshaft distance
A [mm]
TC typeEngine type
RecommendedMin
34003200TPL 71C6L46F
37003500TPL 76C7L, 8L, 9L46F
DAAB605814 18-1
