7.3 External lubricating oil system

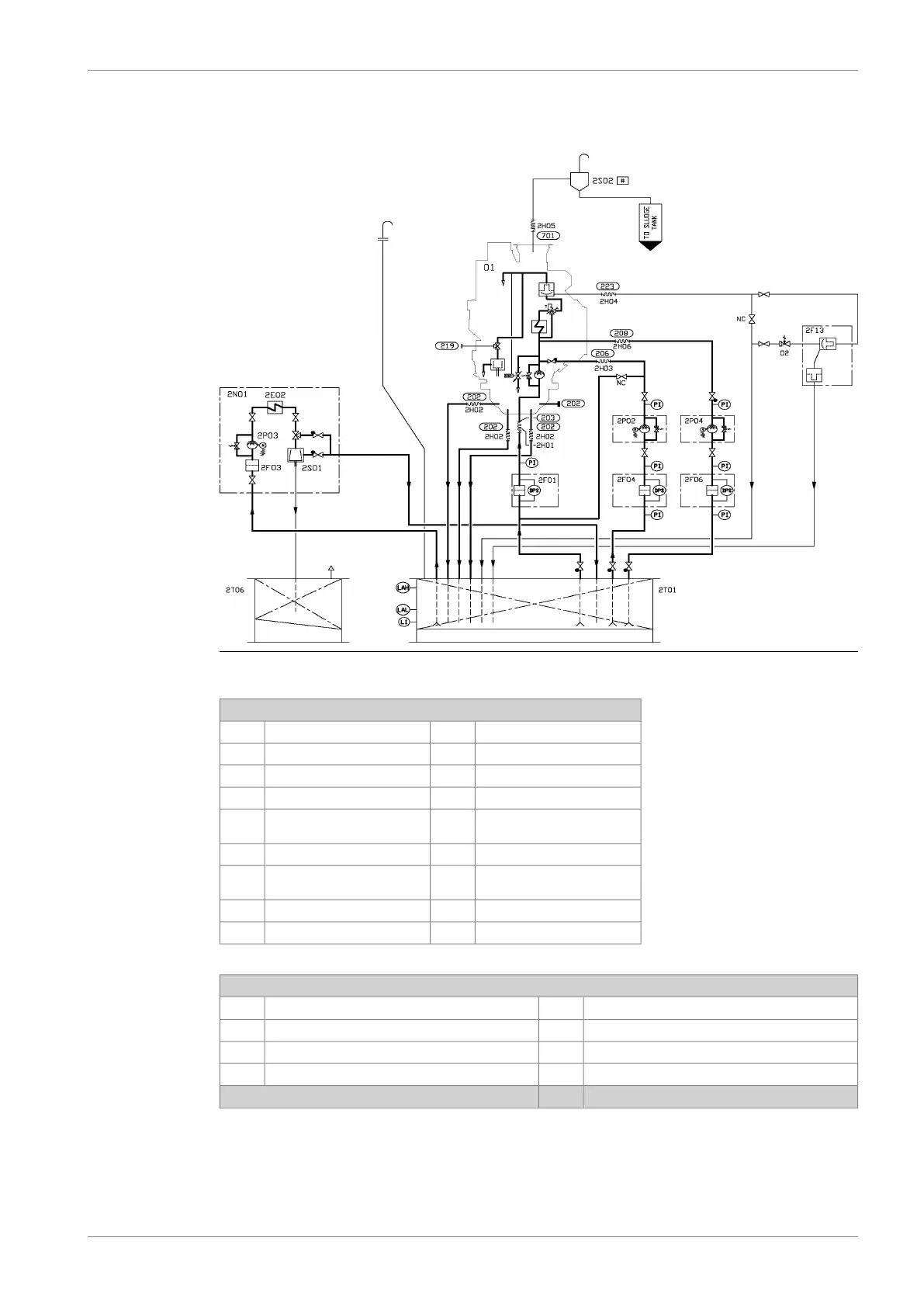

Fig 7-3 External lubricating oil system, engine driven & stand by pumps (DAAF423923)
System components
Separator unit2N01Diesel engine Wärtsilä L46F01
Pre-lubricating oil pump2P02Pressure control valve02
Separator pump2P03Flexible pipe connections2H0X
Stand-by pump2P04Heater (Separator unit)2E02
Separator2S01Suction strainer (Main lubricating
oil pump)
2F01
Condensate trap2S02Suction filter (Separator unit)2F03
System oil tank2T01Suction strainer (Pre lubricating
oil pump)
2F04
Sludge tank2T06Suction strainer (Stand by pump)2F06
Automatic filter (LO back flush)2F13
Pipe connections
Lubricating oil from electric driven pump208Lubricating oil outlet
*)
202
Flushing oil from internal automatic filter223Lubricating oil to engine driven pump203
Crankcase air vent701Lubricating oil from priming pump206
LO Sample219
*)
Two outlets in each end are available
DAAB605814 7-5
7. Lubricating Oil SystemWärtsilä 46F Product Guide
