6.2 Internal fuel oil system

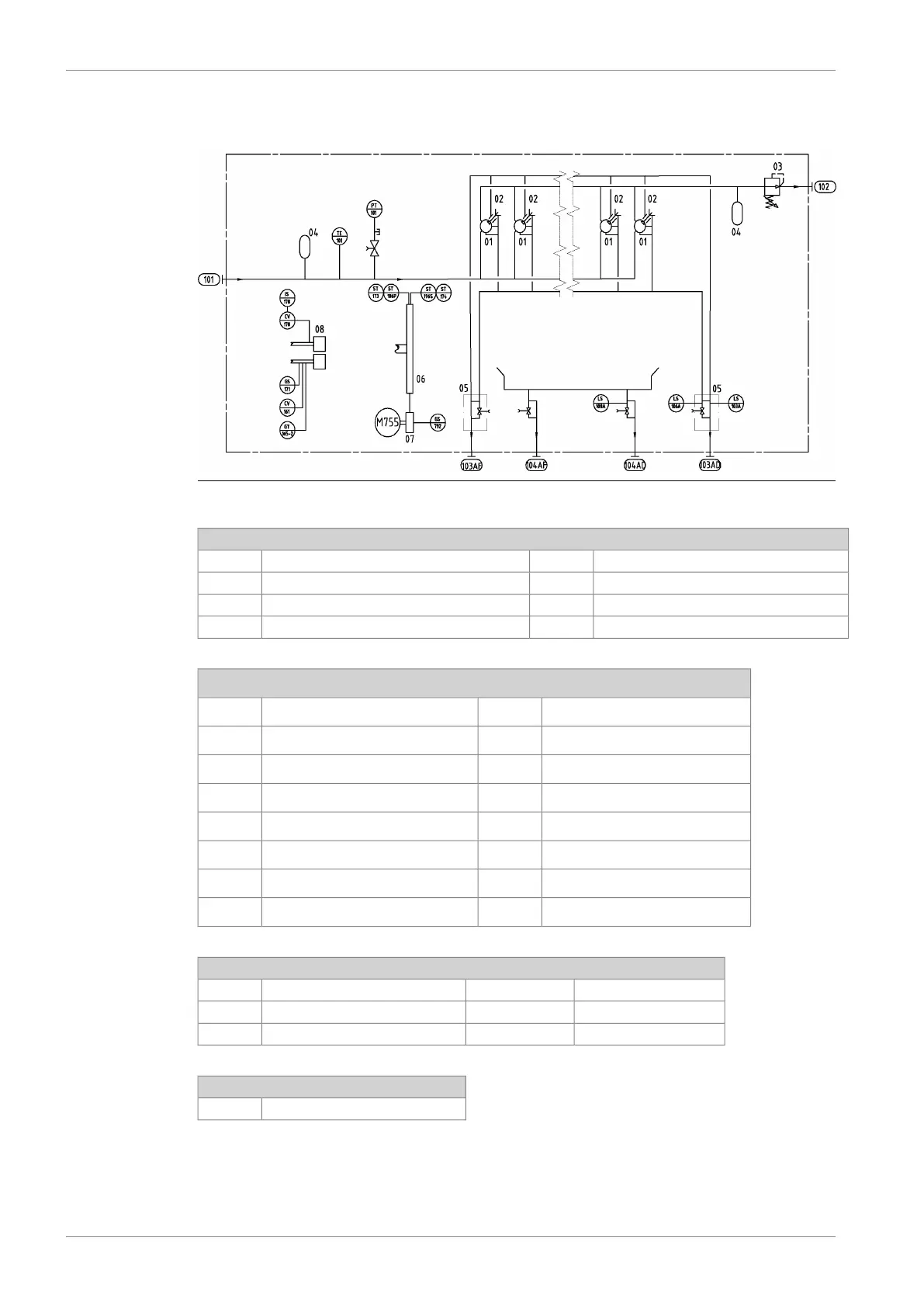

Fig 6-1 Internal fuel system, in-line engine (DAAF424885)
System components
Fuel oil leakage collector05Injection pump01
Flywheel06Injection valve02
Turning device07Pressure control valve03
Fuel and timing rack08Pulse damper04
Sensor and indicators
Timing rack controlCV178Fuel oil pressure, engine inletPT101
Timing actuator driver not readyIS178Fuel oil temperature, engine inletTE101
Engine speed 1ST173Fuel oil leakage, clean primaryLS103A
Engine speed 2ST174Fuel oil leakage, clean secondaryLS106A
Engine speed, primaryST196PFuel oil leakage, dirty fuel DELS108A
Engine speed, secondaryST196SStop lever in stop positionGS171
Fuel rack positionGT165-2Turning gear engagedGS792
Fuel rack controlCV161
Pipe connections
Leak fuel drain, clean fuel DE103ADFuel inlet101
Leak fuel drain, dirty fuel FE104AFFuel outlet102
Leak fuel drain, dirty fuel DE104ADLeak fuel drain, clean fuel FE103AF
Electrical Instruments
Electric motorM755
6-8 DAAB605814
Wärtsilä 46F Product Guide6. Fuel Oil System
