Sensors and indicators
Big end bearing temperatureTE7016A..7096ALube oil pressure, engine inletPT201
Lube oil pressure, TC inletPT271Lube oil temperature, engine inletTE201
Lube oil temperature, TC outletTE272LO pressure, engine inletPTZ201
Crankcase pressurePT700Control oil pressure after VIC ValvePT291A
Vic control valveCV381Control oil pressure after half VIC ValvePT294A
Half vic activationCV382Lube oil temperature, LOC inletTE231
Main bearing temperatureTE700...710
Pipe connections
Flushing oil from automatic filter223Lubricating oil outlet at FE A-bank (from oil
sump)
202 AF
Crankcase air vent701Lubricating oil outlet at FE B-bank (from oil
sump)
202 BF
Lube oil inlet (to manifold)201Lubricating oil outlet at DE A-bank (from oil
sump)
202 AD
Lube oil from eldriven pump208Lubricating oil outlet at DE B-bank (from oil
sump)
202 BD
Lube oil to external filter209Lubricating oil inlet to engine driven pump203
Lube oil from cooler212Lubricating oil from priming pump206
Lube oil sample219

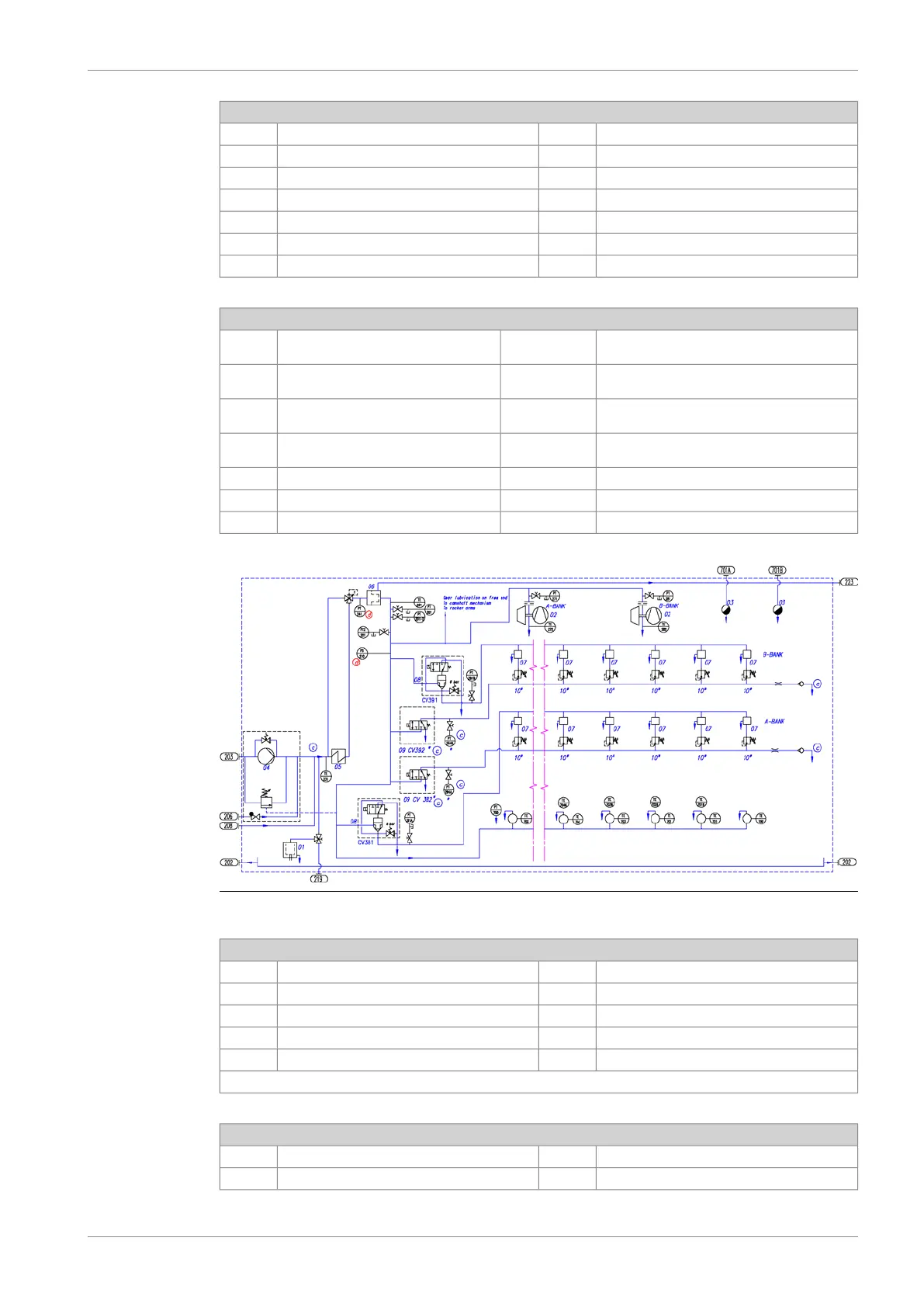

Fig 7-2 Internal lubricating oil system, V-engine (DAAR011169D)
System components
Lubricating oil automatic filter06Centrifugal filter (for indicating)01
VIC - Variable Inlet valve Closing*07Turbocharger02
VIC - Control valve*08Crankcase breather03
Vic-Half VIC Activation©09Main lubricating oil pump (engine driven)04
Pressure valve for 3-Timing VIC©10Lubricating oil cooler05
©* If engine is equipped with 3-Timing VIC
Sensors and indicators
VIC control valve, A-bankCV381Lube oil pressure, engine inletPT201
Lube oil pressure, TC A inletPT271Lube oil pressure, engine inletPT201-2
DAAB605814 7-3
7. Lubricating Oil SystemWärtsilä 46F Product Guide
