Motor and motor control
Repairs
Repair work on the machine should only be
done by specially trained personnel.
Motor replacement
Disassembly
1. Take down power from the machine.
2. Remove the rear cover.
3. Undo the bracket for the drain hose connec-
tor from the lower rear piece, then remove the
rear cover.
4. Undo the ground connection from the motor.
5. Remove the drive belt by pulling the belt
towards you while rotating the drum by hand.
6. Undo the motor cable from motor.
7. Lock the motor in place to avoid it from falling
when lifting it out.
8. Undo and remove the two motor mounting
bolts.
9. Lift out the motor.
10. Replace the sensor and magnet from the old
motor into the new one.
Assembly
1. Fit the new motor without locking the moun-
ting bolts.
2. Fit the drive belt and adjust the belt tension
with the tensioner on one side of the motor.
Se section Adjustments - Drive belt tension
for details.
3. Connect the new motor to the cable and use
straps to secure the cable.
4. Connect the motor cable to the motor.
5. Fit the lower rear piece and secure the drain
hose connection with screws.
6. Fit the upper rear piece.
7. Connect the voltage supply and verify that the
motor operates normally.
8

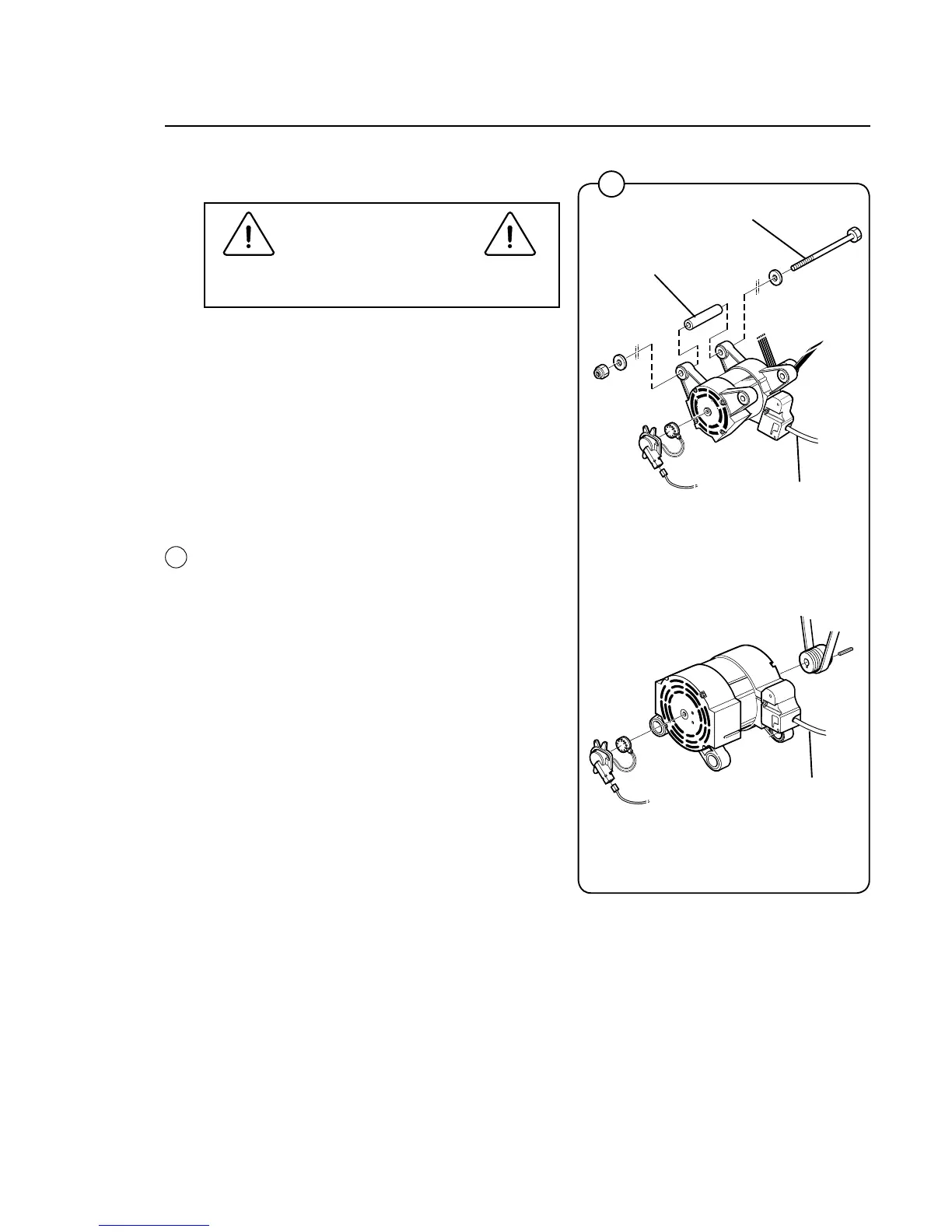

Motor cable
Mounting bolt
Spacer
EX – model
SU and W – model
Motor cable
