Motor and motor control
1
6565, 6660
Description
Motor
The motor is fitted in a bridge carrier under the
outer drum. It drives the washing drum using a
drive belt.
The motor is frequency-regulated and is con-
trolled by a microcomputer control. The vari-
ous speeds for normal operation, distribution
speeds and extraction as well as acceleration/
retardation can be controlled with a high de-
gree of precision.
The motor winding is protected against over-
load due to the fact that the motor control unit
monitors the winding resistance of the motor.
The motor is connected directly to the motor
controller via a cable with quick connectors.
This cable contains two fuses and a VDR-resis-
tance. The size of the fuses are different depen-
ding on machine size.
EX618, EX625 10A
EX630 15A
EX645, EX660, EX677 20A
SU/W620, SU/W625,
SU/W630 10A
SU/W645 15A
SU/W660, SU/W677 20A

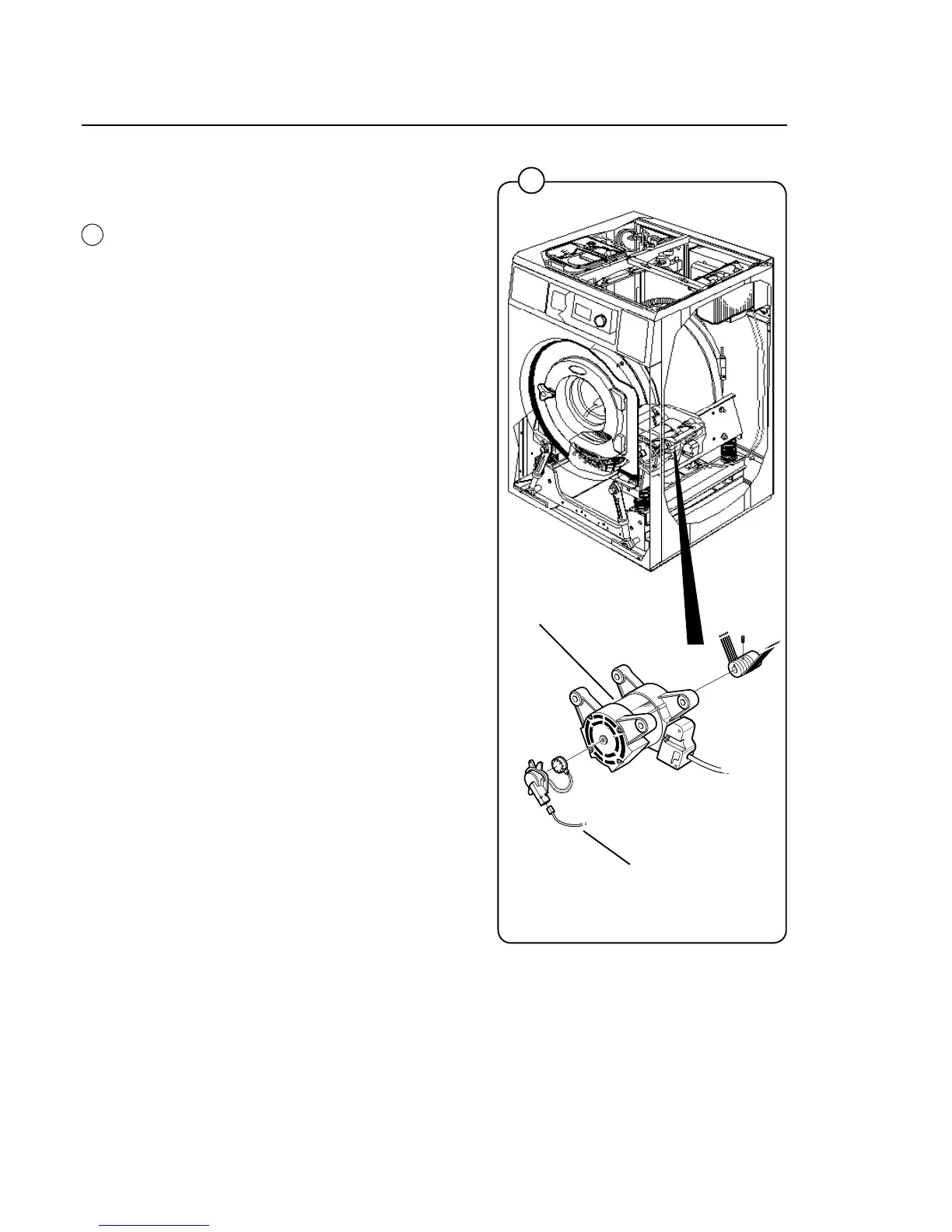

Motor
Rotation sensor B3
1
