Installation
26
1295
1835
1836
0958

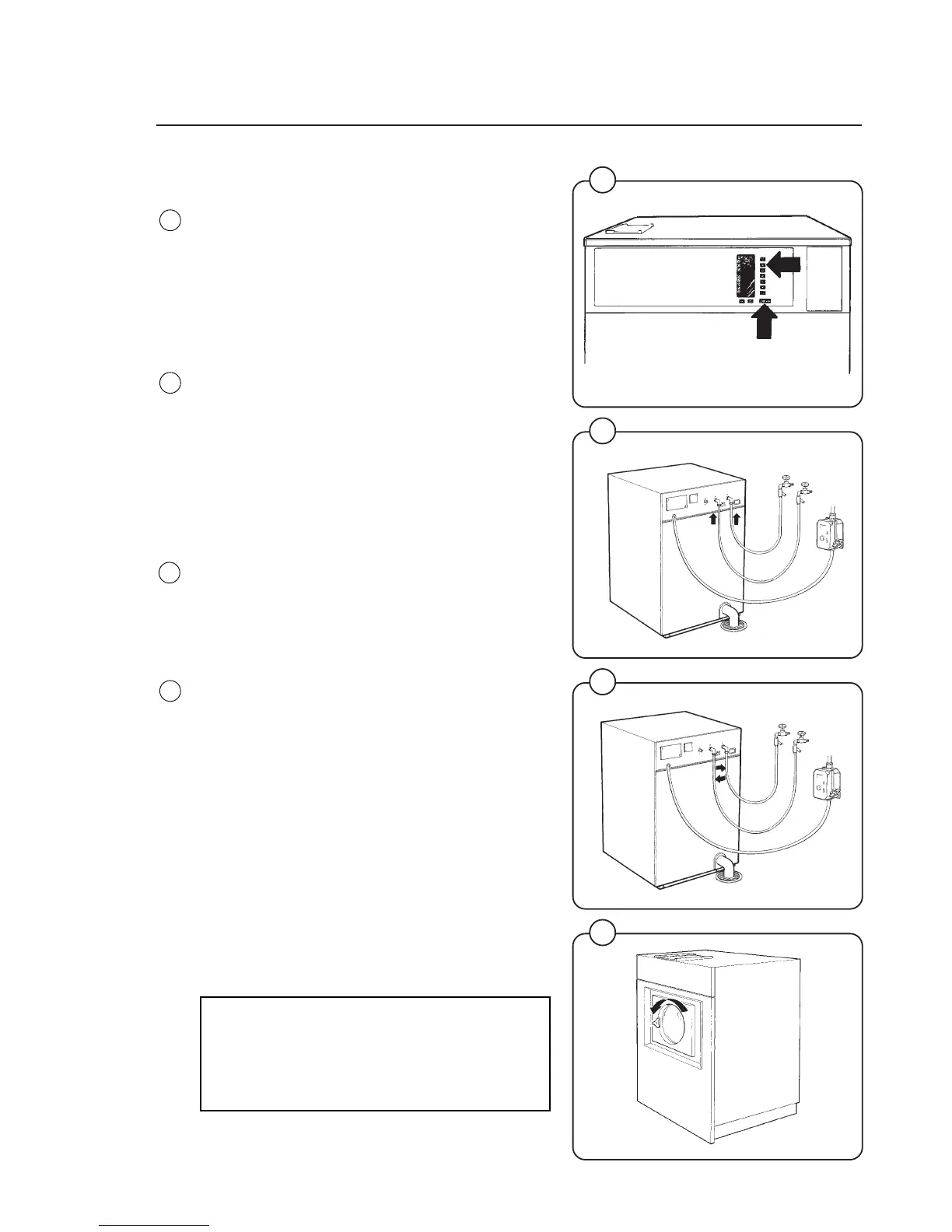

Function control check-out list
In the machine cylinder, you will find the warranty
registration card, a copy of the warranty policy
and other pertinent material. The warranty card
should be completed and sent to Wascomat. All
other items should be placed in a safe place for
future reference.
The machine should be cleaned when the instal-
lation is completed, and checked out as detailed
below without loading the machine with fabrics:
1. Check the incoming power for proper voltage,
phase and cycles.
2. Open manual shut-off valves to the machine.
3. Turn on electric power.
4. Check the door safety interlock as detailed on
page II of this manual.
5. Select the HEAVY SOIL program and then
press the "ON" button for power to the
machine.
6. Run through a complete cycle, checking for
water temperature, drain operation and extract
direction. To advance the timer, press the
START button and hold down until the
indicator arrow reaches the desired part of the
cycle.
7. When the program is in the Break cycle, hot
and cold water should be entering the
machine.
Turn the program selector to MEDIUM SOIL.
The program will rapid advance to the Suds
position and hot water should now enter.
If cold water comes in, the hoses are
improperly connected. Reverse hot and cold
water hoses.
8. Machine must spin in a counter-clockwise
direction, as seen from the front, during
extraction. If it does not, reverse lines L1 and
L3 on 3-phase machines.
NOTE
All machines are factory tested prior to
shipment. Occasionally, some residual
water may be found when the machine is
installed.
24
25
27
Fig.
24
Fig.
25
Fig.
26
Fig.
27
13
