35
Mechanical and electrical design
60
1182

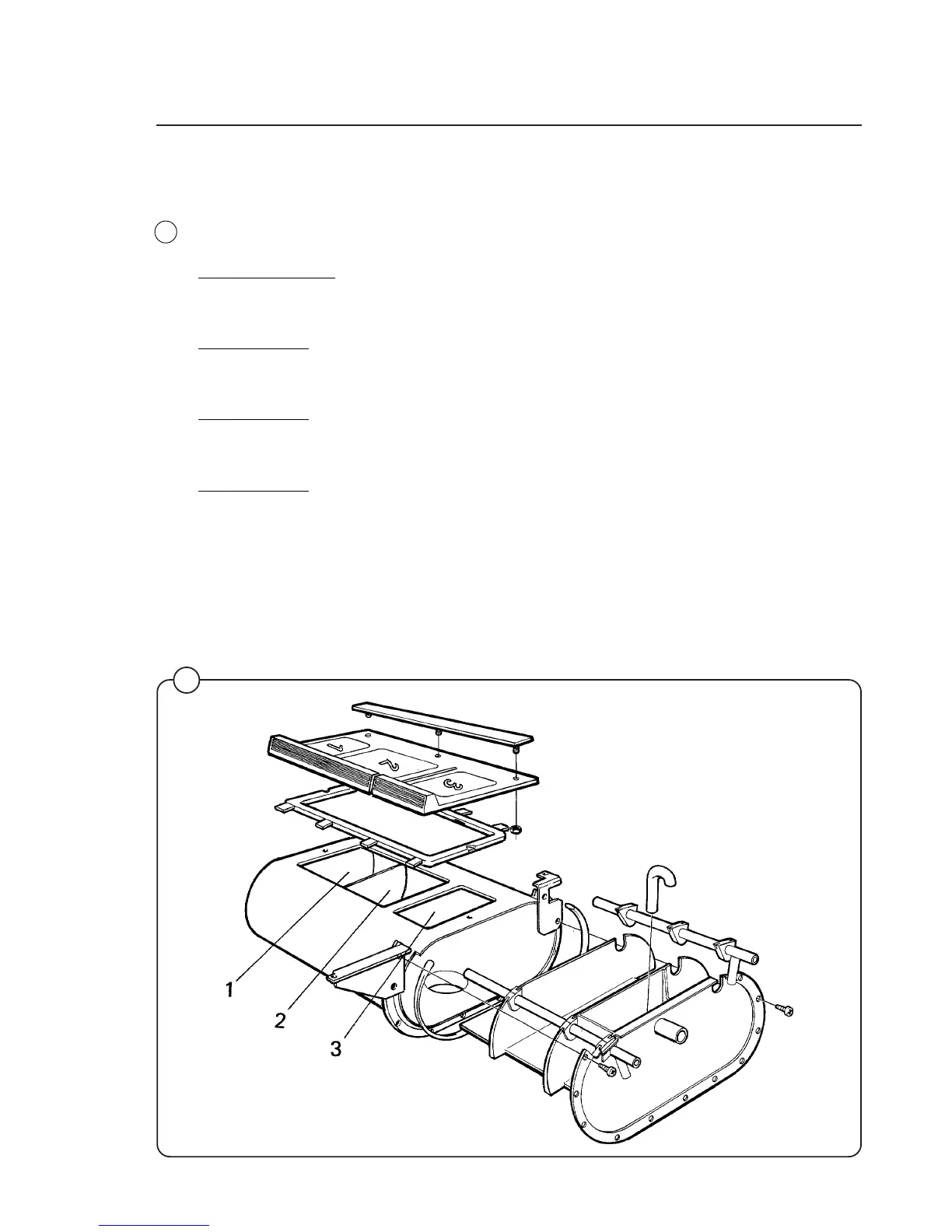

Soap supply box
The three-compartment soap supply box is located at the top of the machi-
ne. Viewed from the front, the compartments marked with figures 1, 2 and 3
are used as follows:
For liquid Supplies:
Compartment 2 only is used in conjunction with a top mount supply
manifold. See page 10 and 11 for installation instructions.
Compartment 1
This compartment is used for adding detergent to the wash and is flushed
down when supply 1 is shown.
Compartment 2
This compartment is used for adding supplies to the wash and is flushed
down when supply 2 is shown.
Compartment 3
The small compartment is used for adding fabric softener to the wash and
is flushed down when supply 3 is shown.
Fig.
60
