X93: Input from level guard
If the input indicates “Water in drum” when the
door is not locked, the door cannot be locked.
The LEDs then show the error code ● ● ❍.
Input voltage Function X93
5 V DC: Water in drum (level guard open)
0 V: Drum empty (level guard closed)
X94: Input from motor control
If the input indicates “Motor operating”, the door
cannot be locked. The LEDs then show the error
code ❍ ● ●.
The input signal from X94 is compared with the
signal from the rotation sensor B3 (input X95).
If the motor signal is operating, but the rotation
sensor does not provide a signal, the error code
● ❍ ❍ is shown.
If the rotation sensor indicates motor rotation
when there is no motor signal, the error code
❍ ● ❍ is shown.
Input voltage Function X94
5 V DC: Motor not operating (input closed)
0 V: Motor operating (input open)

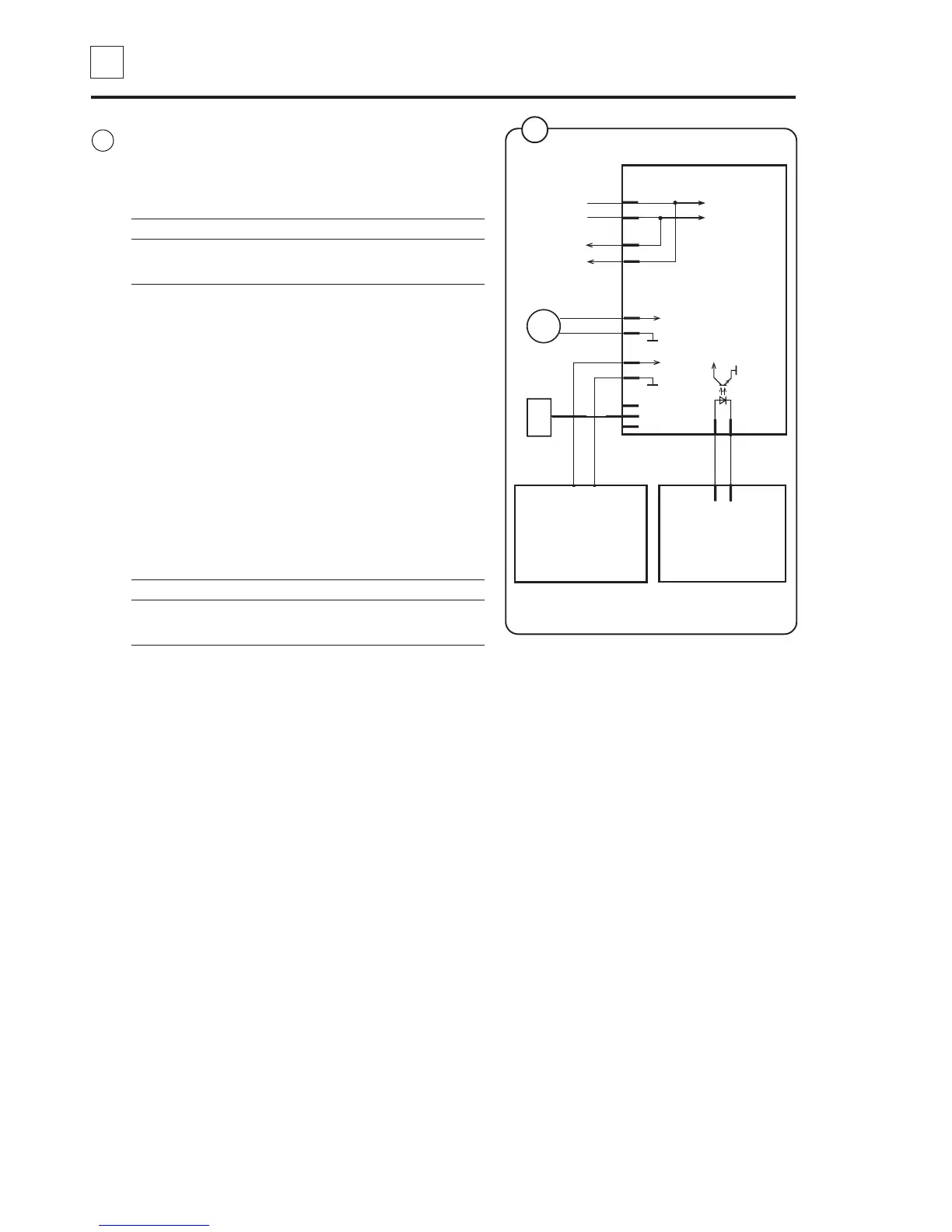

Door lock control A31
X90
X91
1
2
1
2
200-
240 V
Voltage
supply to A1
Level guard
B2
1
2
12
1
2
X93
X94
X92
12
X31
Programme unit
A111
13
X304
Motor relays
B3
X95
