9
29

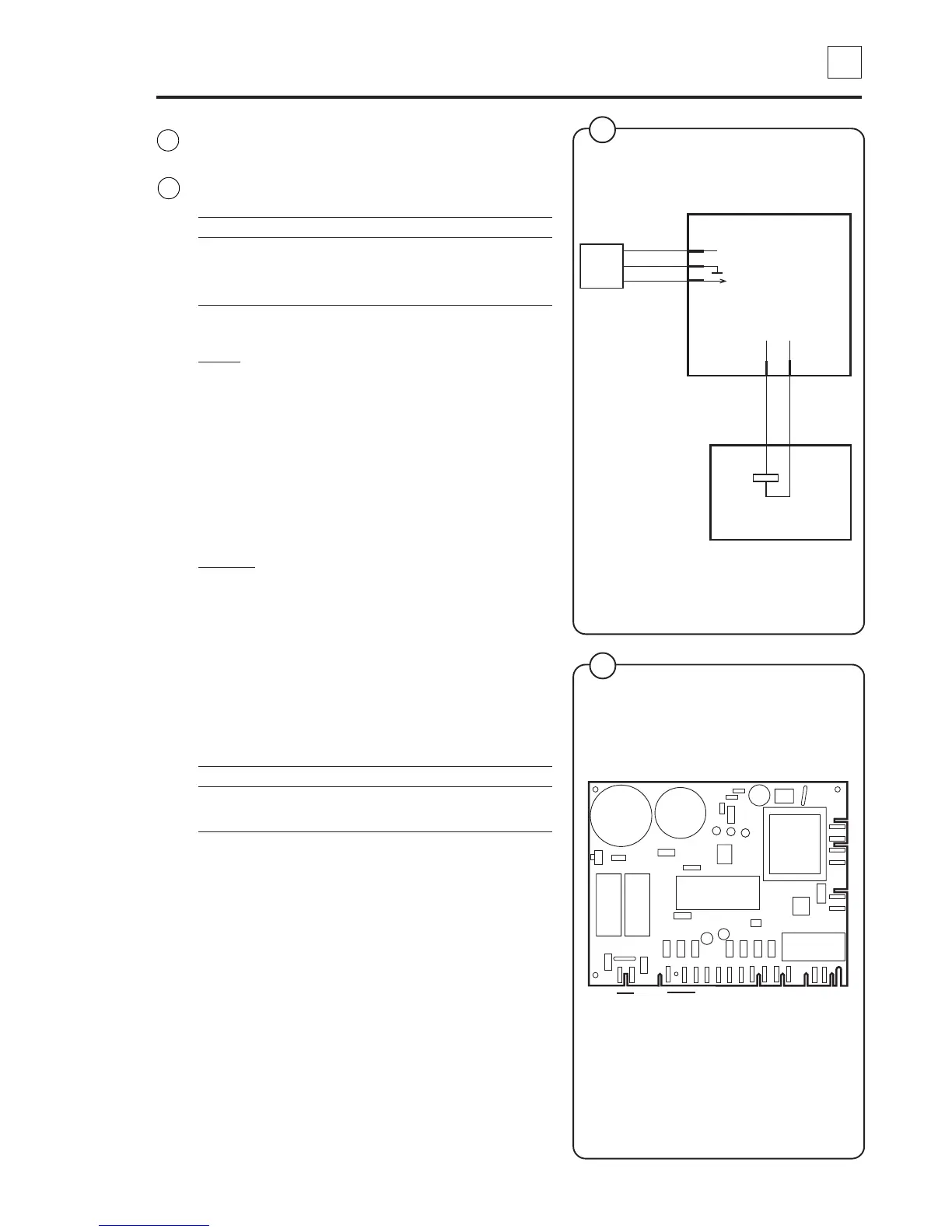

29. Door and door lock
Service
Manual
Door lock control A31
X95
1
2
3
Rotation sensor
B3
X96
1
2
Door lock A41
Y80
Unlocks + -
Locks - +
X96
X95
5184
5194
Fig.
9
Fig.
8
8
9
X95: Input from rotation sensor on motor
shaft
When the motor is operating, a pulse train is
applied on the input.
Input Function
Pin 1: DC 4-10 V feed
Pin 2: 0V
Pin 3: DC 5 V pulse input
X96: Output to door lock
Locks the door lock when the following conditions
are met:
• DC 110-240 V AC on input X92 (programme
unit requests door locking).
• DC 0 V on input X93 (no water in drum).
• DC +5 V on input X94 (motor not operating).
•No pulses on input X95 (drum not rotating).
•No error code present.
Unlocks the door lock when the following
conditions are met:
• DC 0 V on input X92 (programme unit
requests door unlocking).
• DC 0 V on input X93 (no water in drum).
• DC +5 V on input X94 (motor not activated).
•No pulses on input X95 (drum not rotating).
•No error code present.
Voltage Function
17 - 31 V DC, + on pin 1, - on pin 2 Unlocks the door
17 - 31 V DC - on pin 1, + on pin 2 Locks the door
