Wasp wdt60 - Connection to USB Peripherals

1 WDT60™
14
3

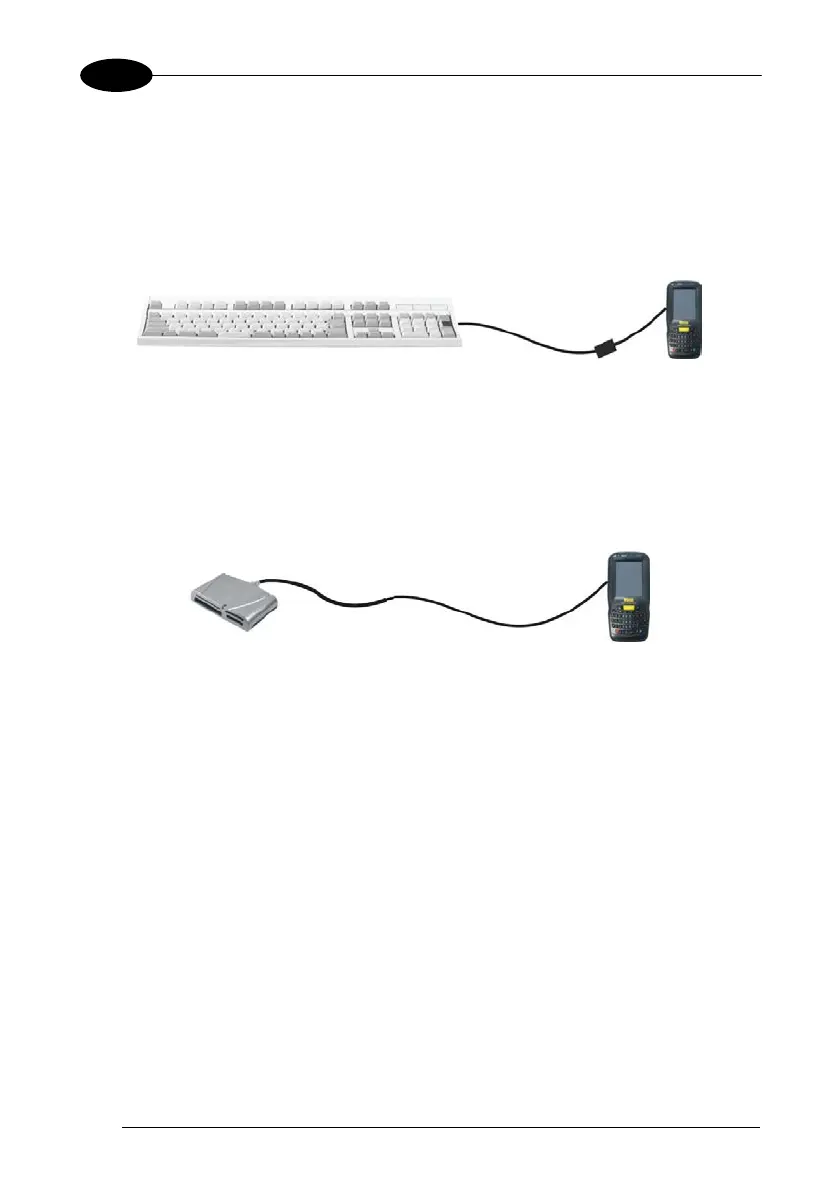

3.2 CONNECTION TO USB PERIPHERALS
To connect the WDT60 to a USB keyboard or a memory device, connect the terminal
to a micro USB host cable or to a HandyLink™ micro USB host cable (together with a
standard A to micro A USB cable).
For all these devices maximum current draw must be less than 100mA.
Key:
A Keyboard with USB interface C Micro USB Host Cable/ HandyLink™
Micro USB Host Cable
B WDT60 D Standard A to Micro A USB Cable
Key:
A USB hard drive/ external
memory source
C Micro USB Host Cable/ HandyLink™
Micro USB Host Cable
B WDT60 D Standard A to Micro A USB Cable
A
B
C
D
A
B
C
D
