WaterLogic WL2 Firewall - Mini Model Parts List; Mini Model Illustration; Mini Model Part Numbers

36 37
Waterlogic 2 Firewall Technical Manual - Issue B, May 2014
1
2
3
4
5
6
7
8
9
10
11
12
13 14
22
21
20
15
16
17
18
24
23
25
19
43
42
41
40
39
38
37
36
44
35
32
31
30
29
28
27
26
33
34
47
49
48
51
55
54
53
52
50
45-
46
56

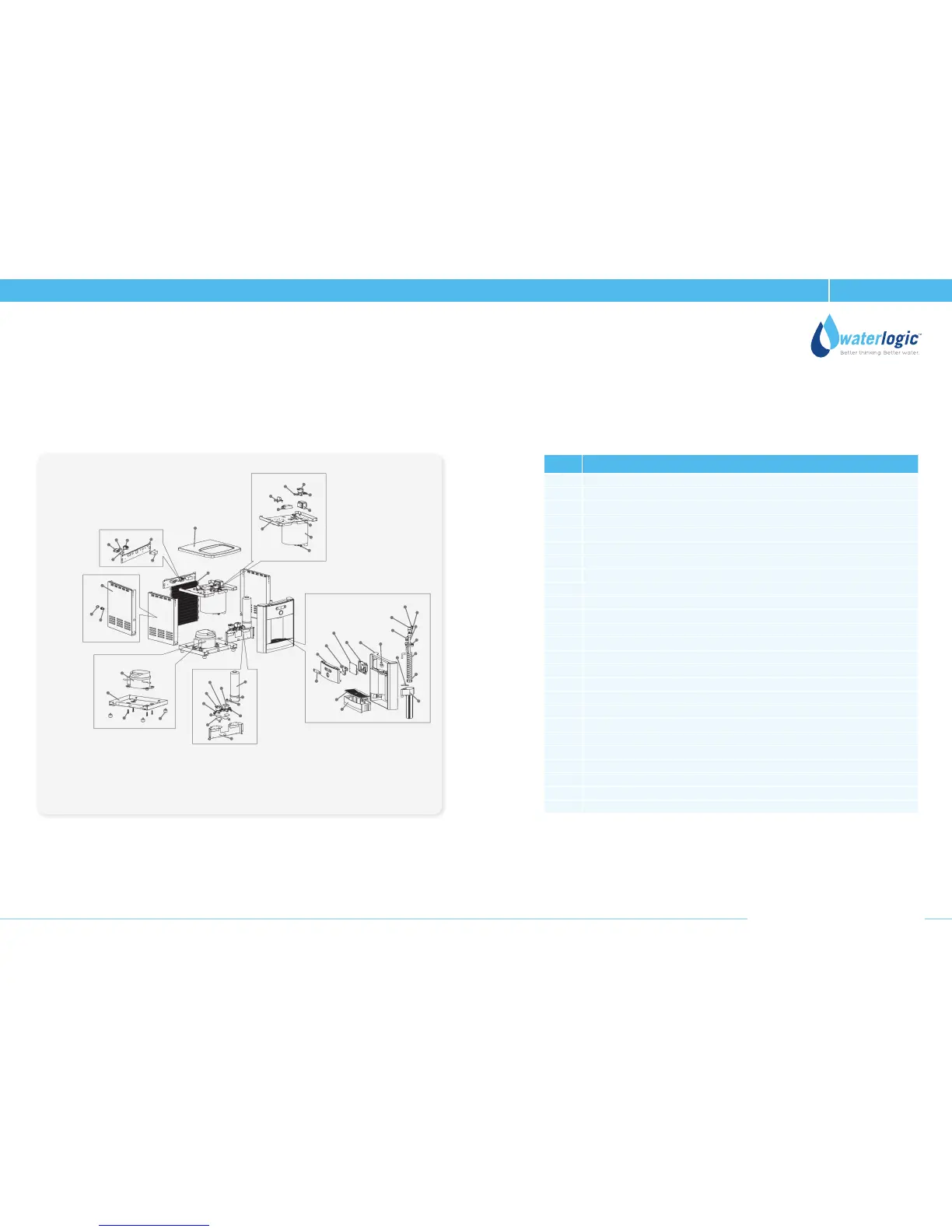

Main Parts Illustration
Mini Model
N° Part Description
1 Top Cover Black
2 Thermostat for Cold Tank
3 Mini Back Panel Universal
4 Switch - Power (Red)
5 Fuse Holder & Fuse
6 Socket for Plug Connection
7 Gasket for Power Socket
8 Silver Side Panel (Left)
9 JG Bulkhead Connector Union 1/4" * 1/4"
10 Plastic Cap for 1/4" Bulkhead Fitting
11 Compressor
12 Down Base
13 Bolt
14 Unit Control Rubber Feet
15 JG Equal Elbow Connector 1/4"
16 Solenoid Valve DC24V 500mm
17 JG Equal Tee Connector 1/4"
18 Solenoid Valve DC24V 500mm
19 JG Equal Tee Connector 1/4"
20 Cushion for Solenoid Valve
21 Mini Firewall Solenoid Valve Fixing Bracket
22 Mini Filter Fixing Panel
23 Valved Twist Filter Head
24 Filter
25 JG Stem Elbow Connector 1/4" * 1/4"
Spare Parts Numbers
