8 Connecting to a power supply
8.1 AC mains power supply
This pump is fitted with a switch mode power supply and will operate from any mains
voltage in the range ~100-240V AC, 50/60Hz supplies.
Make suitable connection to an earthed, single-phase mains electricity supply.
We recommend using commercially available supply voltage surge
suppression where electrical noise may be present.
Power cable: The pump is supplied fitted with a cable gland and approximately 2.8m
(9.2ft) of power cable. The cable is not user-detachable and the entry gland at the front of
the pump should not be disassembled.
Each pump is supplied with a power cable. The connector at the pump end of the cable is
IP66 rated. The mains plug at the opposite end of the cable is NOT IP66 rated.
Ensure that all power supply cables are adequately rated for the
equipment.
The pump must be positioned so that the disconnection device (the
mains plug), is easily accessible when the equipment is in use.
When PAT testing this unit ensure that the earth bond test terminal is
used. Do not use the motor shaft as this could result in motor bearing
damage and reduce long term reliability.

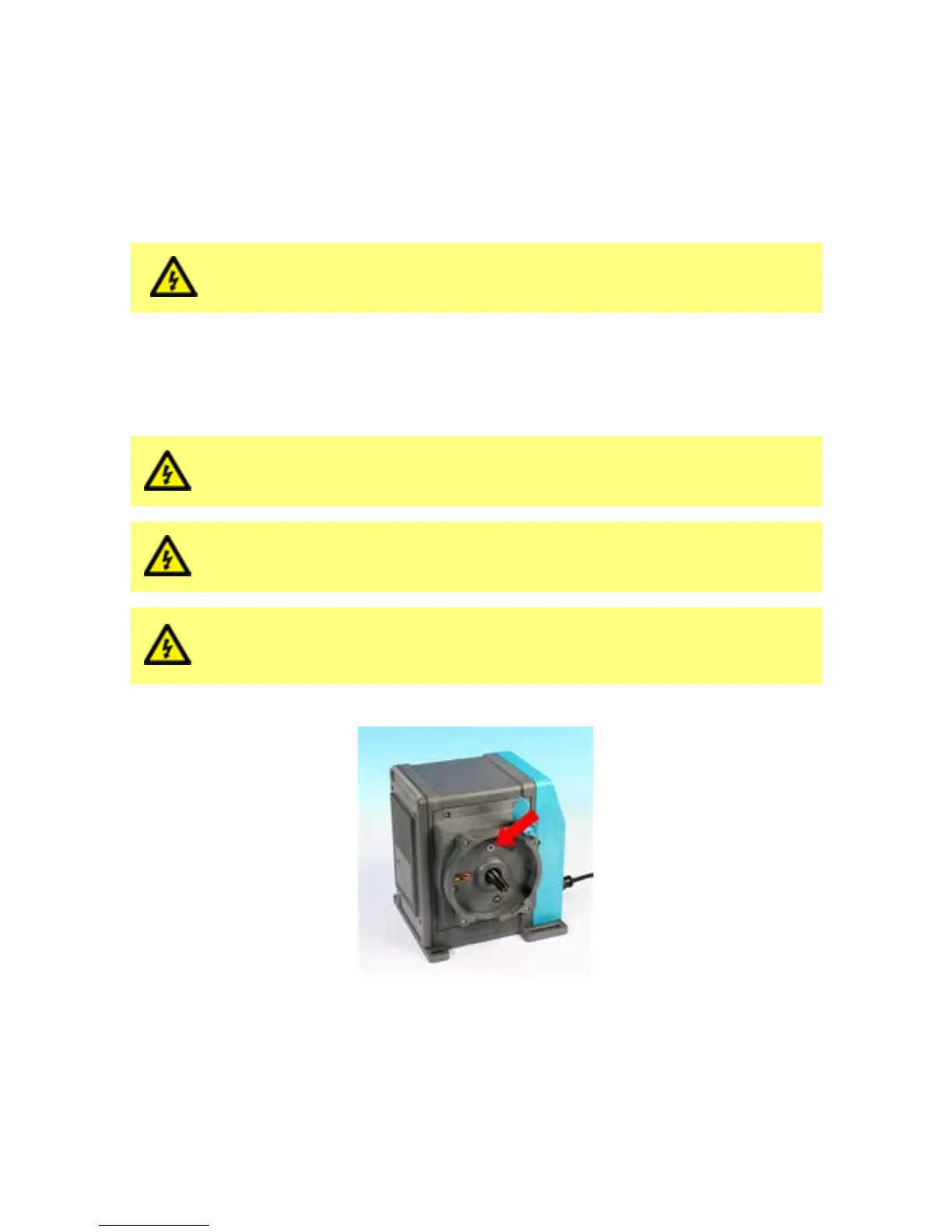

Earth bond test terminal position
m-qdos-en-02 22
