Watson-Marlow qdos60 - Page 68

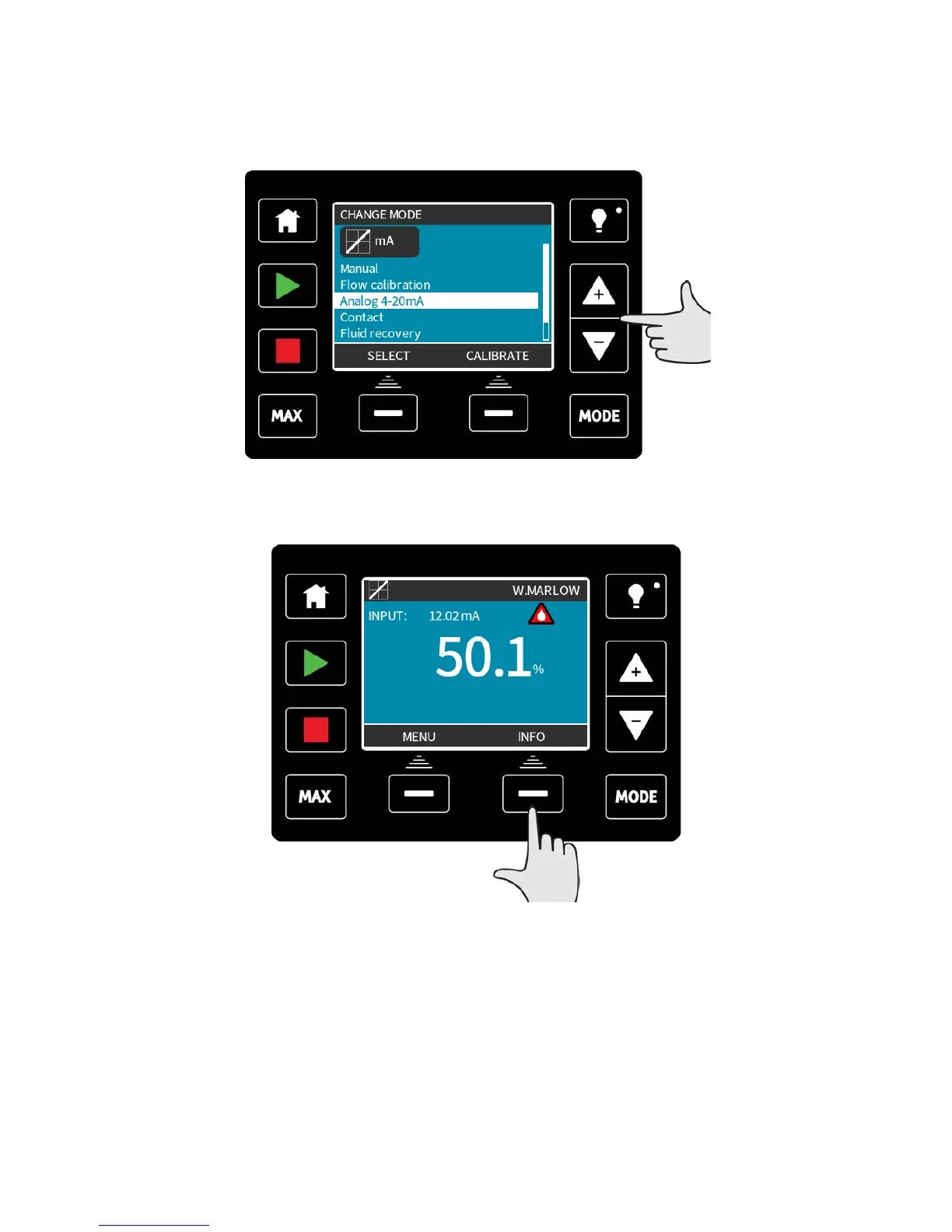

To select Analog 4-20mA mode:
l Select MODE.
l Using the +/- keys, scroll to Analog 4-20mA and press SELECT.
The current signal being received by the pump is displayed, for information only, on the
HOME screen.
Pressing the INFO function key will display further information.
m-qdos-en-02 68
