Benchmark 750-6000 with Edge [i]: Install-Startup Manual
SECTION 2 – INSTALLATION
OMM-144_B • GF-217 • 5/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 17 of 62

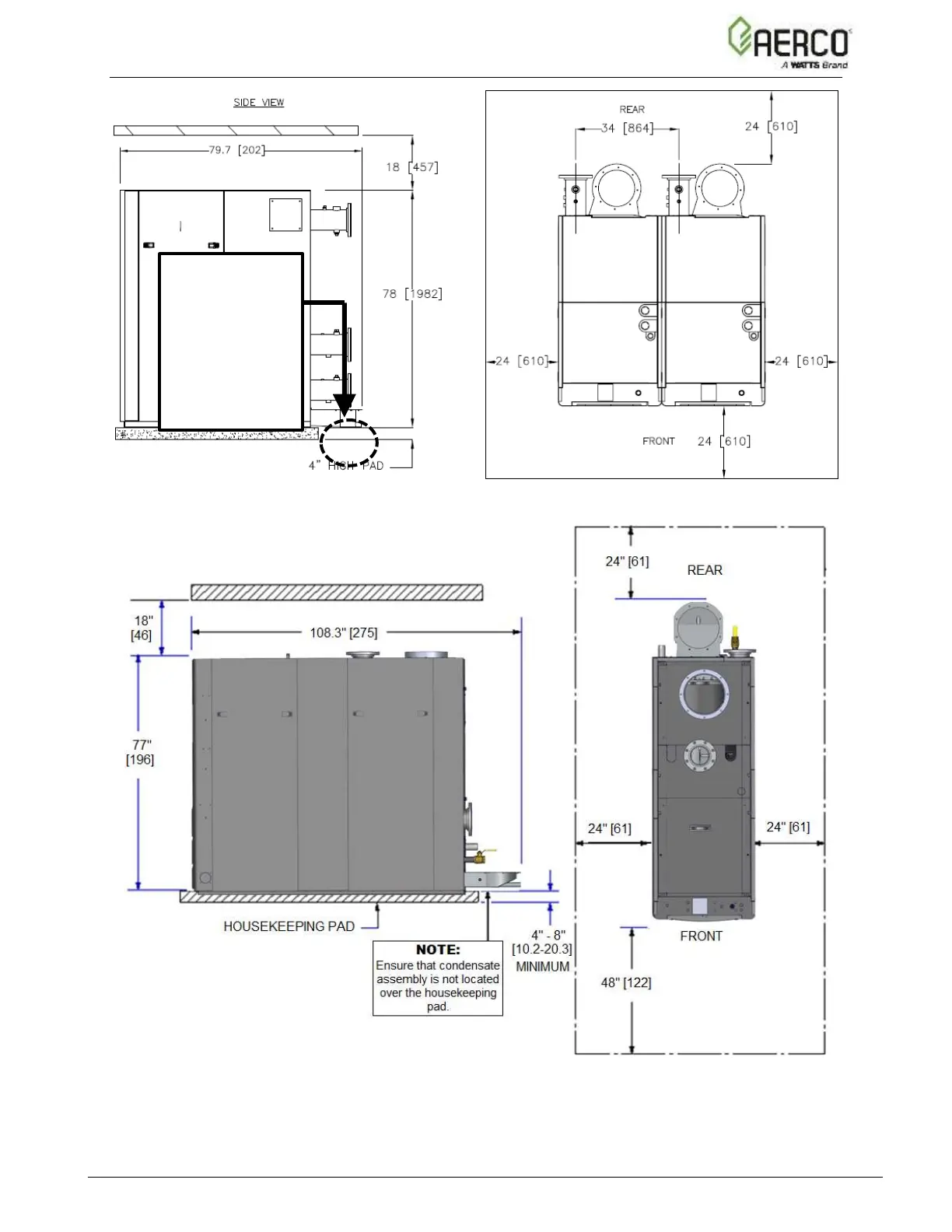

Figure 2-1d: BMK4000-5000N Clearances
Figure 2-1e: Benchmark Model 5000-6000 Clearances
NOTE:
Ensure that
condensate
assembly is
not located
over the
housekeeping
pad.
Housekeeping Pad.
