Benchmark 750-6000 with Edge [i]: Install-Startup Manual
SECTION 3 – ONAER SETUP
OMM-144_B • GF-217 • 5/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 48 of 62
Connecting The Ethernet Cable Instructions

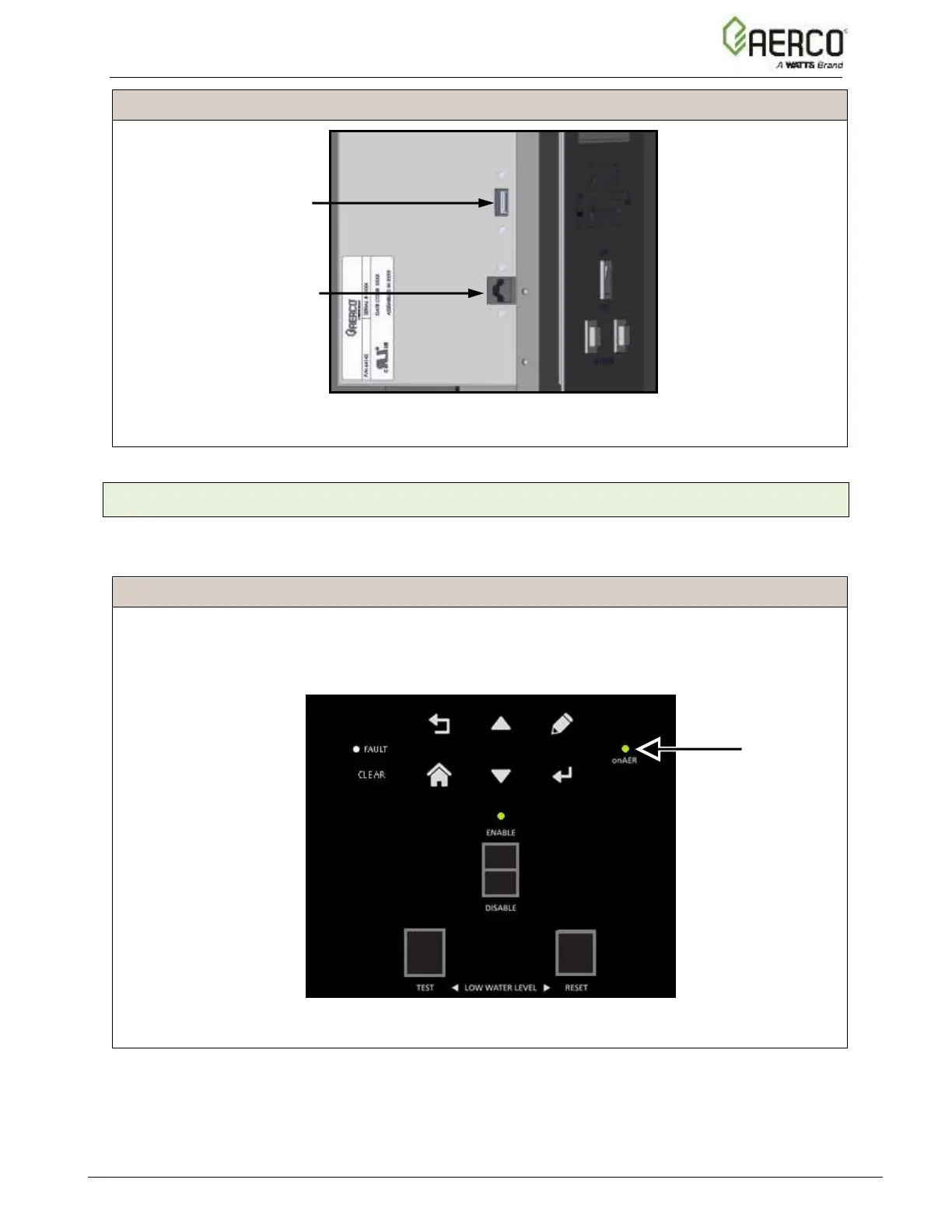

Figure 3-1: Edge Controller – Left Side View
3.1.2 Confirming the Ethernet Connection
Refer to Figure 3-2, below, and complete the following instructions to confirm that the Ethernet
cable connection is working.
Confirming The Ethernet Connection Instructions
1. Powered the unit on and look for the green LED on the Controllers front face above the
onAER soft-key.
2. If the green LED is blinking periodically, there is normal communication with the network.
Figure 3-2: Edge Controller Front Face – Ethernet Indicator LED
