Benchmark 750-6000 with Edge [i]: Install-Startup Manual
SECTION 2 – INSTALLATION
OMM-144_B • GF-217 • 5/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 19 of 62

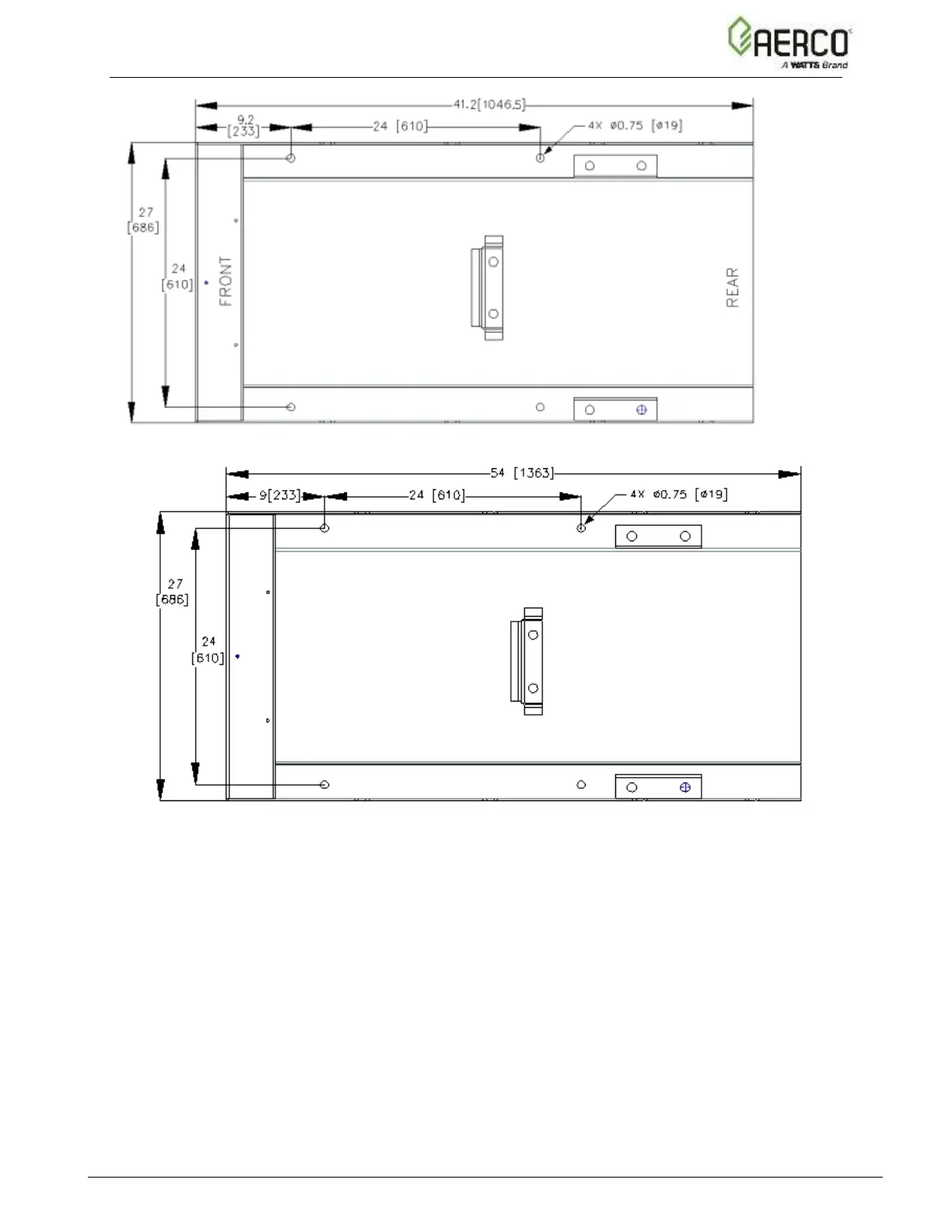

Figure 2-2b: BMK1500-2000 Anchor Bolt Locations
Figure 2-2c: BMK2500-3000 Anchor Bolt Locations
FRONT
REAR
