Benchmark 750-6000 with Edge [i]: Install-Startup Manual
SECTION 2 – INSTALLATION
OMM-144_B • GF-217 • 5/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 26 of 62

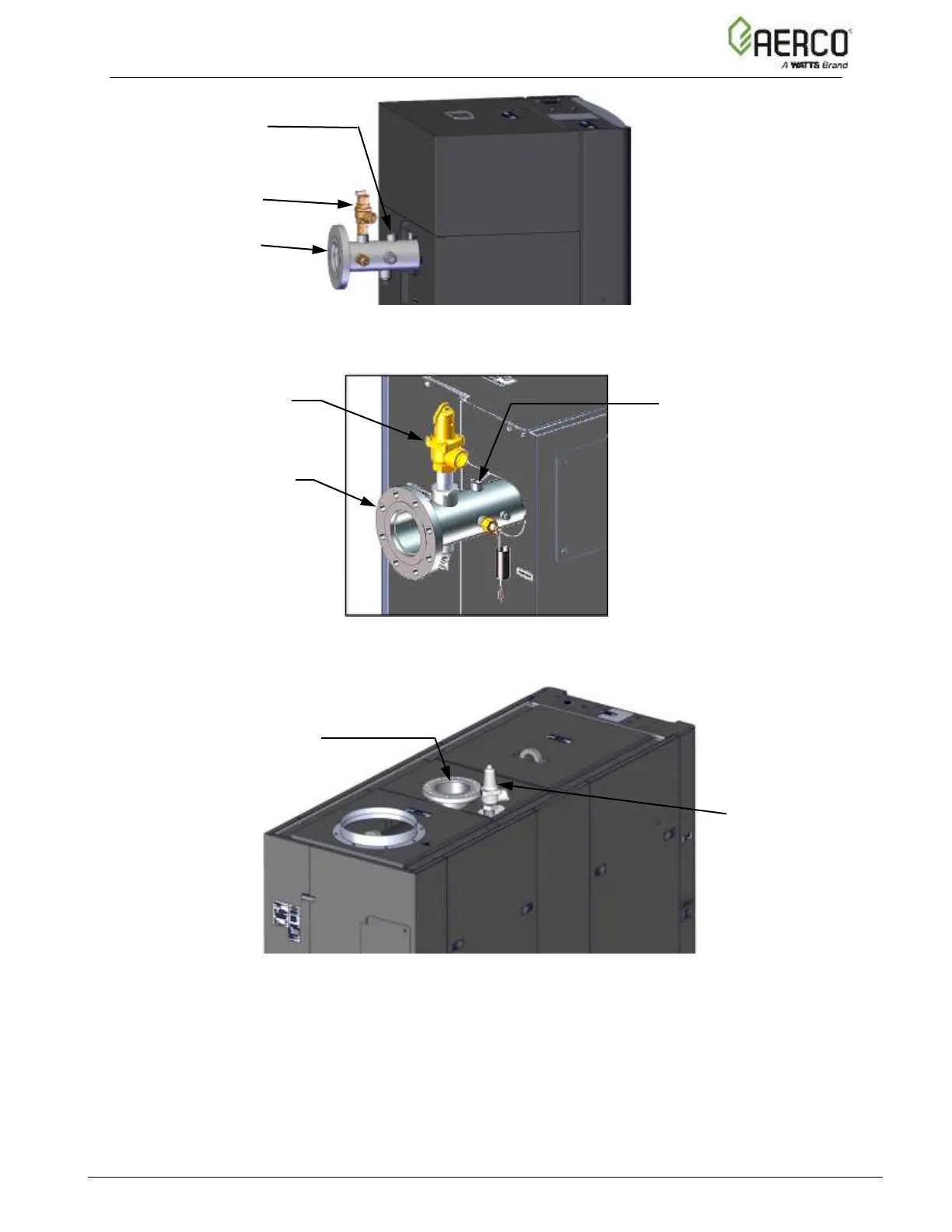

Figure 2-5a: BMK750-1000 P&T Relief Valve Location
Figure 2-5b: BMK1500 – 5000N P&T Relief Valve Location
Figure 2-5c. BMK5000-6000 P&T Relief Valve Location
PRESSURE
RELIEF VALVE
4” HOT BOILER
WATER OUTLET
INSTALL
TRIDICATOR GAUGE
HERE
(P/N 123675-TAB)
3” HOT BOILER
WATER OUTLET
PRESSURE
RELIEF VALVE
INSTALL TRIDICATOR
GAUGE HERE
(P/N 123675-TAB)
PRESSURE
RELIEF VALVE
6” HOT BOILER
WATER OUTLET
