Benchmark 750-6000 with Edge [i]: Install-Startup Manual
SECTION 2 – INSTALLATION
OMM-144_B • GF-217 • 5/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 28 of 62

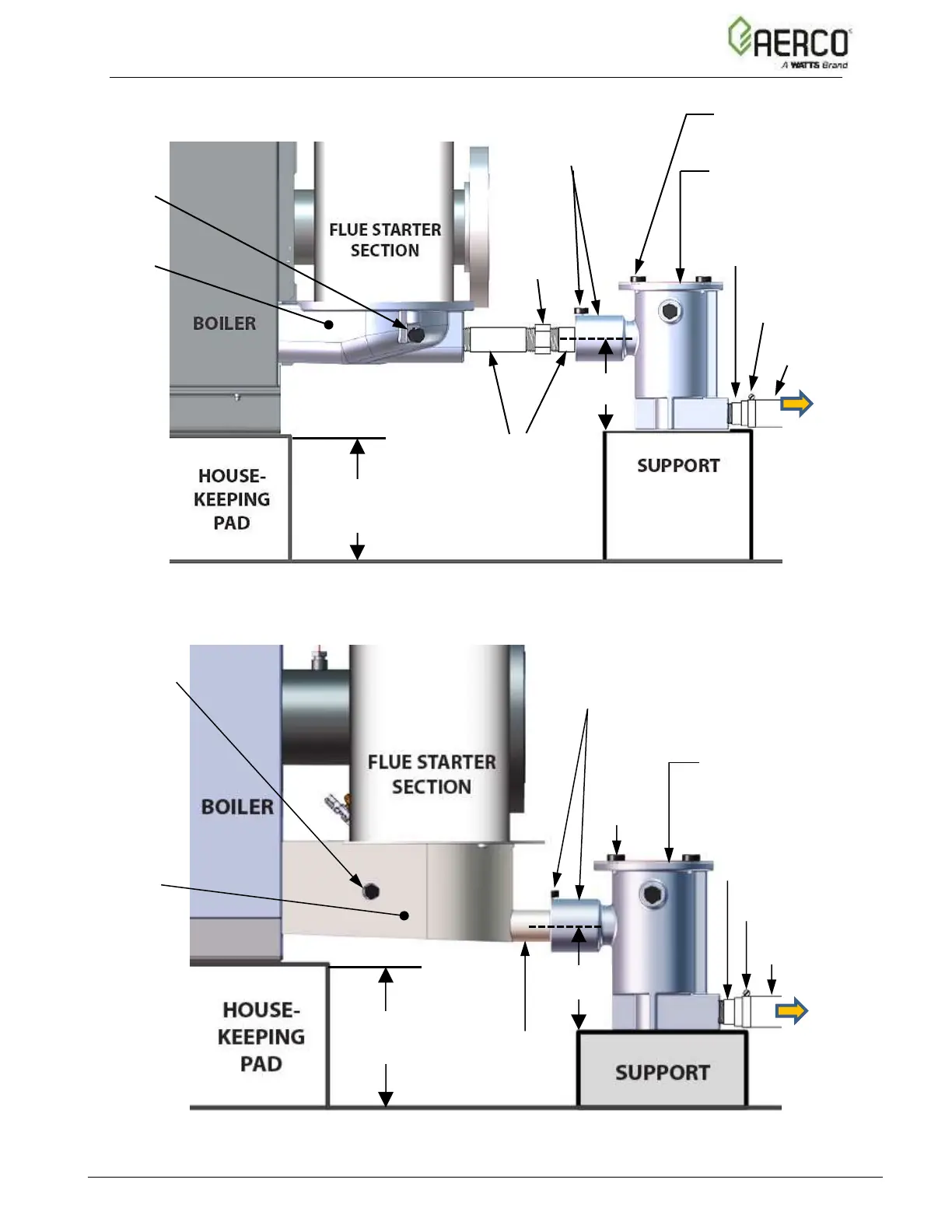

Figure 2-6a: BMK750-1000 Sample Condensate Trap Installation
Figure 2-6b: BMK1500 – 6000 Sample Condensate Trap Installation
COMBUSTION
ANALYZER
PROBE PORT
3/4” NPT
NIPPLE
HOSE
CLAMP
CONDENSATE
TRAP
(P/N 24441)
1” DIAM.
HOSE
3/4” NPT
NIPPLES
UNION
EXHAUST
MANIFOLD
TO
CONDENSATE
NEUTRALIZER
TRAP INLET
INTEGRAL ADAPTOR AND
THUMBSCREW
TOP COVER THUMB
SCREWS (4 each)
4”
4-6” (10-15.2 cm)
THICK
EXHAUST
MANIFOLD
DRAIN PORT
COMBUSTION
ANALYZER
PROBE PORT
EXHAUST
MANIFOLD
3/4” NPT
NIPPLES
HOSE
CLAMP
CONDENSATE
TRAP (P/N 24441)
TOP
COVER
THUMB
SCREWS
(4 each)
1” (2.54 cm) DIAM.
HOSE
4”
(10cm)
4-8” (10-20 cm)
THICK
TRAP INLET
INTEGRAL ADAPTOR AND
THUMBSCREW
TO
CONDENSATE
NEUTRALIZER
