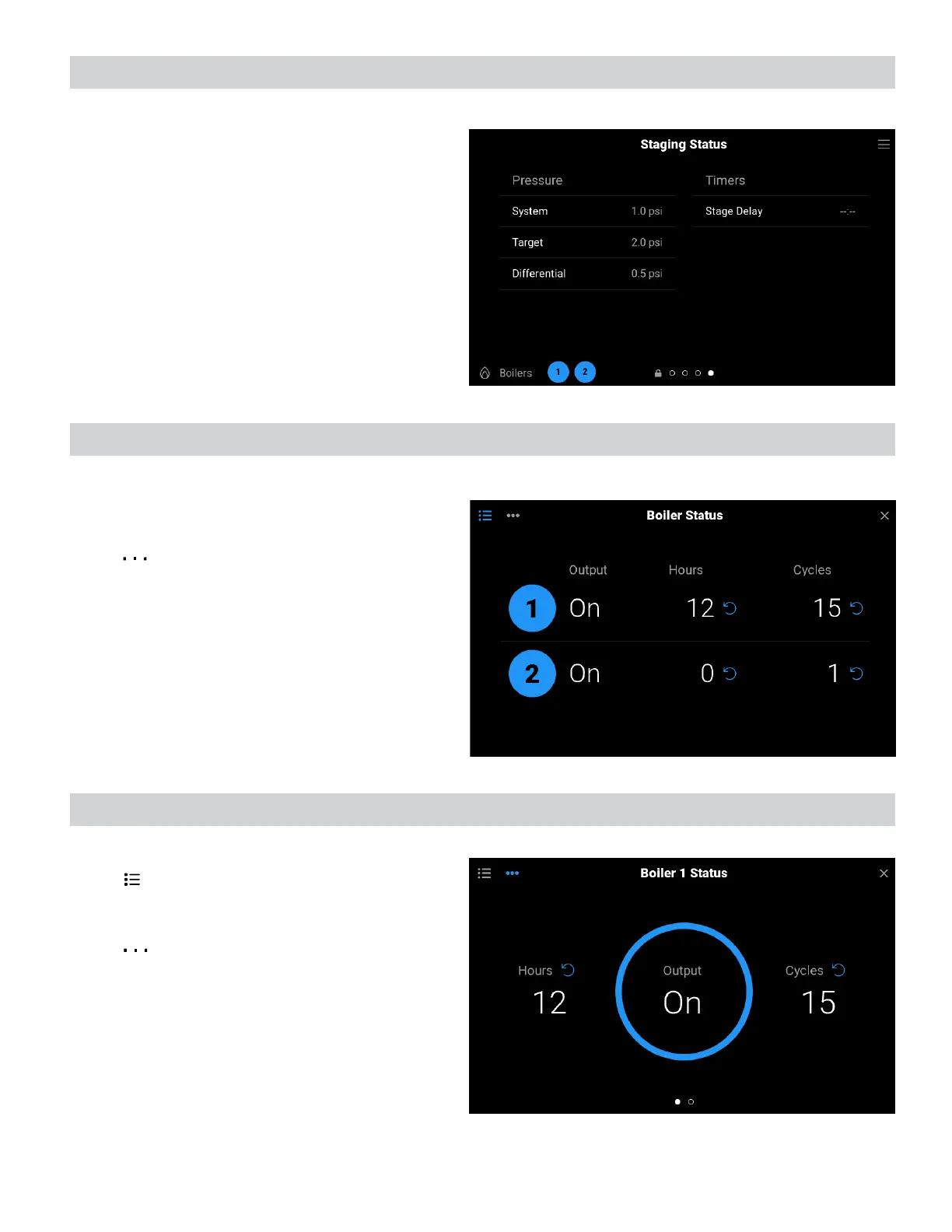

Staging Status
• The staging status is only available when the control is
configured to operate two boilers.
• The system pressure displays the pressure sensor reading.
• The pressure target is the setpoint that the second
steam boiler is shut off.
• The pressure differential is amount of pressure drop
from the target at which the second boiler turns on.
• The stage delay is a timer that must elapse before the
second boiler is turned on once the pressure differential
condition has been met.
Boiler Status List Screen
• Press ellipsis to go to the Boiler Status Carousel
screen
• The circle in blue indicates that the boiler is firing. An
empty circle indicates off.
• The boiler run time hours is displayed. Press the rotate
circle button to zero the hours.
• The boiler on-off cycles are displayed. Press the rotate
circle button to zero the cycle count.
Boiler Status Carousel Screen
• Press to go to the Boiler Status List Screen
• Swipe left to view higher number boilers
• Swipe right to view lower number boilers
• Press ellipsis to go to the Boiler Status Carousel
screen
• The circle in blue indicates that the boiler is firing. An
empty circle indicates off.
• The boiler run time hours is displayed. Press the rotate
circle button to zero the hours.
• The boiler on-off cycles are displayed. Press the rotate
circle button to zero the cycle count.
