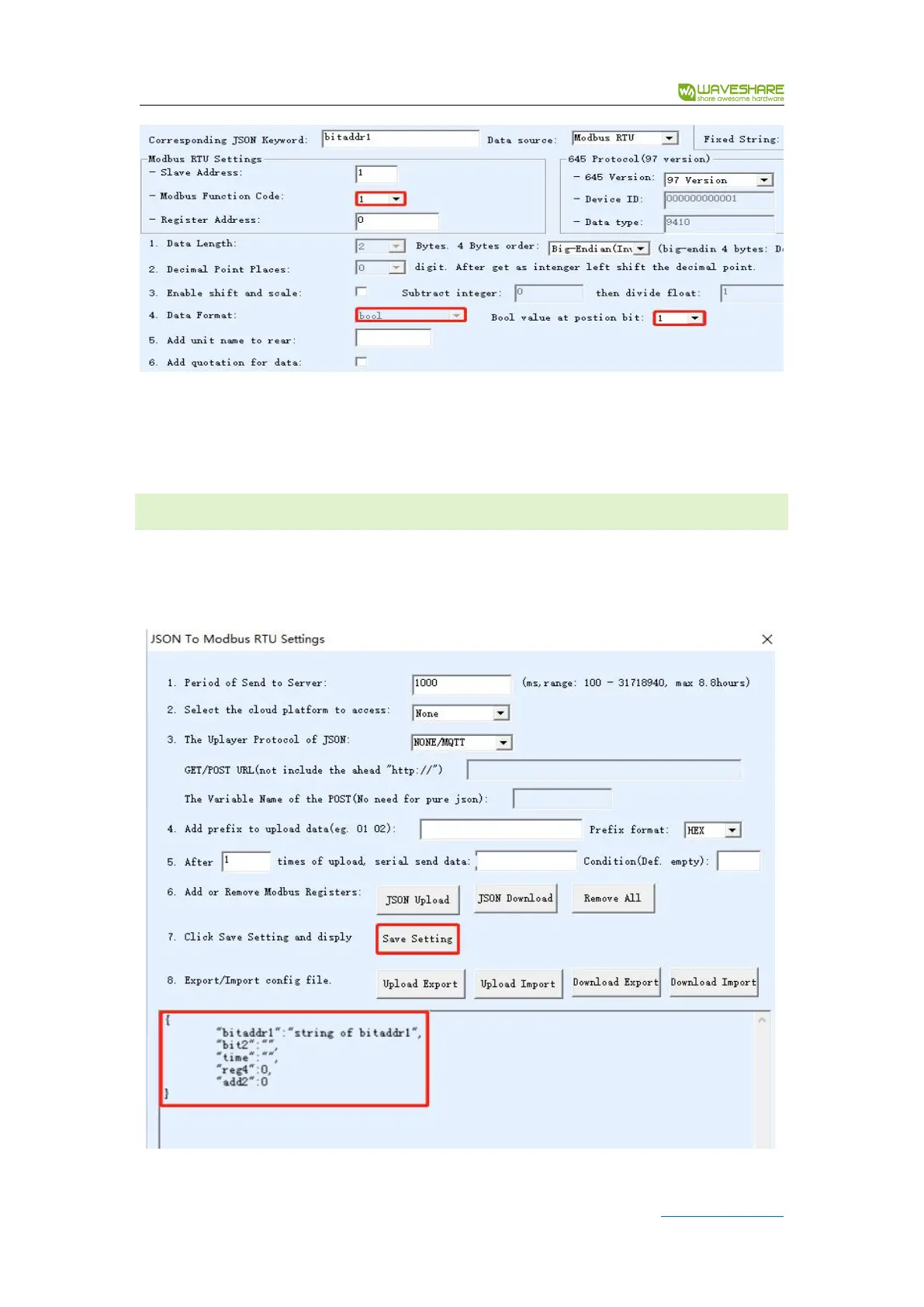

Figure 10 Byte register
When the Modbus function code is 01/02, the data length, data format, and the
number of reserved decimal places cannot be selected.
3.5. SHOW DESIGN RESULTS
Now click "Save JSON Design" to design and you can see the content of the designed
JSON format in the display box, which is convenient for overview of the design. At the same
time, there is an index for comparison when entering "Add/View".
Figure 11 shows the results

Waveshare RS485 TO ETH Specifications

General

Interface	RS485 to Ethernet
Ethernet Port	10/100Mbps
RS485 Port	1 port
Baud Rate	300bps ~ 115200bps
Communication Interface	Ethernet, RS485
Protection	Surge protection
Operating Temperature	-40°C to 85°C
Communication Protocol	TCP/IP, UDP
Storage Temperature	-40℃ ~ 85℃
Humidity	5% ~ 95%
Function	RS485 to Ethernet converter
