485 TO ETH (B) User Manual
33 / 36 www.waveshare.com

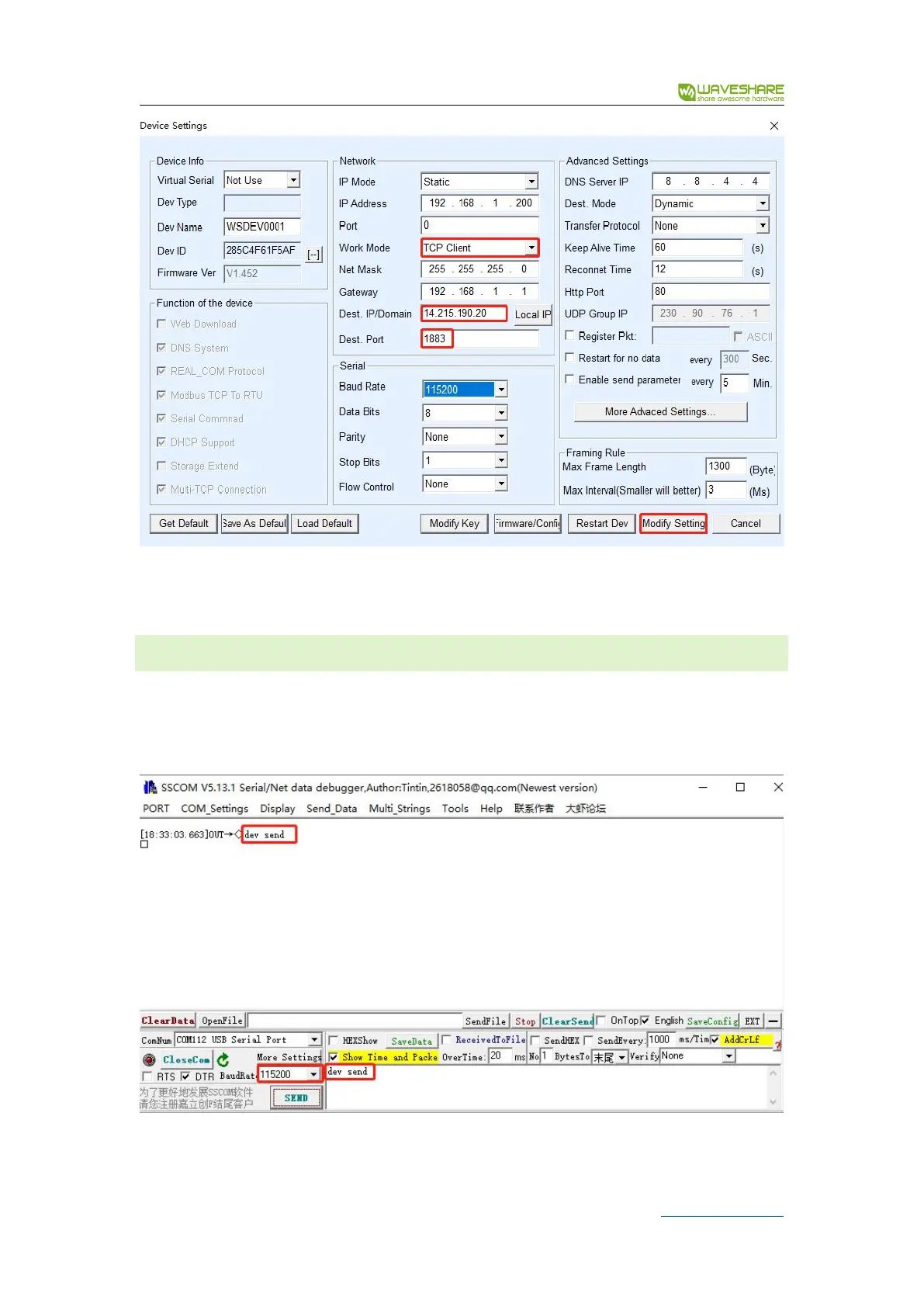

Figure 37 IP configuration
This configuration is complete.
5.2. DATA TEST
After the connection is completed, the LINK light (usually the blue light in the middle) of
the device turns on. It indicates that the device is normally connected to the MQTT server.
Now open the serial port tool:
Figure 38 Serial port sending and receiving
