485 TO ETH (B) User Manual
21 / 36 www.waveshare.com
The format of the last uploaded data is as follows, among which the workshop_id is
read from the Modbus register.

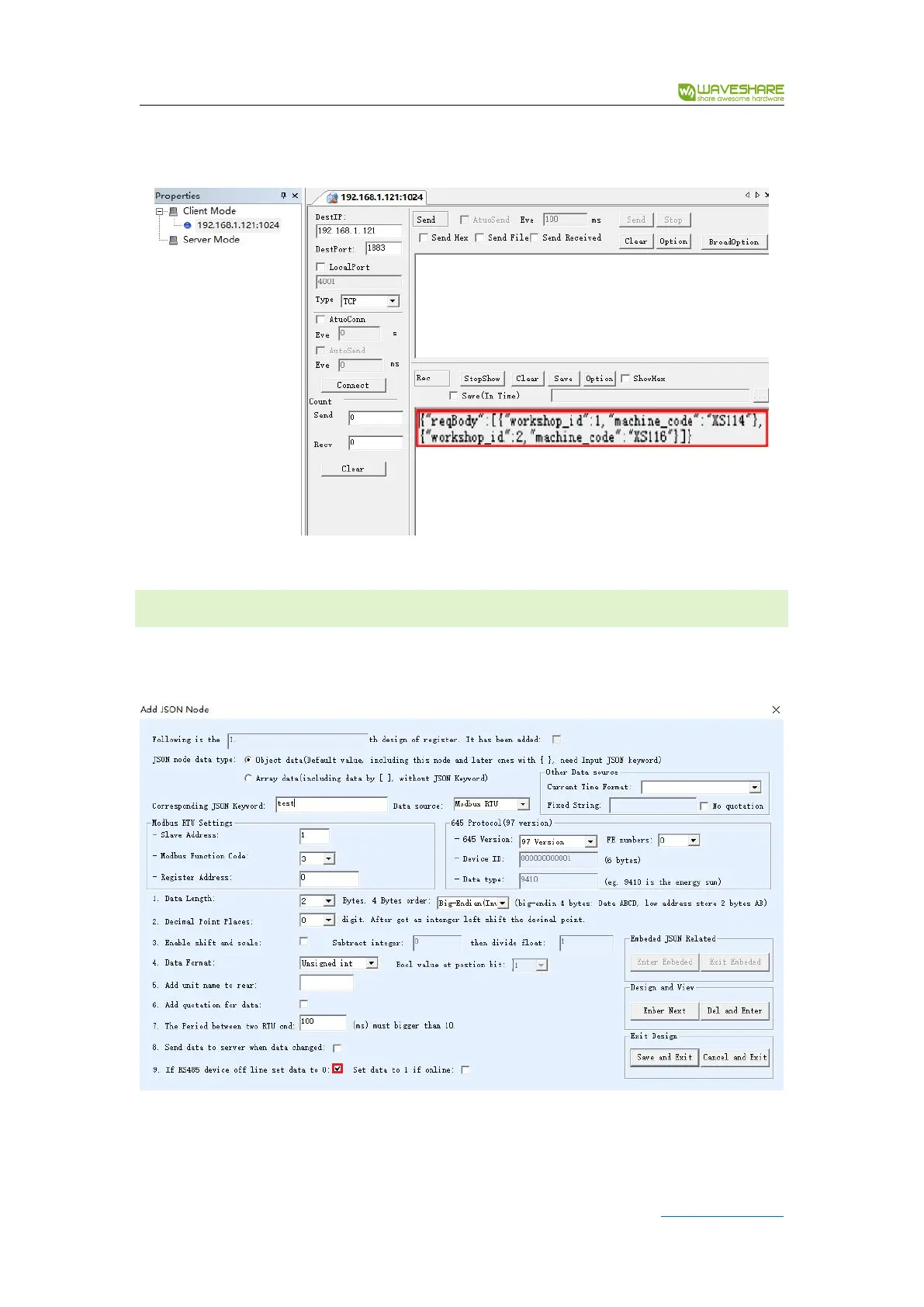

Figure 21 Step 1.1.3
3.8. CANNOT READ AND CLEAR
When a register cannot be read, a data value of 0 can be used to indicate that the data
has not been read.
Figure 22 Clear data
