Waveshare RS485 TO ETH User Manual

485 TO ETH (B) User Manual
19 / 36 www.waveshare.com
]
}
The content of the array here is not a simple data value, it is a JSON itself.

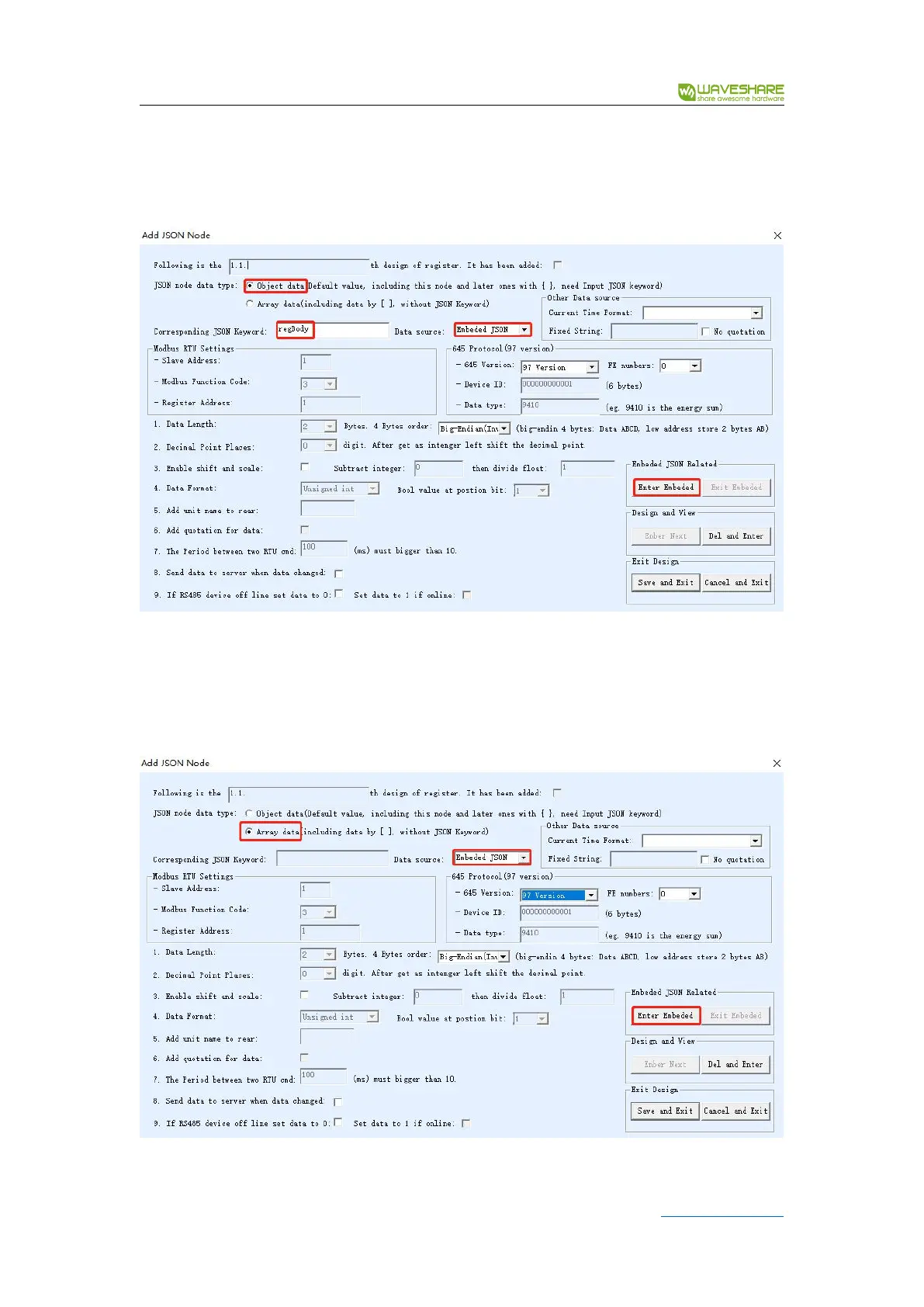

Figure 16 Step 1
Here in 1.1, the previous example 1 is to select the node type as "array data", and then
directly design the data in Modbus format, but the data content here is a JSON object, so
you need to select the data source as "nested JSON", and then click "Design nested JSON".
Figure 17 Step 1.1

Waveshare RS485 TO ETH Specifications

General

Interface	RS485 to Ethernet
Ethernet Port	10/100Mbps
RS485 Port	1 port
Baud Rate	300bps ~ 115200bps
Communication Interface	Ethernet, RS485
Protection	Surge protection
Operating Temperature	-40°C to 85°C
Communication Protocol	TCP/IP, UDP
Storage Temperature	-40℃ ~ 85℃
Humidity	5% ~ 95%
Function	RS485 to Ethernet converter
