485 TO ETH (B) User Manual

29 / 36 www.waveshare.com

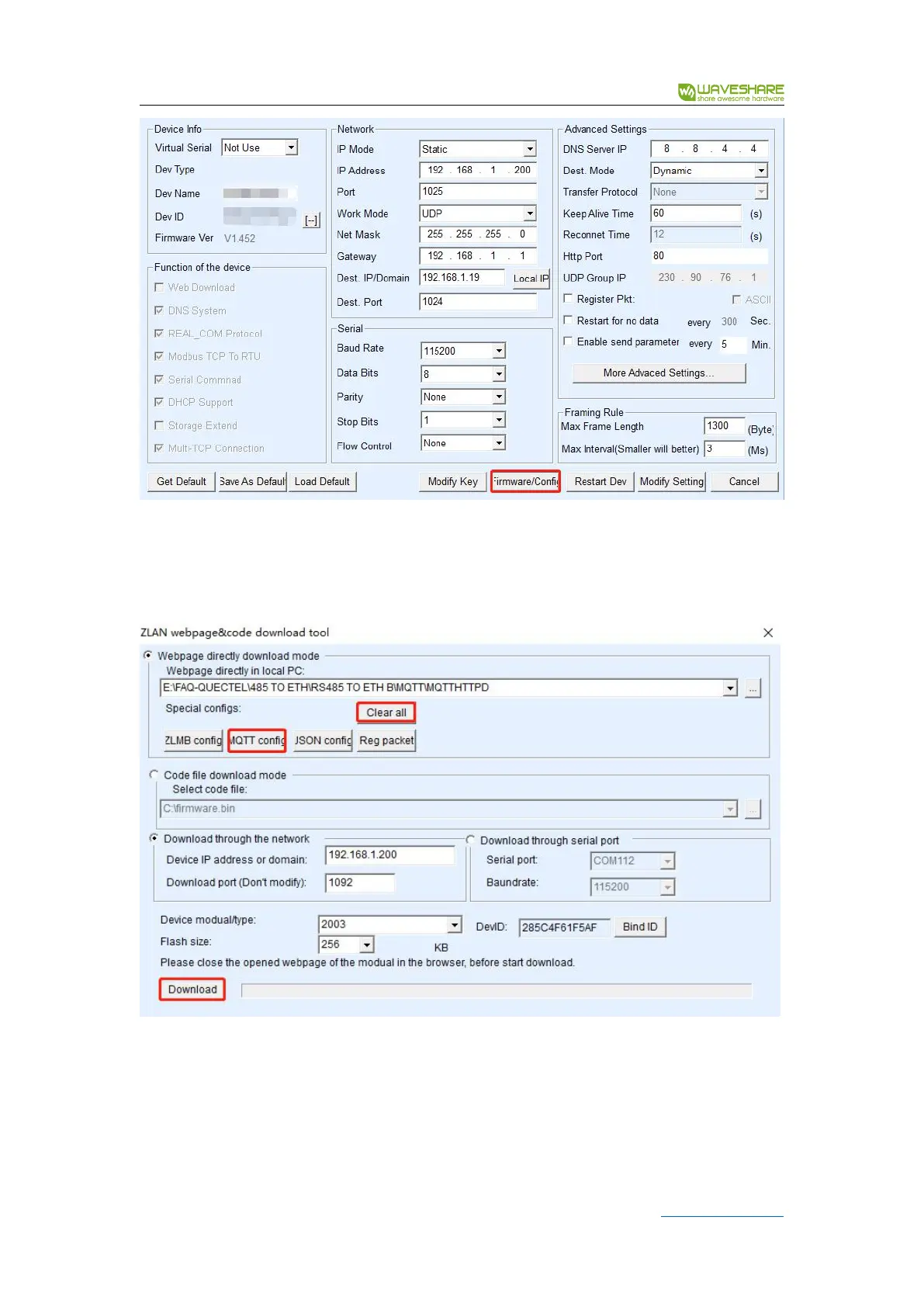

Figure 31 MQTT configuration 1

Click "Firmware and Configuration", the configuration download and design dialog box

will pop up:

Figure 32 MQTT configuration 2

Here select "Web Directory Download", and then select an empty directory, such as the

MQTTHTTPD directory, and then click "Clear All" to clear the previous design (note that if the

previous design was designed according to JSON, do not clear all, otherwise the previous

design will be cleared. JSON design). Then click MQTT configuration.
