RS485 TO ETH ( B)

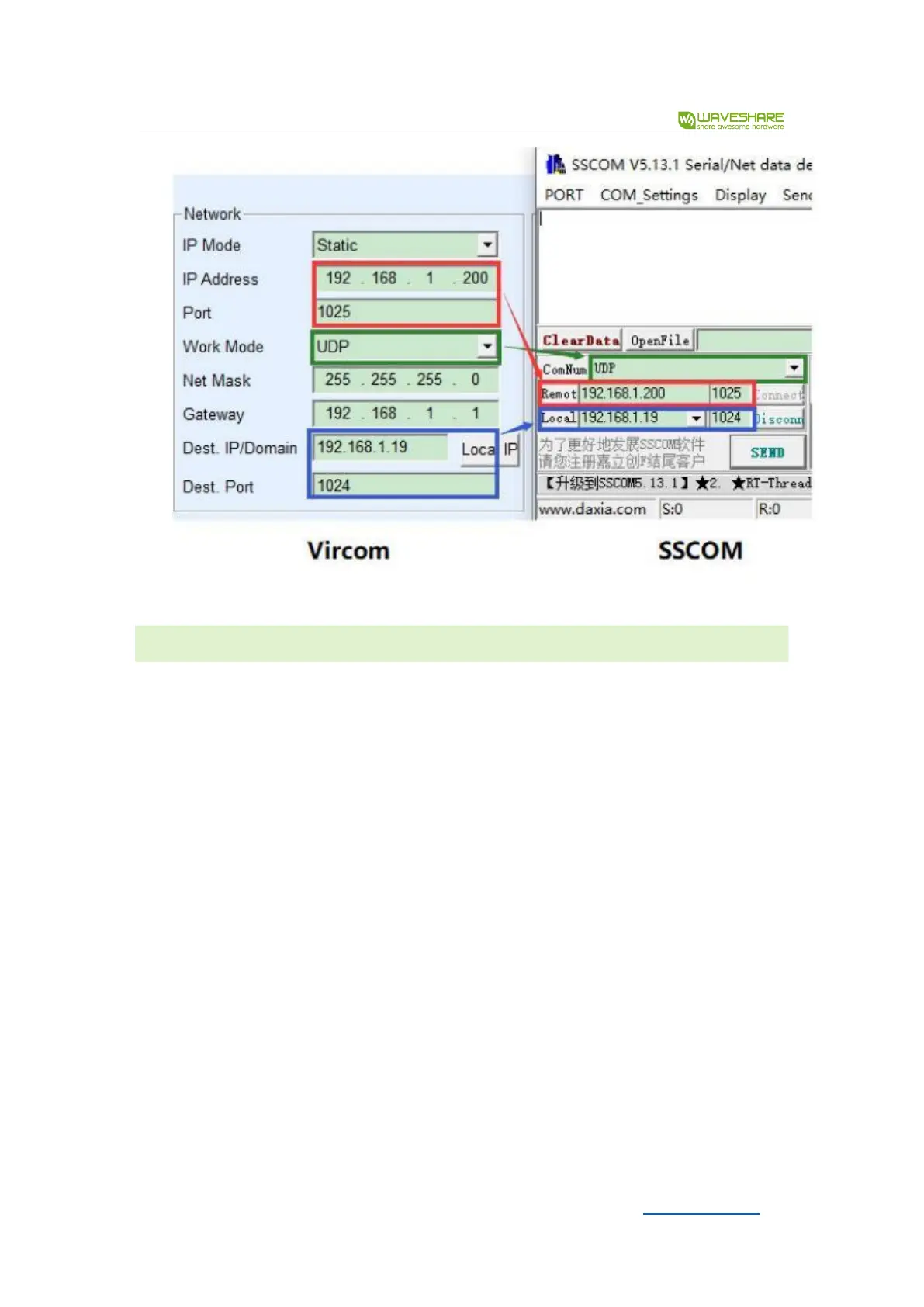

Figure 18 UDP mode parameter configuration
5 . 3 . DEVICE COUPLET WAY
If the host computer is not an SSCOM program or a virtual serial port, but two devices are
connected through a network port, the configuration method is similar. First, the user needs to
connect two devices and computers to the same local area network. Vircom is running on this
computer. The purpose of connecting to the computer is only for configuration. After the
configuration is completed, the computer does not need to be connected.
Click on Vircom' s device management to find these 2 devices, as shown in Figure 20 . Then
click " Edit Device" to configure the device. Device couplets can be divided into TCP couplets and
UDP couplets. If it is TCP couplet, the parameters of the two devices are shown in Figure 19. The
parameters shown by the arrows must correspond, just like the corresponding way of connecting
with a PC. After the TCP connection is successful, you can view the connection status by
returning to the "Device Management" dialog box, as shown in Figure 20. If the status of the two
devices is both "Connected", it means that the TCP link between the two devices has been
