RS485 TO ETH ( B)
established.

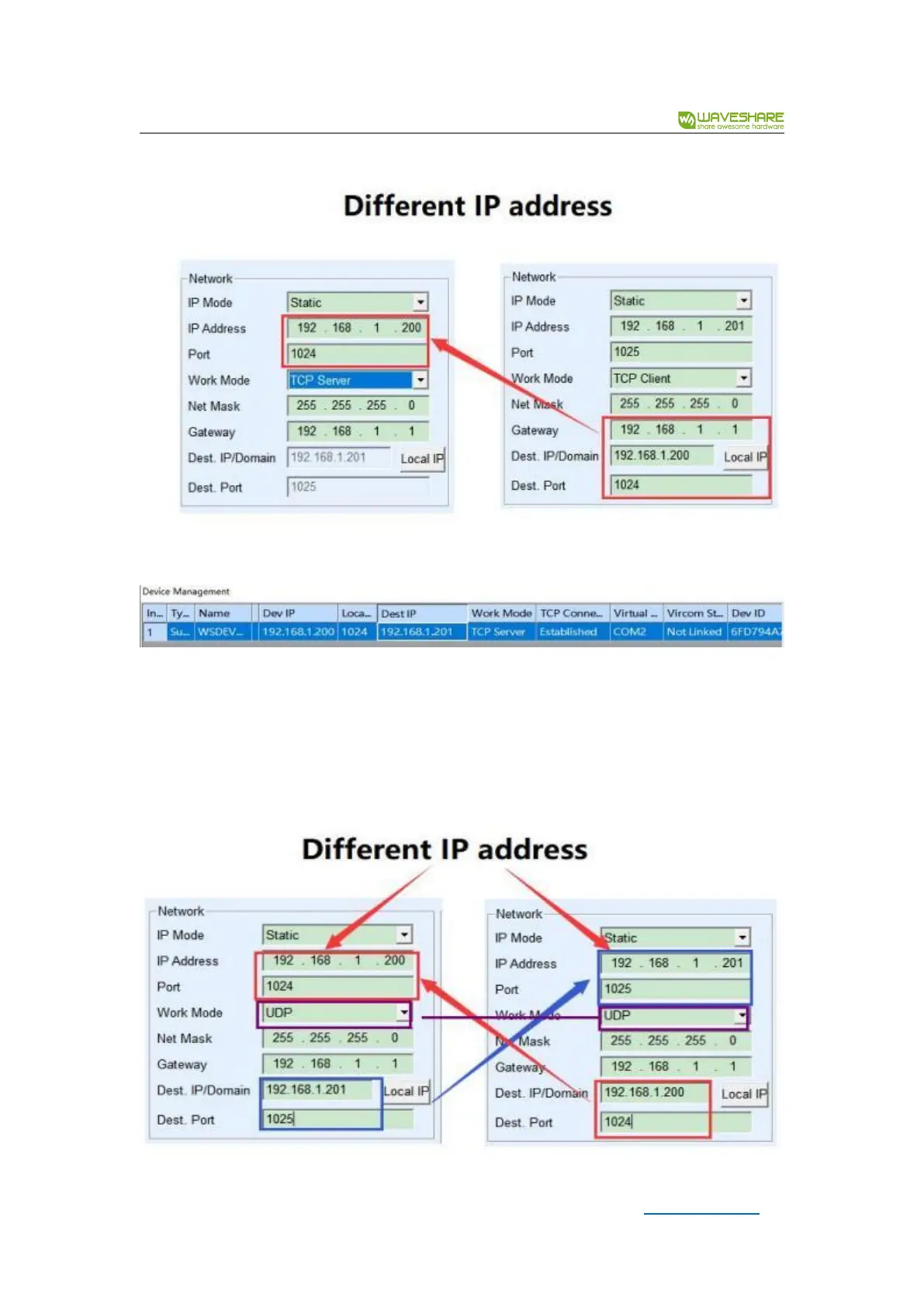

Figure 19 TCP device pairing parameter configuration
Figure 20 TCP device pairing parameter configuration
If it is couplets in UDP mode, the configuration parameters are shown in Figure 21, and the
parameters corresponding to the arrows must be one-to- one correspondence. UDP couplet does
not need to check the connection status as long as the parameter configuration is correct, the
sent data will be automatically sent to the designated device.
Figure 21 UDP device pairing parameter configuration
32 / 52 www.waveshare.com
