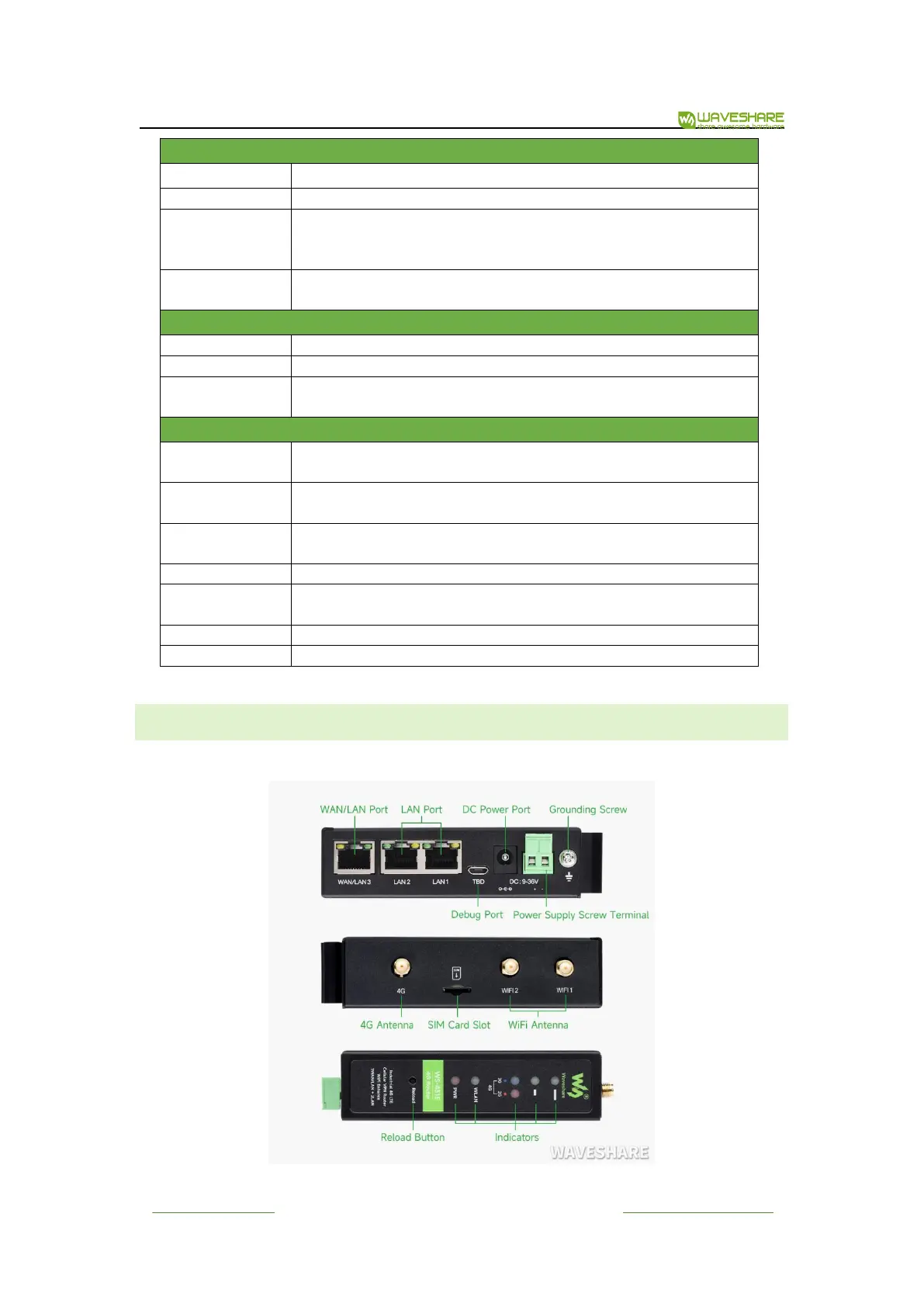

2.3. INTERFACE DESCRIPTION
The interface description as follows：
INDICATORS
PWR
Power indicator, lights up after powered on
WIFI
Lights up when WiFi is enabled
2/3/4G network
indicator
2G led lights up after being connected to 2G network
3G led lights up after being connected to 3G network
Both leds light up after being connected to 4G network
SIG
2× signal strength indicator: lights up one indicates that the signal
is average; lights up two indicates that the signal is strong
POWER SUPPLY
Power adapter
DC 12V/1A
Input voltage
DC 9-36V
Power
consumption
Average 260mA/12V
PHYSICAL CHARACTERISTICS
Operating
temperature
-20
℃
~+70
℃
Storage
temperature
-40
℃～
+125
℃（
non-condensing)
Relative
humidity
5%~95%（non-condensing）
Case material
Metal case, IP30 protection level
Dimensions
(L × W × H)
104.0×102.0×28.0mm
Installation
DIN rail mounting, wall mounting, tabletop
EMC
level 3

Waveshare WS-431E Specifications

General

Brand	Waveshare
Model	WS-431E
Category	Network Router
Language	English
