11
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
INSTALLATION

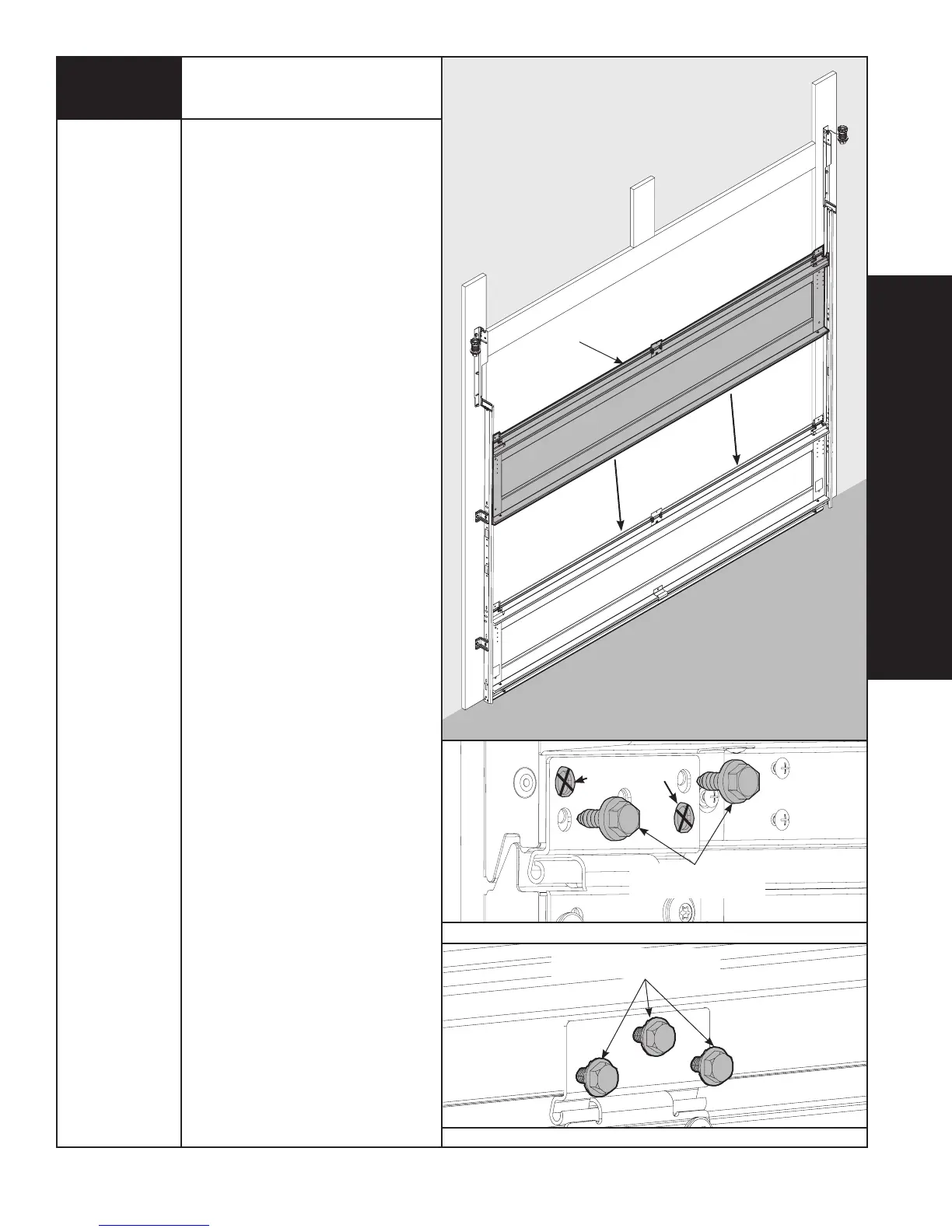

Stacking Sections
NOTE: For door section identification
see page 4.
NOTE: Make sure hinge leafs are
flipped down, when stacking another
section on top.
Place rollers in hinge tubes of the
second section (lock section).
With assistance, lift the second section
and guide rollers into the vertical
tracks.
Maintaining section vertical alignment;
starting with the center hinge first,
flip up the hinge leaf, and hold it tight
against the section. Secure it to the
section with (3) 1/4”-14 x 5/8” self
tapping screws.
Attach center hinges first, then attach
the end hinges last.
Now, secure the end hinge leafs to the
section with (2) 1/4” -14 x 5/8” self
tapping screws and fasten them in a
low to high inclination (from bottom
left hole, to upper right hole, for the left
side of the door and from bottom right
hole, to upper left hole, for the right
side of the door).
Repeat for other section(s) except top
section.
IMPORTANT: PUSH & HOLD THE
HINGE LEAF AGAINST SECTION WHILE
SECURING WITH 1/4”-14 X 5/8” SELF
TAPPING SCREWS. END HINGES HAVE
(2) SCREWS AND INTERMEDIATE
HINGES HAVE (3) SCREWS.
NOTE: Install lock at this time (sold
separately). See instructions in
OPTIONAL SIDE LOCK INSTALLATION
on page 32.
6
Power Drill
7/16” Socket
Driver
LOCK SECTION
(2) 1/4”-14 X 5/8”
SELF TAPPING SCREWS
END HINGES (LEFT HAND SHOWN, RIGHT HINGE SYMMETRICALLY OPPOSITE)
INTERMEDIATE HINGES
(3) 1/4”-14 X 5/8” SELF
TAPPING SCREWS
DO NOT USE
To Next Page
