4
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Hinges are always pre-attached at the top
of each section (except top section) and
the hinges are stamped for identification,
#1, #2, #3, and #4 (#4 only on five
section doors). See view below. The
stamp identifies the stacking sequence
of the section. The sequence is always
determined by #1 being the bottom section
to #3 or #4 being the highest intermediate
section. See views to the right. If the
stamp on the end hinge is illegible, refer
to the section side view illustration to the
right.
The section side view illustration shows
the end hinge profile of all the sections,
and can also be used in conjunction with
identifying each sections.
The BOTTOM SECTION can be identified
by a #1 end hinge, the factory attached
astragal, or by the bottom bracket warning
labels on each end stile. This section is
always the 1st section from the bottom of
the door.
The LOCK SECTION can be identified by a
#2 end hinge. This section is always the
2nd section from the bottom of the door.
The INTERMEDIATE SECTION can be
identified by a #3 end hinge. Sections will
have a warning label attached to either the
left or the right end stile of the section.
This section is always the 3rd section from
the bottom of the door.
The INTERMEDIATE II SECTION can be
identified by a #4 end hinge. This section if
always the 4th section from the bottom of
the door on five section doors only.
The TOP SECTION can be identified with
no pre-installed end or center hinges on
the section and the warning label attached
in the upper middle of the section.
#1 END
HINGE
#2 END
HINGE
#3 END
HINGE
#4 END
HINGE
ASTRAGAL
BOTTOM
BRACKET
BOT.
LOCK
1 3/8”
1 19/32”
INT.
INT II
(USED ONLY
ON FIVE
SECTIONS)
1 1/8”
7/8”
SECTION SIDE VIEW
TYPICAL HINGE STAMPING LOCATION

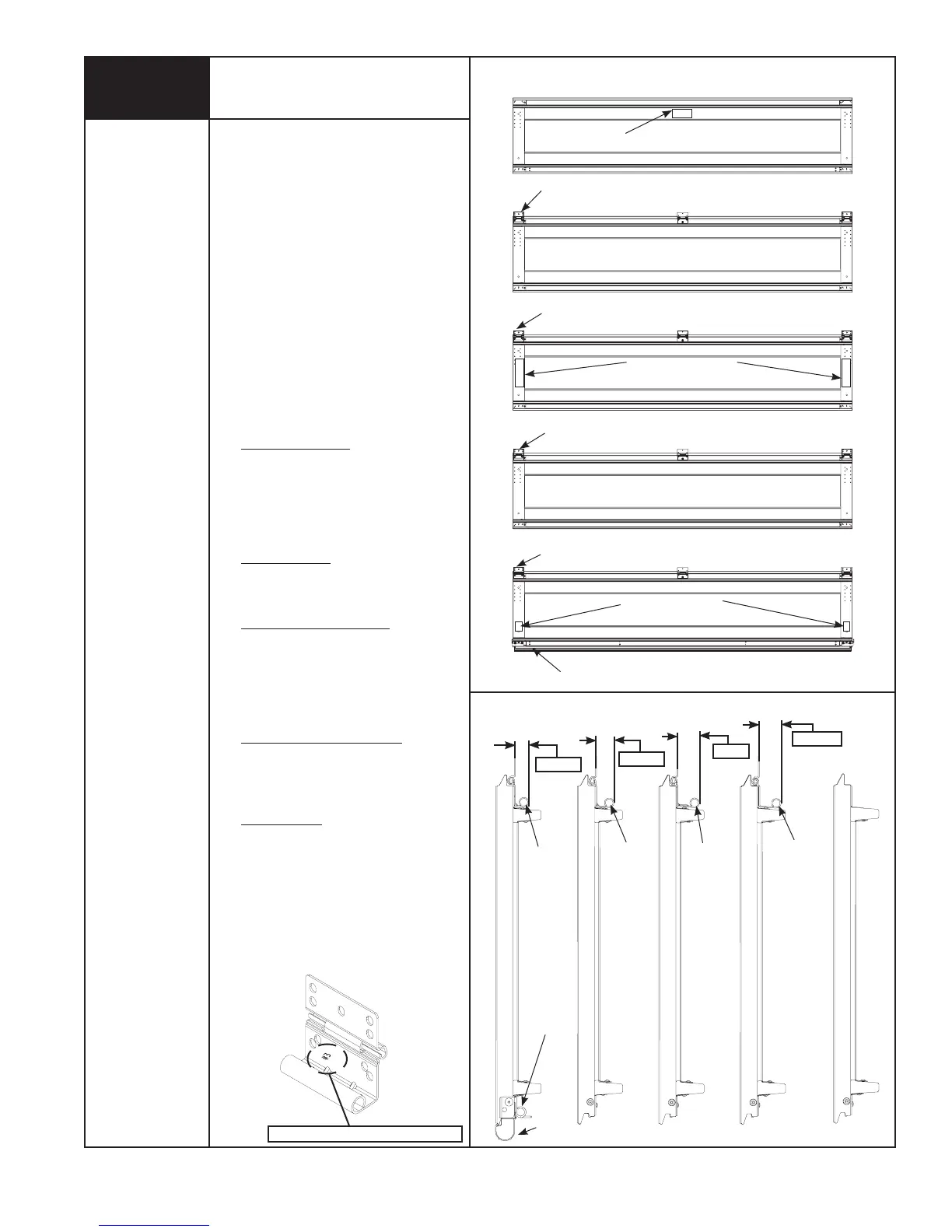

Door Section Identification
TOP SECTION
INTERMEDIATE SECTION
LOCK SECTION
BOTTOM SECTION
BOTTOM BRACKET
WARNING LABELS
ASTRAGAL
#4
#2
#1
WARNING LABEL
WARNING LABEL
#3
INTERMEDIATE II SECTION
TOP
