Tools Needed:

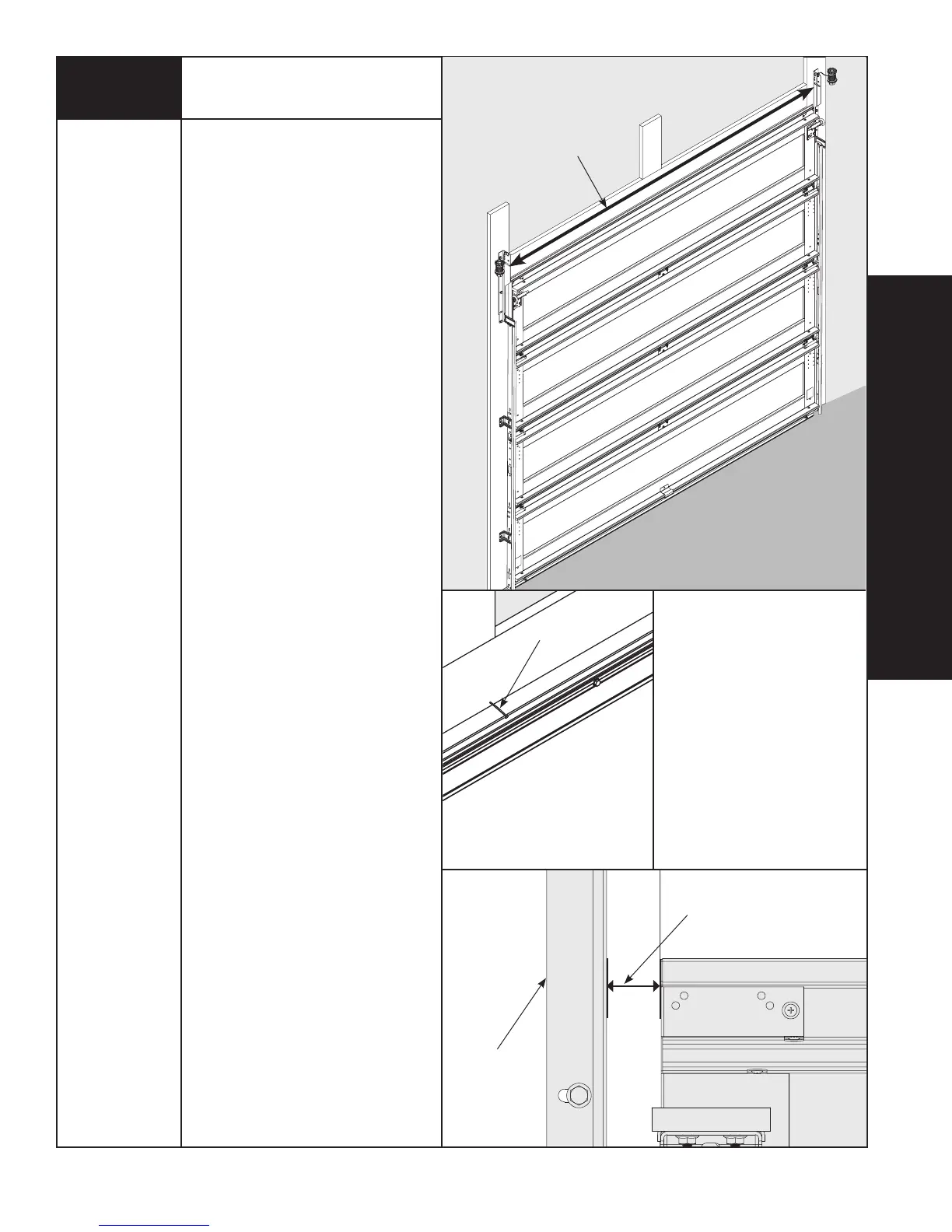

INSTALLATION
Top Section
Place the top section in the opening
and vertically align with lower sections.
Temporarily secure the top section by
driving a nail in the header near the
center of the door and bending it over
the top section.
Now flip up hinge leaf against section,
fastening center hinges first, and end
hinges last. (Refer to Step 6).
When installing a door with
Torquemaster
®
Plus counterbalance
system, vertical track alignment is
critical.
Position flagangle between 1-11/16”
(43 mm) to 1-3/4” (44 mm) from the
edge of the door. Tighten the bottom
lag screw. Flagangles must be parallel
to the door sections.
Repeat for opposite side.
IMPORTANT: THE DIMENSION
BETWEEN THE FLAGANGLES MUST BE
DOOR WIDTH PLUS 3-3/8” (86MM) TO
3-1/2” (89 MM) FOR SMOOTH, SAFE
DOOR OPERATION.
Now complete the vertical track
installation by securing the center jamb
bracket(s), flagangle, and connection of
the vertical track/flagangle.
Repeat for opposite side.
11
Hammer
Tape Measure
Power Drill
7/16” Socket
Driver
7/16” Wrench
1-11/16” TO 1-3/4”
FLAGANGLE
TOP
SECTION
NAIL
TOP SECTION
DOOR WIDTH
+3-3/8” TO 3-1/2”
