18
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:

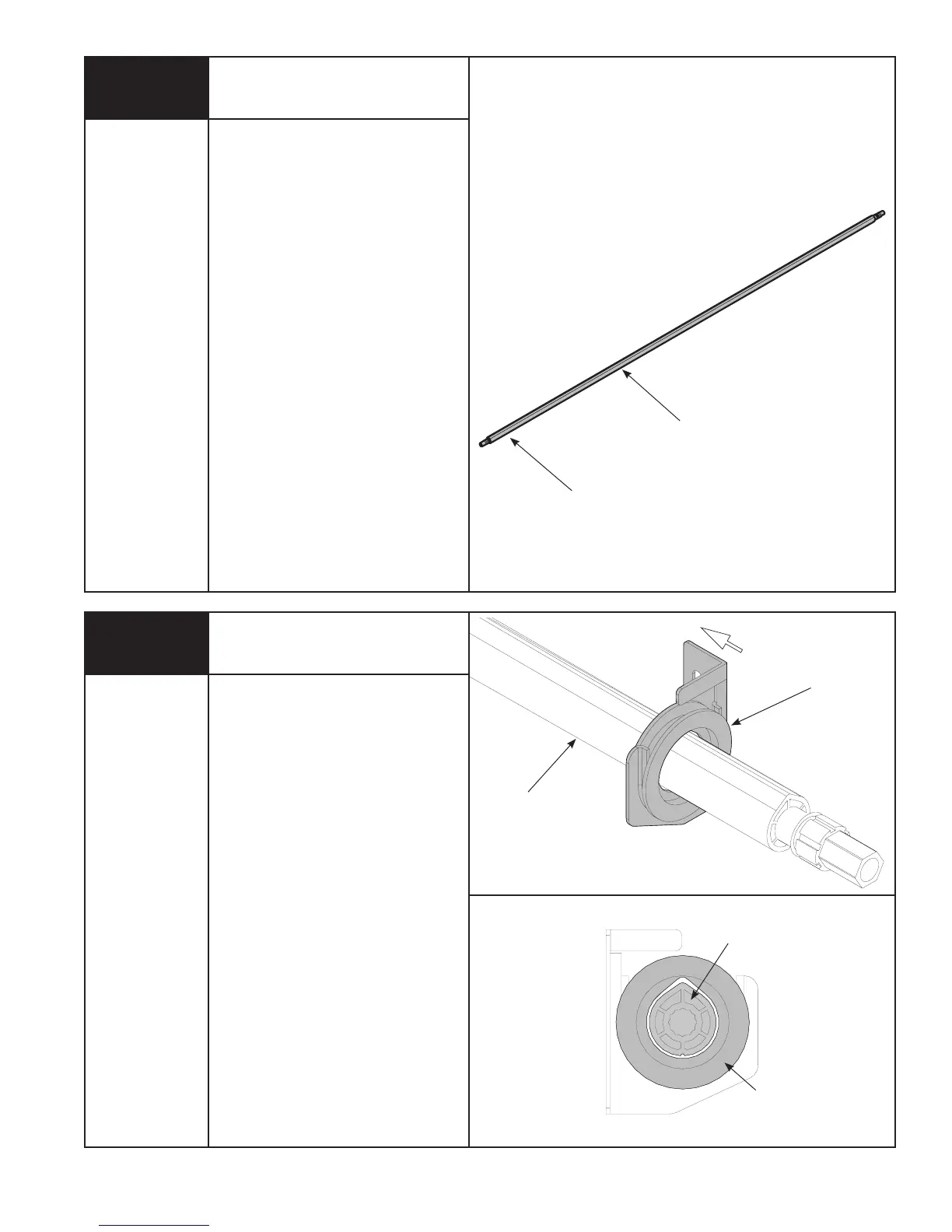

TorqueMaster
®
Spring Tube
TorqueMaster
®
springs come lubricated
and pre-assembled inside the
TorqueMaster
®
spring tube. To install,
lay the TorqueMaster
®
spring tube on
the floor (inside garage) in front of the
door with the labeled end to the left.
LABELED END
TORQUEMASTER
®
SPRING TUBE
None
14
15
Center Bracket Bushing
CENTER
BRACKET
ASSEMBLY
TORQUEMASTER
®
SPRING TUBE
TORQUEMASTER
®
SPRING TUBE
CENTER
BRACKET
BUSHING
None
NOTE: If you are installing the
®
opener
with your garage door, skip this step
and go to your idrive
®
Installation
Instructions and Owner’s Manual.
After completing steps 1-13 of your
idrive
®
Insatallation Instructions and
Owner’s Manual, rear supports will to
be fabricated/installed to support the
horizontal tracks see step 24.
NOTE: If you are not installing the
idrive
®
opener on your garage door, you
must install the center bracket bushing
assembly. Follow these instructions for
non-idrive
®
operated garage doors.
Being cam shaped the center bracket
bushing only fits one way.
Slide the center bracket assembly
towards the center of the
TorqueMaster
®
spring tube, from the
right side as shown.
To Next Page
