Tools Needed:
19
CENTER
BRACKET
BUSHING
ASSEMBLY
(2) 5/16” X 2” HEX
HEAD LAG SCREWS
NOTE: If you are not installing the
idrive
®
opener on your garage door, you
must install the center bracket bushing
assembly, follow these instructions.

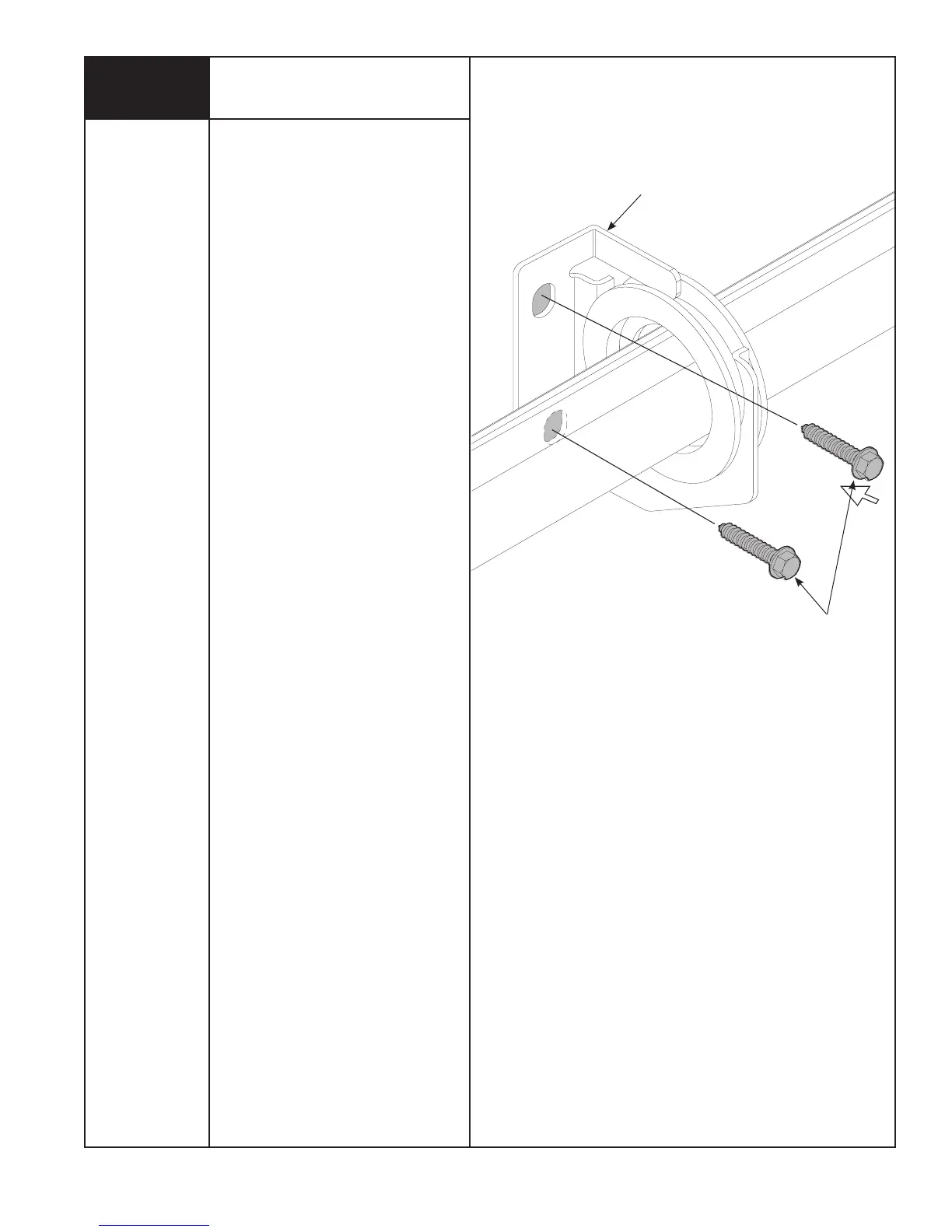

To locate the center bracket, mark the
header halfway between the flagangles
and level the TorqueMaster
®
spring
tube. Drill 3/16” pilot holes into header
for the lag screws. Fasten the metal
bracket to the header using
(2) 5/16” X 2” lag screws.
Securing Center Bracket
Assembly
Power Drill
7/16” Socket
Driver
3//16” Drill Bit
Step Ladder
To Next Page
