Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:

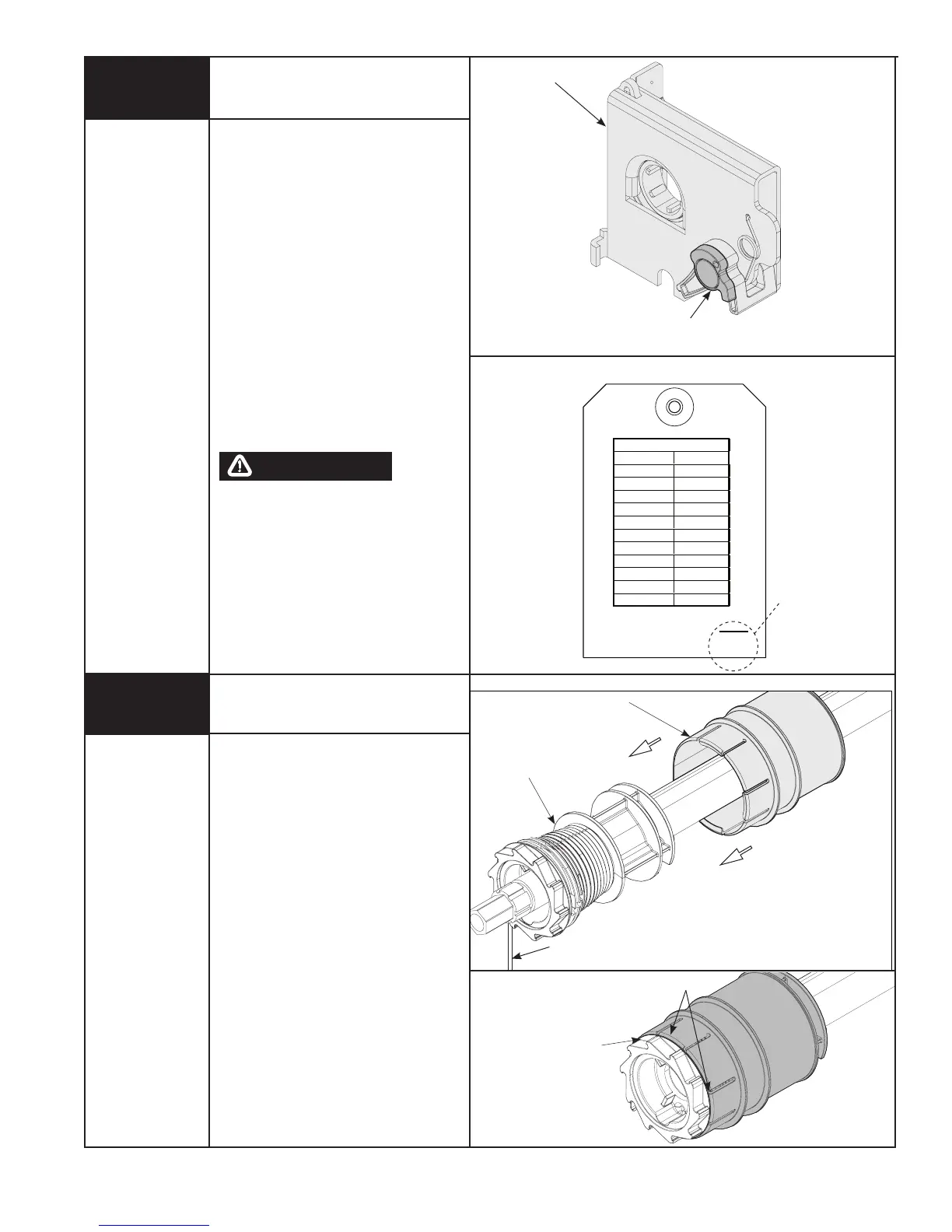

IMPORTANT: MARK NUMBER OF SPRING
TURNS ON TORQUEMASTER
®
PLUS END
BRACKET WARNING TAG.
NOTE: Since total turns to balance door
can deviate from SPRING TURN CHART
values by ± 1/2 turn, adjustments to the
recommended number of turns may be
required AFTER rear hangers assembly is
completed.
IMPORTANT: HOLD THE DOOR DOWN TO
PREVENT IT FROM RISING UNEXPECTEDLY
IN THE EVENT THE SPRING WAS
OVERWOUND AND CAUTIOUSLY REMOVE
VICE CLAMPS FROM VERTICAL TRACKS.
Do not raise the door until horizontal tracks
are secured at the rear, as outlined in step
24.
RAISING DOOR FURTHER CAN
RESULT IN DOOR FALLING AND
CAUSE SEVERE OR FATAL INJURY.
Spring Turns
Door Height Spring Turns
(6’ - 0”) 14
(6’ - 3”) 14 - 1/2
(6’ - 5”) 15
(6’ - 6”) 15
(6’ - 8”) 15 - 1/2
(6’ - 9”) 15 - 1/2
(7’ - 0”) 16
(7’ - 3”) 16 - 1/2
(7’ - 6”) 17
(7’ - 9”) 17 - 1/2
(8’ - 0”) 18
Number of Installed Spring Tu rns
LOCATION FOR
MARKING NUMBER
OF INSTALLED
SPRING TURNS
BACK OF TORQUEMASTER
®
PLUS END BRACKET WARNING TAG
PAWL KNOB IN LOWER
POSITION
END BRACKET
WARNING
Winding Springs Continued...
None
Starting with the left hand side, align
the counterbalance cable with one of
the slots in the drum wrap. Slide the
drum wrap over the drum until the tabs
snap between the cable drum and the
ratchet gear. Repeat for right hand side.
IMPORTANT: RIGHT AND LEFT HAND
ARE ALWAYS DETERMINED FROM
INSIDE THE GARAGE LOOKING OUT.
Drum Wrap Installation
23
DRUM WRAP
(LEFT HAND)
DRUM
(LEFT HAND)
GROOVE
IN DRUM
TABS
COUNTERBALANCE
CABLE
To Next Page
