26

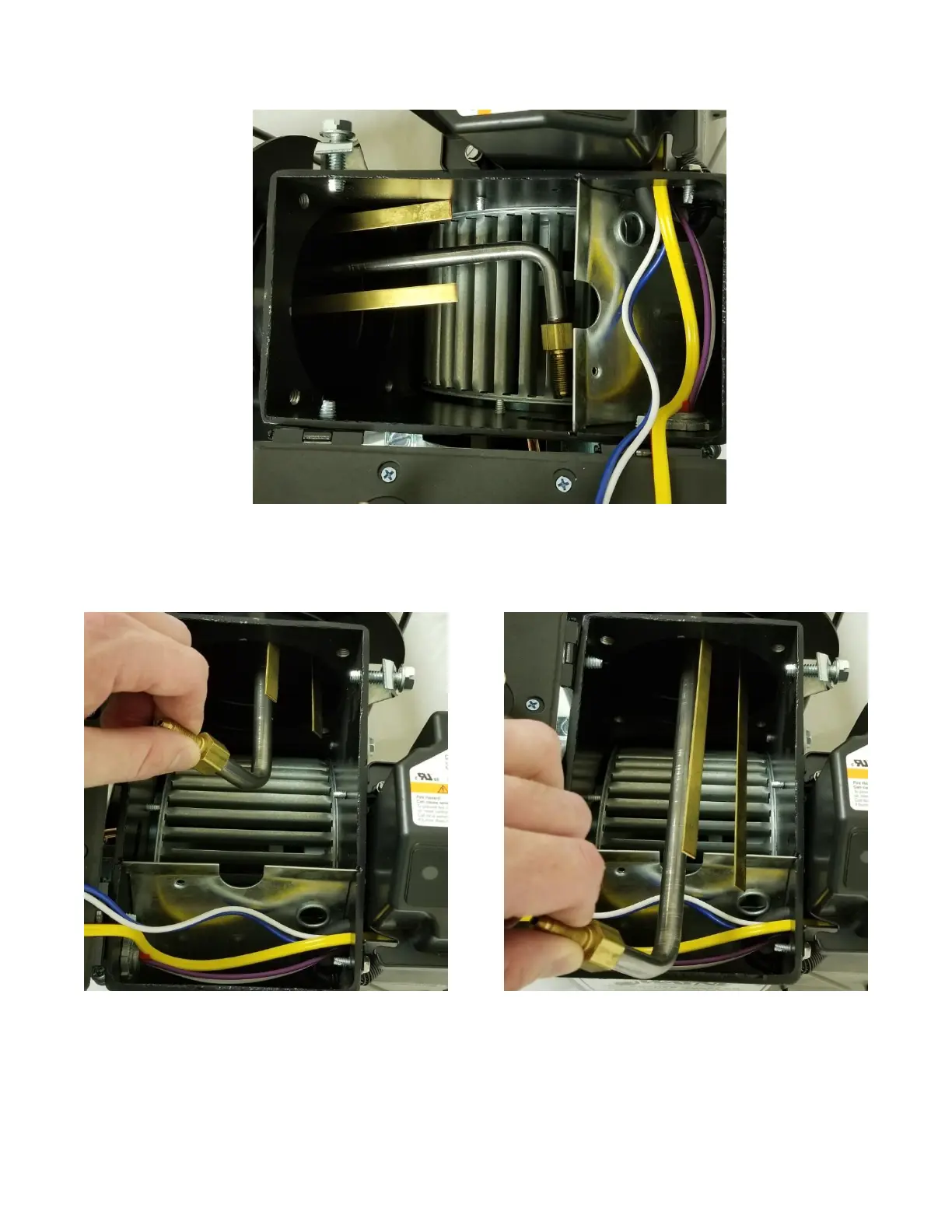

5. Now grasp the rear of the oil gun assembly where the oil line fitting adapter exits through the housing and pull the oil
gun to the right out of the housing slot and the slot plate cover (Figure 12).
Figure 12- Oil Gun Removal
6. While rotating the oil line fitting adapter up at a 45 degree angle, gently lift, but do not force, the entire gun assembly
out of the housing opening (Figure 13).
Figure 13- Oil Gun Removal (Continued)
