25

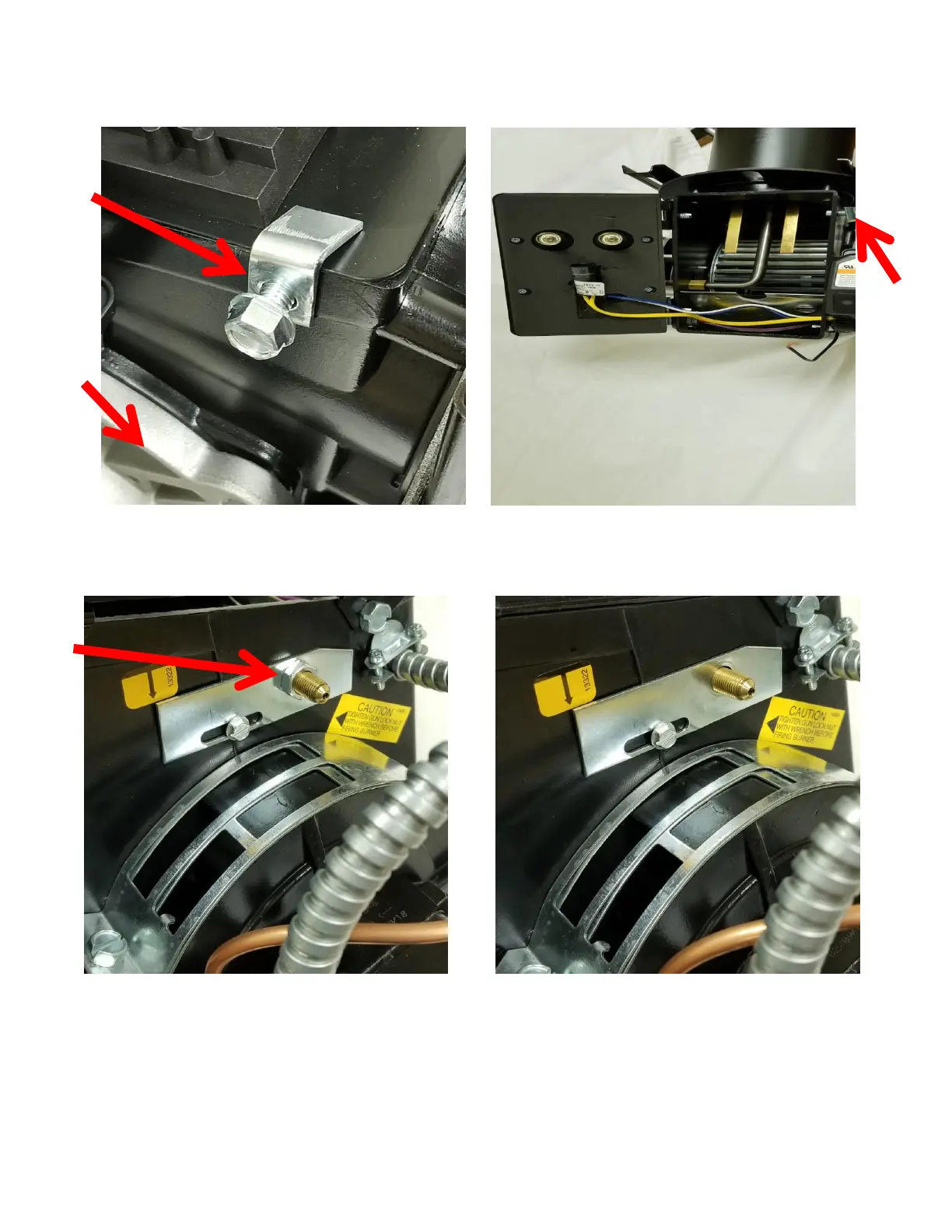

3. Next loosen the ignition device mounting plate clip screw by using a flat head screwdriver, move the hold down clip off
of the mounting plate, this will allow the igniter device assembly to swing open to the left. Leave the plate in the closed
position (Figure 10).
Figure 10- Ignitor mounting plate screw removal
4. Using a 9/16 inch wrench loosen and remove the oil gun assembly locknut (Figure 11).
Figure 11- Oil Gun Lock Nut Removal
