Wayne HSG200 - Page 31

31
PROBE
DIM “A” REF
IGNITER
1 5/8 in (41.3mm)
FLAME SENSOR
1 1/4 in (31.8mm)

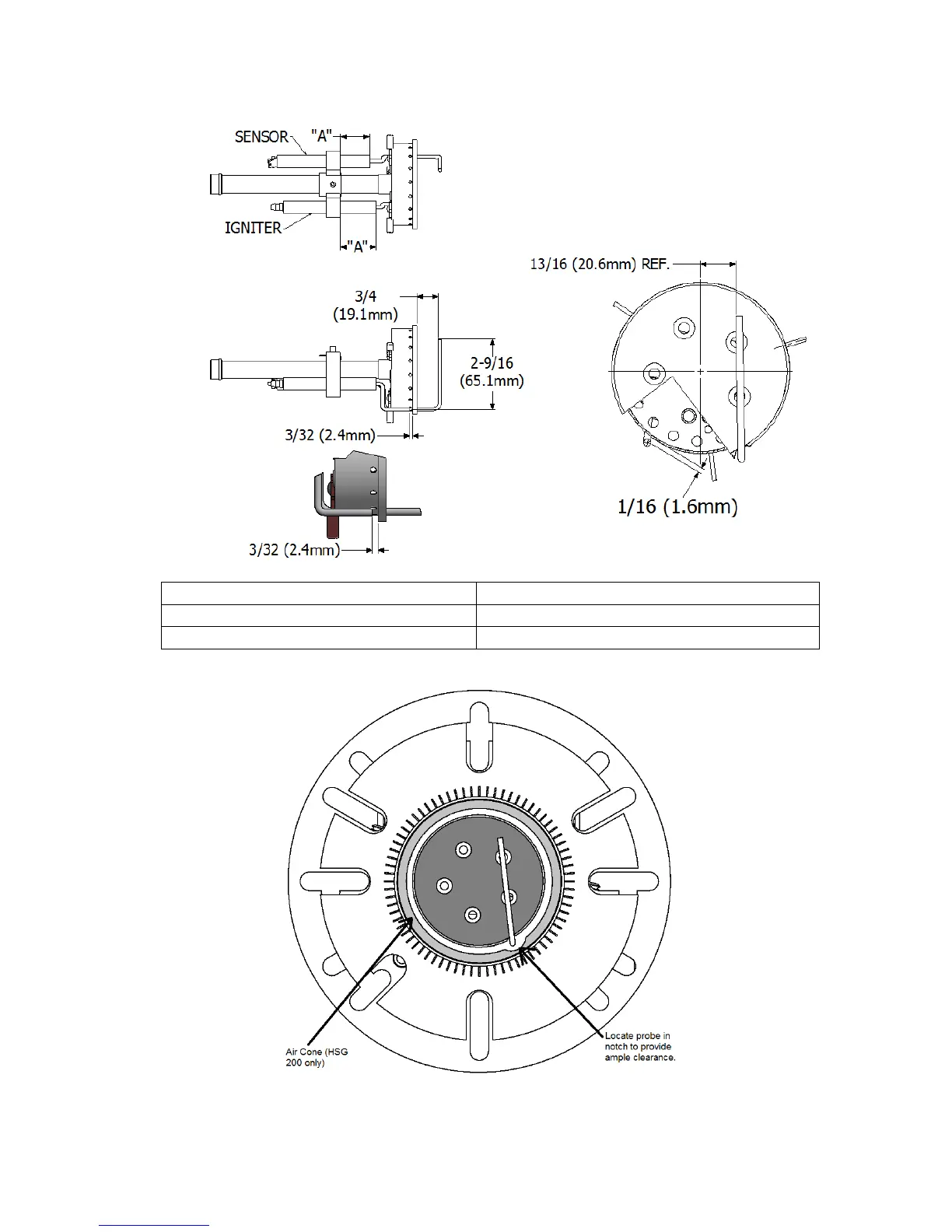

Figure 21: Igniter and Flame Sensor Probe Settings
Figure 22: Burner Face and Flame Sensor Probe Location
