2.5 VIDEO OUTPUT
The Video Output interface includes HD and VIDEO STANDRAD.
Procedure
Step 1 Press the UP or DOWN button to select VIDEO OUTPUT. Press the SET button to open the
VIDEO OUTPUT interface, as shown in Figure 2-6.

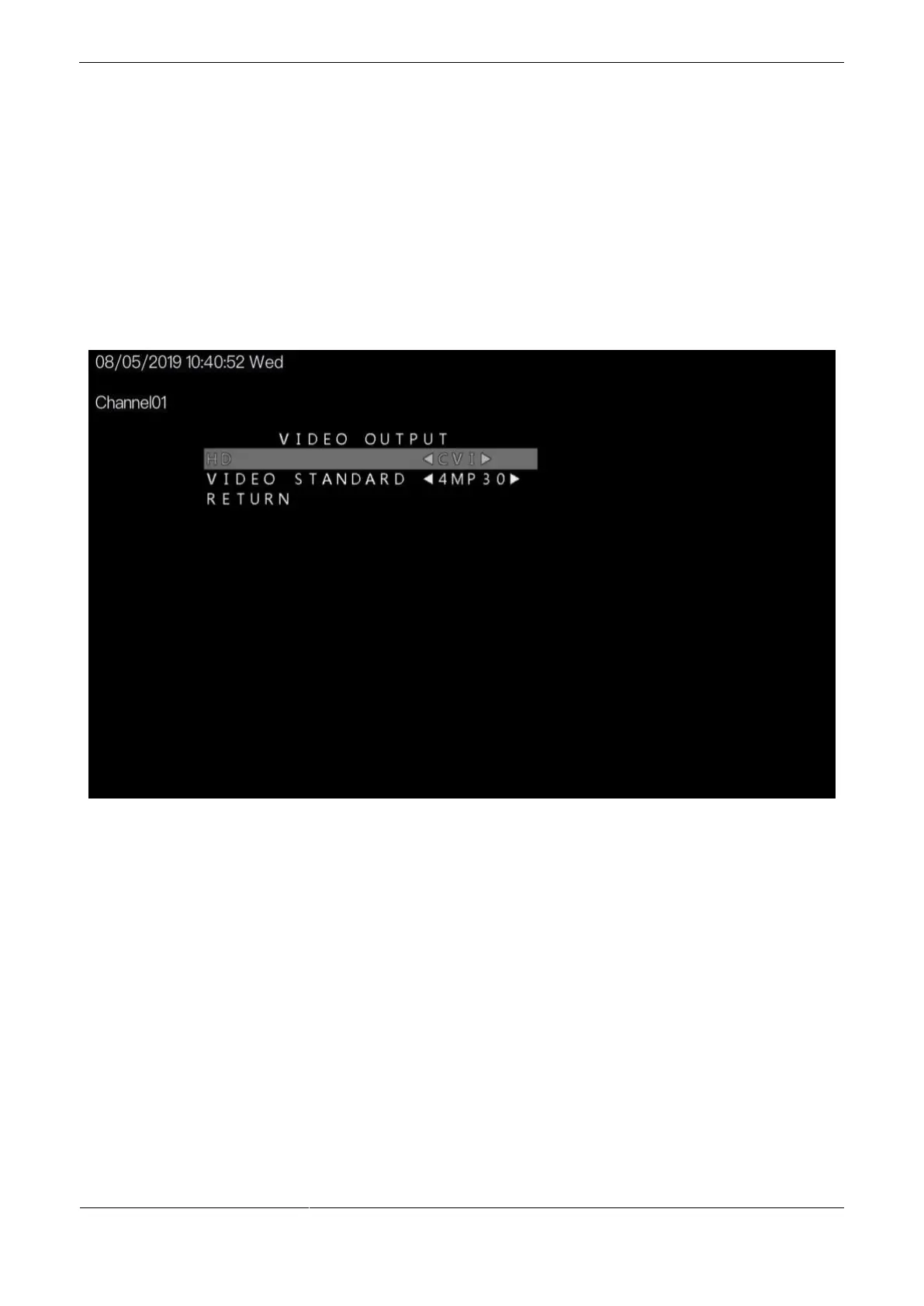

Figure 2-6 Video Setting interface
Step 2 Press the UP or DOWN button to select HD, and press the LEFT or RIGHT button the
interface will show more item REBOOT && APPLY. The options are AHD, CVBS, TVI
and CVI. The default value is AHD.
Step 3 Press the UP or DOWN button to select VIDEO STANDARD and press the LEFT or
RIGHT button to choose. When the HD mode is CVBS, the video standard modes are PAL
and NTSC. Other HD modes, video standard are 4MP 25, 4MP 30 4MP 15, 1080P25 and
1080O30. The default value is 4MP 25. Switch the standard the screen will show APPLY
&REBOOT. Press the SET to apply standard.
Step 4 Press the UP or DOWN button to select RETURN and press the SET return to the OSD
main menu interface.
2.6 LANGUAGE
Press the UP or DOWN button to select LANGUAGE, and press the LEFT or RIGHT button to set
this parameter. Supports 3 languages, English, Chinese, Traditional Chinese.
