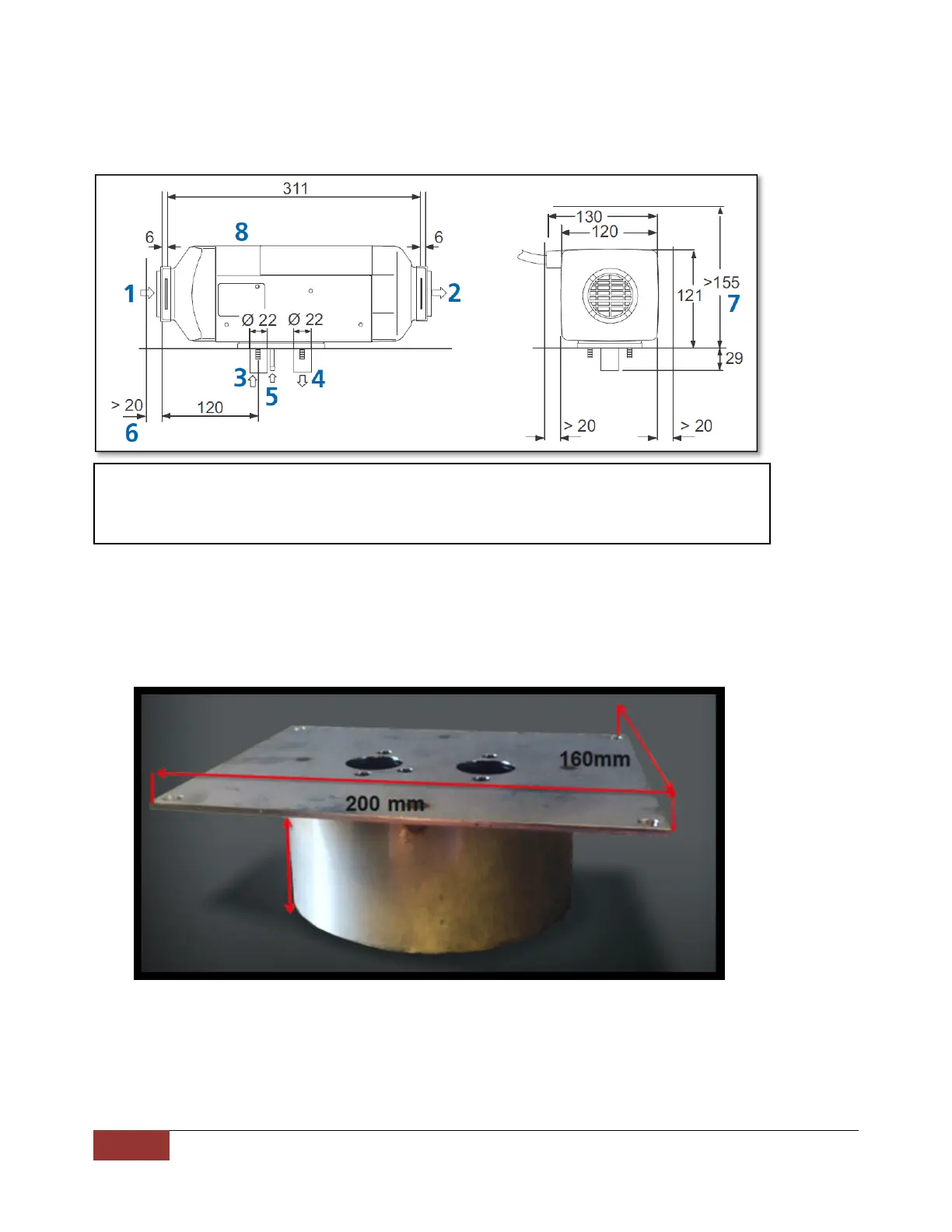

1Heater&FloorMountingBracketDimensions 
Note:All
dimensionsin
millimetres

1HeatingAirInlet 5FuelInlet
2HeatingAirOutlet 6SpaceRequirementforHeatingAirInlet
3CombustionAirInlet 7SpaceRequirementforInstallation&RemovalofHeater
4ExhaustGasOutlet 8CableOutlet(OptionalRight orLeft)


FloorMountingBracket


Fig3
Fig4
50mm 
