Webasto DBW 2016 Installation Instructions

DBW 2010 / 2016 Electrical connections
45

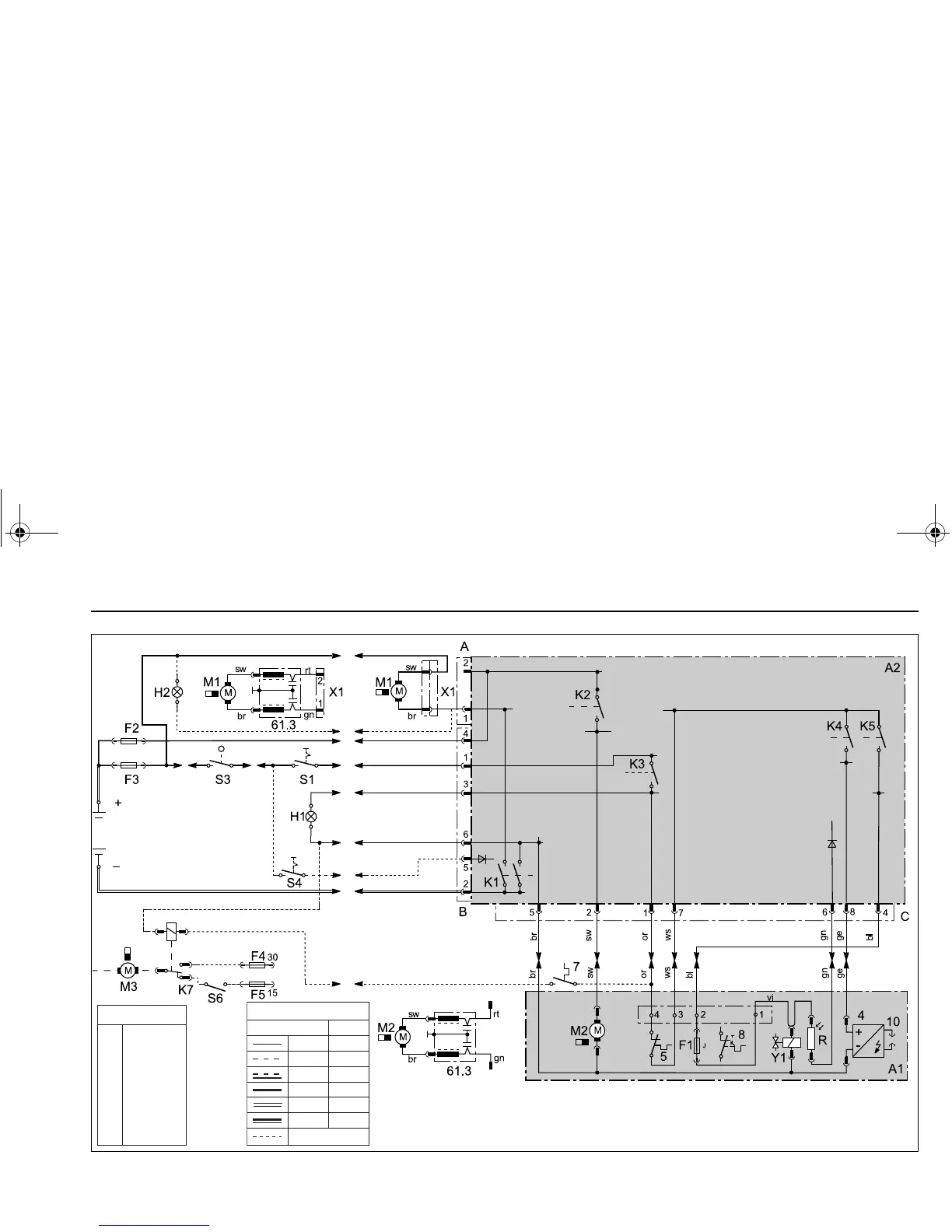

Fig. 11: System circuit for DBW 2010 with control unit 1553 and switch, see legend on page 44
Cable colours
bl
br
ge
gn
gr
or
rt
sw
vi
ws
blue
brown
yellow
green
grey
orange
red
black
violet
white
Cable cross-sections
Vehicle’s own cable
< 7.5 m
7.5 m–15 m
0.75 mm² 1.0 mm²
0.75 mm² 1.0 mm²
1.0 mm² 1.5 mm²
1.5 mm² 2.5 mm²
2.5 mm² 4.0 mm²
4.0 mm² 6.0 mm²
