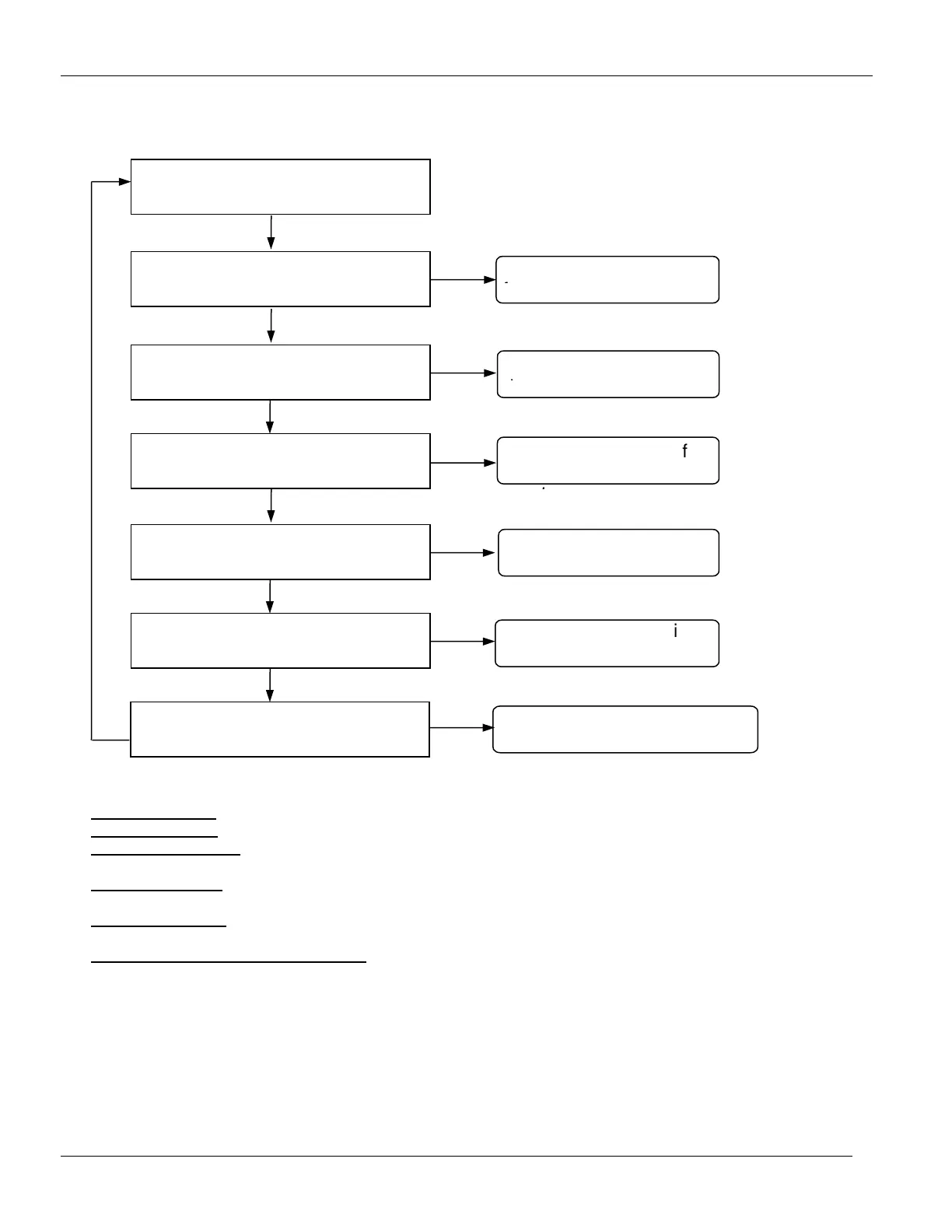

Figure 5.7. Top Level Menu for Advanced Features
1. Charge Event Log - Allows you to scroll through the data from the last 200 charge events.
2. Fault/Warning Log - Allows you to scroll through the last 100 fault or warning events.
3. Charger configuration - A programming mode for setting the date and time, modifying charge algorithms, setting
the equalization schedule, and controlling charge times. Requires an access code to enter this mode.
4. BMID Data Review - Lists all of the BMID parameters for the unit(s) presently connected or charging, plus all of
the stored charge history and equalization data.
5. BMID Configuration - A programming mode for modifying the BMID parameters of the unit(s) presently
connected. Requires an access code to enter this mode.
6. Display Application Version Information – Allows user to view software version and hardware configuration
information.
ANY STATUS OR
CHARGING SCREEN
Charge Event Log
Fault/Warning Log
Charger
Configuration
SELECT
SELECT
BMID Data
Review
BMID
Configuration
SELECT
SELECT
SELECT
ENTER
Review charge data
f
the last 200 charge
t
Change charger
config
.
Requires Access
d
Change BMID
config
.
Requires Access code
Review data from the
lt
100 fault or warning events
Review data for batteries
currently connected
S
E
L
E
C
T
1
3
4
2
ENTER
ENTER
ENTER
5
ENTER
6
Display Application
Version Information
ENTER
Review Application
Configuration and S/W
